Pfeiffer HiPace 80 - NEW

Name: Pfeiffer HiPace 80 - NEW
Brand: Pfeiffer
SKU: NEW_HiPace80

Be the first to review this product

Call for Price

In stock

SKU

NEW_HiPace80

Request For Quote

Weight	5.29 lbs
Pumping Speed	67 l/s
Ultimate Pressure	< 1 x 10^-7 mbar

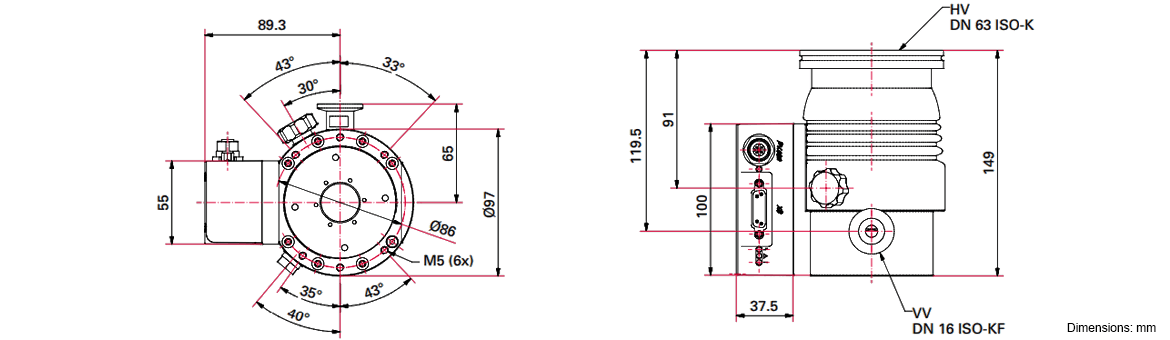

Dimensions

Description

Pfeiffer Vacuum HiPace 80 Turbomolecular Pump - NEW

Features include:

Compact design for minimum footprint
High pumping speed and maximum compression for all gases
Integrated drive electronics, suitable for industrial environments - Protection class IP54 Semi S2 and UL/CSA certification
Maximum reliability through monitoring of operating data

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Bearing	Hybrid
Compression ratio
Ar	> 1 x 10¹¹
H₂	1.4 x 10⁶
He	1.3 x 10⁸
N₂	> 1 x 10¹¹
Cooling method, optional	Air / water
Cooling method, standard	Convection
Cooling water consumption	75 l/h
Cooling water temp.	5-25°C / 41-77°F / 278-298°K
Electric drive unit	with TC 110
Flange (in)	DN 63 ISO-K
Flange (out)	DN 16 ISO-KF/G ^1/4"
Forevacuum max. for N₂	22 hPA / 16.5 Torr / 22 mbar
Gas throughput at full rotational speed for Ar	0.54 hPa l/s / 0.41 Torr l/s / 0.54 mbar l/s
Gas throughput at full rotational speed for H₂	15.3 hPa l/s / > 11.47 Torr l/s / 15.3 mbar l/s
Interfaces	RS-485, Remote
Mounting orientation	Any
Operating voltage	24 (± 5%) V DC
Permissible magnetic field max.	3.3 mT
Protection category	IP54
Pumping speed
Ar	66 l/s
H₂	48 l/s
He	58 l/s
N₂	67 l/s
Rotation speed ± 2%	90,000 rpm / 90,000 min^-1
Rotation speed variable	50 - 100%
Run-up time	1.7 min
Ult pressure (PNEUROP)	< 1 x 10^-7 hPa / < 7.5 x 10^-8 Torr / < 1 x 10^-7 mbar
Venting connection	G^1/8"
Weight	2.4 kg / 5.29 lbs

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiPace 80 Turbomolecular Pump - NEW

                        (BUSCH P/N)
PMP03943 / PM P03 943 / 2000015653  HiPace 80  TCP 350, DN 63 ISO-K
PMP03944 / PM P03 944 / 2000015657  HiPace 80  TCP 350, DN 63 CF-F
PMP03945 / PM P03 945 / 2000015659  HiPace 80  TCP 350, DN 40 ISO-KF
PMP03940 / PM P03 940               HiPace 80  TC 110, DN 63 ISO-K
PMP03941 / PM P03 941               HiPace 80  TC 110, DN 63 CF-F
PMP03942 / PM P03 942               HiPace 80  TC 110, DN 40 ISO-KF
PMP04260 / PM P04 260               HiPace 80  TC 110, Profibus, DN 63 ISO-K
PMP04261 / PM P04 261               HiPace 80  TC 110, Profibus, DN 63 CF-F
PMP04262 / PM P04 262               HiPace 80  TC 110, Profibus, DN 40 ISO-KF
PMP04263 / PM P04 263               HiPace 80  TC 110 & OPS 70, DN 63 ISO-K
PMP04264 / PM P04 264               HiPace 80  TC 110 & OPS 70, DN 63 CF-F
PMP04265 / PM P04 265               HiPace 80  TC 110 & OPS 70, DN 40 ISO-KF
PMP04266 / PM P04 266               HiPace 80  TC 110 & OPS 70, Profibus, DN 63 ISO-K
PMP04267 / PM P04 267               HiPace 80  TC 110 & OPS 70, Profibus, DN 63 CF-F
PMP04268 / PM P04 268               HiPace 80  TC 110 & OPS 70, Profibus, DN 40 ISO-KF
PMP04390 / PM P04 390               HiPace 80  TC 110, E74, DN 63 ISO-K
PMP04391 / PM P04 391               HiPace 80  TC 110, E74, DN 63 CF-F
PMP04392 / PM P04 392               HiPace 80  TC 110, E74, DN 40 ISO-KF
PMP04393 / PM P04 393               HiPace 80  TC 110, E74 & OPS 70, DN 63 ISO-K
PMP04394 / PM P04 394               HiPace 80  TC 110, E74 & OPS 70, DN 63 CF-F
PMP04395 / PM P04 395               HiPace 80  TC 110, E74 & OPS 70, DN 40 ISO-KF
