Pfeiffer TCP - NEW
Call for Price
In stock
SKU
NEW_TCP

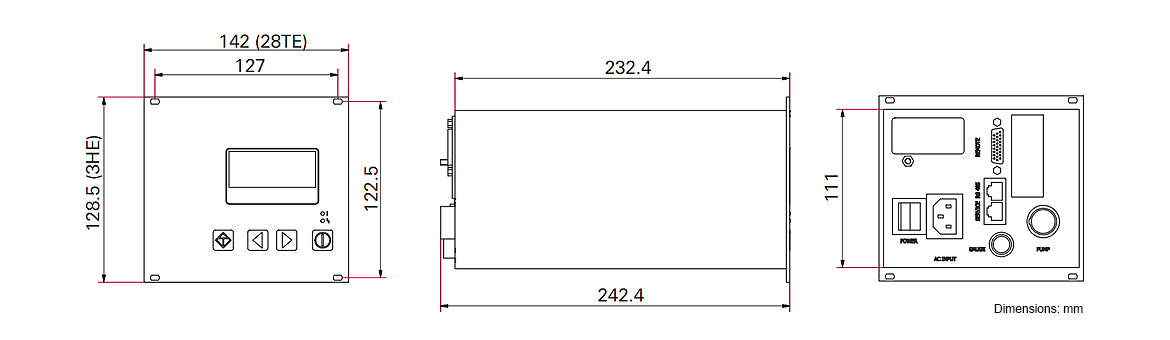

| Height | 128.5 mm |
|---|---|
| Width | 142 mm |
| Length | 232 mm |
| Weight | 6.17-19.84 lbs |
Pfeiffer Vacuum TCP Turbomolecular Pump Controllers - NEW
Turbo Control Power (TCP). External drive units for HiPace pumps via connection cables.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | TCP 350 | TCP 350 PB | TCP 350 DN | TCP 1200 |
|---|---|---|---|---|
| Ambient temperature | 5-40°C / 41-104°F / 278-313 K | |||
| Cable length turbo-TCP max. | 110 m | 100 m | ||
| Frequency | 50/60 Hz | |||
| I/O interfaces | - | RS-485, Profibus | RS-485, DeviceNet | RS-485 |
| Mains requirement: power consumption | 420 VA | 1,150 VA | ||
| Mains requirement: Voltage (range) | 95-265 VAC | 200-240 V (± 10 %) | ||
| Power consumption max. | 420 VA | 1,150 VA | ||
| Power supply | TCP 350 | TCP 1200 | ||
| Protection category | IP 20 | IP 40 | ||
| Weight | 2.8 kg / 6.17 lb | 9 kg / 19.84 lb | ||
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum TCP Turbomolecular Pump Controllers - NEW PMC01740 / PM C01 740 TCP 350 RS-485 PMC01741 / PM C01 741 TCP 350 PB RS-485, Profibus PMC01742 / PM C01 742 TCP 350 DN RS-485, DeviceNet PMC01870 / PM C01 870 TCP 1200 RS-485
