Pfeiffer TPS - NEW

Call for Price

In stock
SKU
NEW_TPS

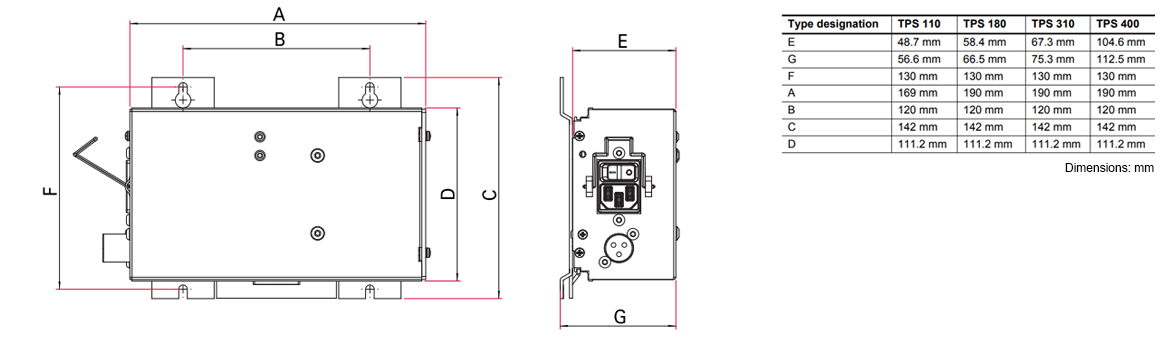

Height 128.5 mm
Width 142 mm
Length 169-190 mm
Weight 1.56-3.84 lbs

Pfeiffer Vacuum TPS Turbomolecular Pump Controllers - NEW

Turbo Power Supply (TPS). Power supplies for wall and standard-rail mounting. Simple integration and Plug and Play-ready. Performance ideally matched to the respective pump model. Satisfies international standards. Mains pack for wall/standard rail fitting.

Turbo Power Supply (TPS). Power supply in the form of a 3HU 19" rack module with front panel; for installation directly in 19" rack systems. Performance ideally matched to the respective HiPace pump model. Plug and Play-ready. Satisfies international standards. Mains pack 19" rack module 3HU with front panel.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specifications TPS 110 TPS 111 TPS 180 TPS 181 TPS 310 TPS 311 TPS 400 TPS 401
Ambient temperature 5-50°C / 41-122°F / 278-323 K
Mains requirement: Frequency (range) 50/60 Hz
Mains requirement: power consumption 130 VA 210 VA 340 VA 450 VA
Mains requirement: Voltage (range) 115-230 (-20-+15%) VAC
Output current 4.6 A 7.5 A 12.5 A 8.4 A
Output voltage 24 (±2%) VDC 48 (±2%) VDC
Power consumption max. 130 VA 210 VA 340 VA 450 VA
Power supply TPS 110 TPS 111 TPS 180 TPS 181 TPS 310 TPS 311 TPS 400 TPS 401
Protection category IP 20
Weight 0.7 kg / 1.54 lb 1 kg / 2.2 lb 1.1 kg / 2.43 lb 1.75 kg / 3.86 lb
Type Label Description Download
Pfeiffer TPS 110 - 401 Series - NEW Operating Instructions Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum TPS Turbomolecular Pump Controllers - NEW

PM061340-T / PM 061 340 -T  TPS 110  wall rail fitting
PM061344-T / PM 061 344 -T  TPS 111  19" rack module
PM061341-T / PM 061 341 -T  TPS 180  wall rail fitting
PM061345-T / PM 061 345 -T  TPS 181  19" rack module
PM061342-T / PM 061 342 -T  TPS 310  wall rail fitting
PM061346-T / PM 061 346 -T  TPS 311  19" rack module
PM061343-T / PM 061 343 -T  TPS 400  wall rail fitting
PM061347-T / PM 061 347 -T  TPS 401  19" rack module
