Pfeiffer TMH 071 - REBUILT
| Weight |
15 lbs |
| Pumping Speed |
33-38 l/s |
| Ultimate Pressure |
1 x 10-10 mbar |

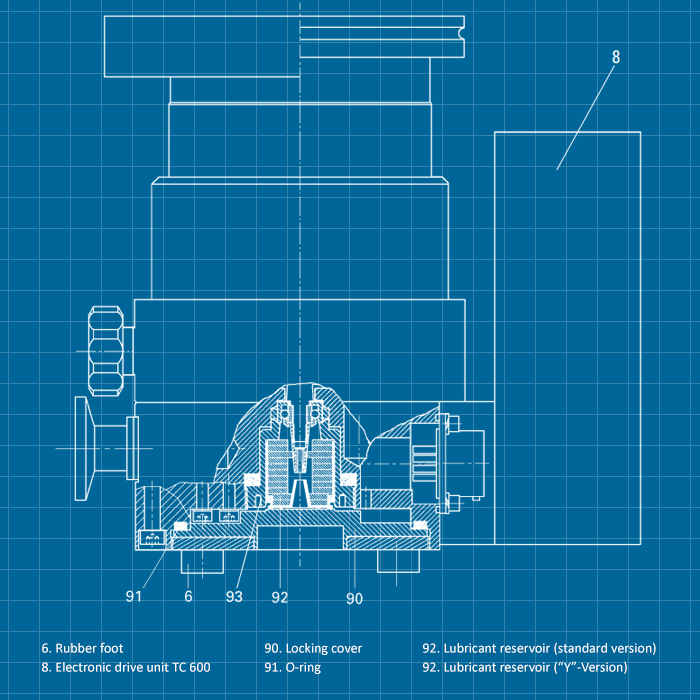

Pfeiffer Vacuum TMH 071 Turbomolecular Pump - REBUILT
Will ship with the controller. Contact us for our used surplus: Pfeiffer Vacuum stations. Let us know the part number that you want to match.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

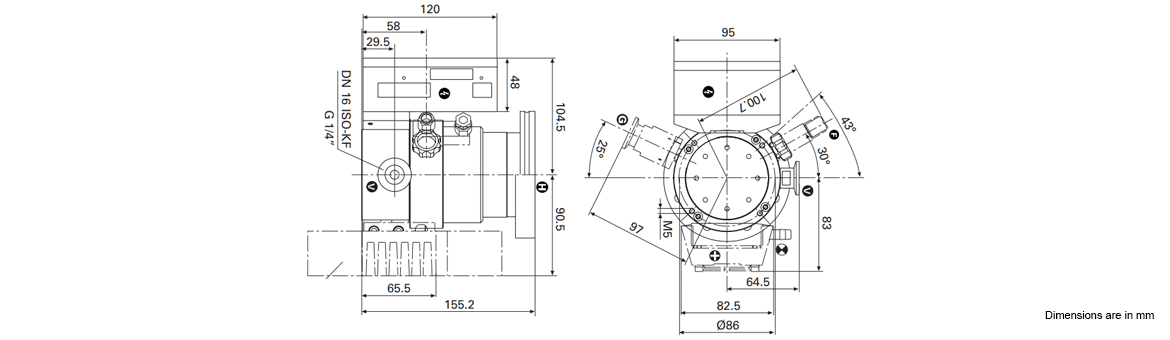

| Specifications |
TMH 071 P / Y P |
TMU 071 P / Y P |
| Inlet |
DN 40 ISO-KF |
DN 63 ISO-K |
DN 63 CF-F |
| Outlet |
DN 16 ISO-KF/G 1/4" |
| Venting connection |
G 1/8” |
| Nominal rotation speed |
1,500 Hz (90,000 l/min) |
| Standby rotation speed |
1,000 Hz (60,000 l/min) |
| Start-up time |
2.5 min |
| Noise level |
< 45 dB(A) |
| Final pressure, backing pump |
< 10 mbar |
| Integral leak rate |
< 2 x 108 mbar |
| Maximum permissible rotor temperature |
80°C |
| Permissible heat radiation power |
4 W |
| Volume flow rate for: |
| N2 |
33 l/s |
59 l/s |
| He |
39 l/s |
50 l/s |
| H2 |
32 l/s |
42 l/s |
| Compression ratio for: |
| N2 |
> 1011 |
| He |
6 x 106 |
| H2 |
> 105 |
| Maximum fore-vacuum pressure |
| N2 |
18 mbar |
| He |
18 mbar |
| H2 |
12 mbar |
| Maximum gas throughput at nominal rotation speed 2) |
| w/ water cooling |
| N2 |
1.3 mbar l/s |
| He |
2.7 mbar l/s |
| w/ air cooling 3) |
| N2 |
0.58 mbar l/s |
| Maximum gas throughput at intake pressure of 0.1 mbar 4) |
| w/ water cooling |
| N2 |
2 mbar l/s |
| He |
3 mbar l/s |
| H2 |
2 mbar l/s |
| Vertex power characteristics line 5) |
| A |
80 W / 1,500 Hz |
| B |
80 W / 1,500 Hz |
| C |
60 W / 1,500 Hz |
| D |
80 W / 1,300 Hz |
| Final pressure 6) |
| w/ diaphragm vacuum pump |
< 1 x 10-7 mbar |
< 5 x 10-10 mbar |
| w/ rotary vane vacuum pump |
< 1 x 10-7 mbar |
< 1 x 10-8 mbar |
| Lubricant |
TL 011 |
| Max cooling water consumption w/ water at 15°C 6) |
100 l/h |
| Cooling water temperature |
5-25°C |
| Permissible ambient temperature w/ air cooling |
0-40°C |
| Heating power consumption |
32 W |
| Weight |
2.8 kg |
3.8 kg |
| Permissible magnetic field |
3 mT |
| Operating voltage |
24 ± 5% VDC |
| Duration 7) - / max. current consumption |
4.1 / 4.6 A |
| Duration 7) - / max. power |
100 / 110 W |
| Fuse, internal |
T8A/250 |
| Protection class 8) |
IP 30 |
Specifications
| Type |
Label |
Description |
Download |
|
|
Pfeiffer TMH/TMU 071 - REBUILT |
Operating Instructions |
Download
|
