Pfeiffer TMH 1001 P - REBUILT
| Weight |
84 lbs |
| Pumping Speed |
920 l/s |
| Ultimate Pressure |
0.00000001 mbar |

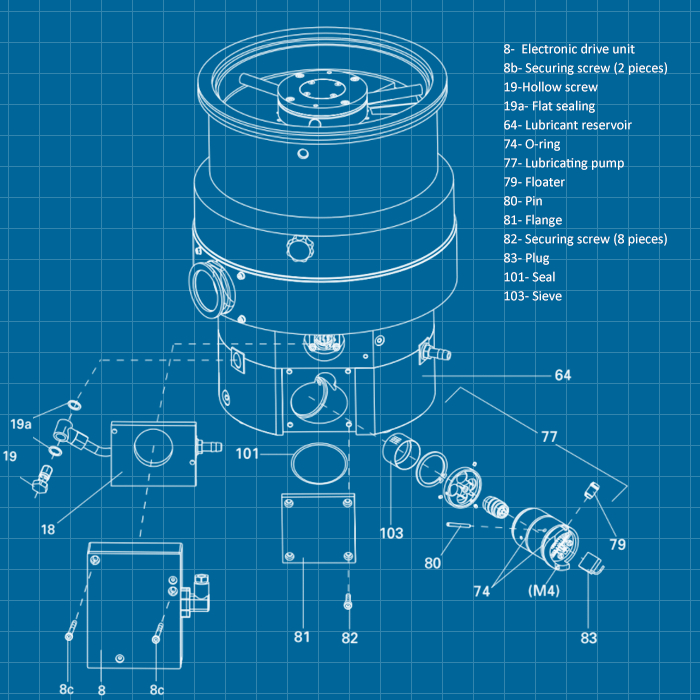

Pfeiffer Vacuum TMH 1001 P Turbomolecular Pump - REBUILT
Contact us for our used surplus: Pfeiffer Vacuum stations. Let us know the part number that you want to match.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

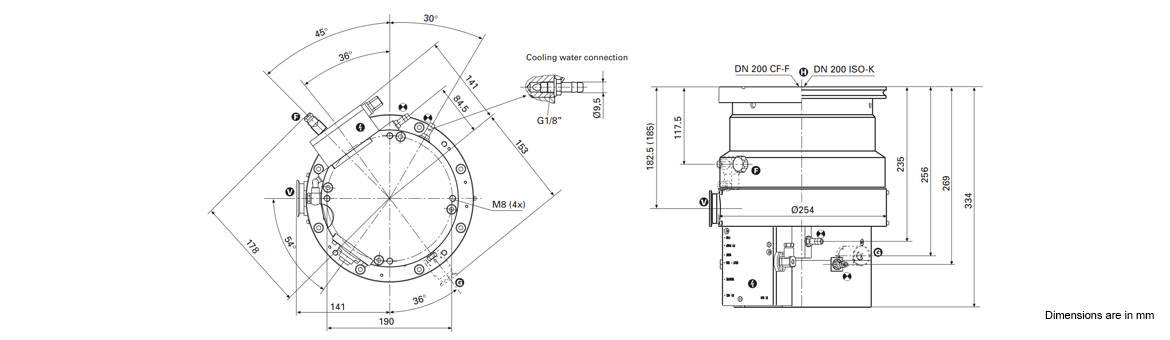

| Specifications |
TMH/TMU 1001 P |
TMH/TMU 1001 P C H (T) |
| Inlet |
DN 200 ISO-K
DN 200 CF-F |
| Outlet |
DN 40 ISO-KF |
| Venting connection |
G 1/8” |
| Nominal rotation speed |
39,600 l/min |
| Standby rotation speed |
26,400 l/min |
| Start-up time (up to 90% of the nominal rotation speed fore-vacuum pressure ≤ 0.1 mbar) |
5 min |
| Noise level |
< 50 dB(A) |
| Final pressure, backing pump |
< 5 mbar |
| Maximum permissible rotor temperature |
120°C |
| Permissible heat radiation power |
20 W |
| Volume flow rate for: |
| N2 |
920 l/s |
| He |
920 l/s |
| H2 |
720 l/s |
| Compression ratio for: |
| N2 |
> 1012 |
> 2 x 108 |
| He |
> 1 x 108 |
1.5 x 106 |
| H2 |
2 x 106 |
4 x 104 |
| Maximum fore-vacuum pressure |
| N2 |
18 mbar |
10 mbar |
| He |
17 mbar |
10 mbar |
| H2 |
8 mbar |
6 mbar |
| Maximum gas throughput 1. 2. 3. |
| w/ HV pressure of 0.1 mbar |
| N2 |
20 mbar l/s |
| Ar |
- |
22 mbar l/s |
| w/ nominal rotation speed (water cooling) |
| N2 |
9 mbar l/s |
14 mbar l/s |
| Ar |
5 mbar l/s |
8 mbar l/s |
| w/ voltage range 90 - 132 VAC |
| N2 |
8 mbar l/s |
8.5 mbar l/s |
| Vertex power characteristics lines 4. |
| A |
495 W / 660 Hz |
| B |
533 W / 447 Hz |
| C |
470 W / 660 Hz |
| D |
495 W / 413 Hz |
| Final pressure 5. |
| w/ diaphragm vacuum pump |
< 1 x 10-8 mbar |
| w/ rotary vane vacuum pump |
< 5 x 10-10 mbar |
| w/ UniDryTM |
| Lubricant |
| Type 6. |
F3 |
| Filling volume |
65 cm3 |
| Cooling water consumption w/ water at 15 ÞC 7. |
100 l/h |
| Cooling water temperature |
5-25°C |
| Permissible ambient temperature w/ air cooling |
0-35°C |
| Power consumption |
| Casing heating unit |
140 W |
| TMS heating |
- |
1,000 W |
| Weight |
36 / 38 kg |
| Permissible magnetic field |
3 mT |
| Connection voltage |
140 ± 5% VDC |
| Current consumption |
4.3 A |
| Power |
600 W |
| Protection class 8. |
IP 30 |
| Relative humidity of air |
5 - 85% non condensing |
Specifications
- Measured with a rotary vane vacuum pump > 5m3/h
| Type |
Label |
Description |
Download |
|
|
Pfeiffer TMH/TMU 1001 P/PC - REBUILT |
Operating Instructions |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Vacuum TMH 1001 P Turbomolecular Pump - REBUILT
PMP03300 / PM P03 300 TMH 1001 P DN 200 ISO-K
PMP03301 / PM P03 301 TMH 1001 P DN 200 ISO-K
