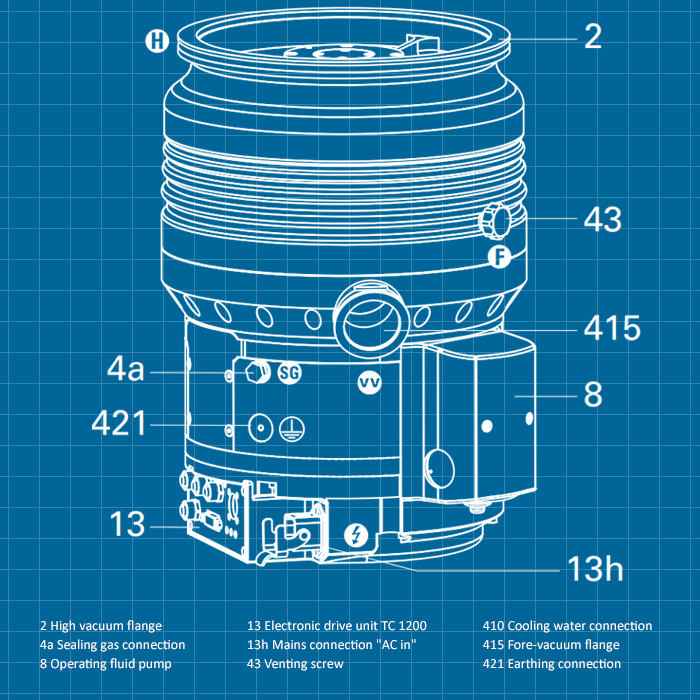

Pfeiffer HiPace 1200 - NEW

Be the first to review this product

Call for Price

In stock
SKU
NEW_HiPace1200
Request For Quote
Add to Wish List Add to Compare
Weight 66.14 lbs
Pumping Speed 1,250 l/s
Ultimate Pressure 1 x 10-7 mbar

Description

Pfeiffer Vacuum HiPace 1200 Turbomolecular Pump - NEW

Features include:

  • High pumping speeds for both light and heavy gases
  • High process integrity, resistant to particulate matter
  • High gas throughputs, even for heavy gases

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification
Bearing Hybrid
Compression ratio
    Ar > 1 x 108
    H2 6 x 103
    He 2 x 105
    N2 > 1 x 1011
Cooling method, standard Water
Cooling water consumption 100 l/h
Cooling water temp. 15-35°C / 59-95°F / 288-308°K
Electric drive unit w/ TC 1200

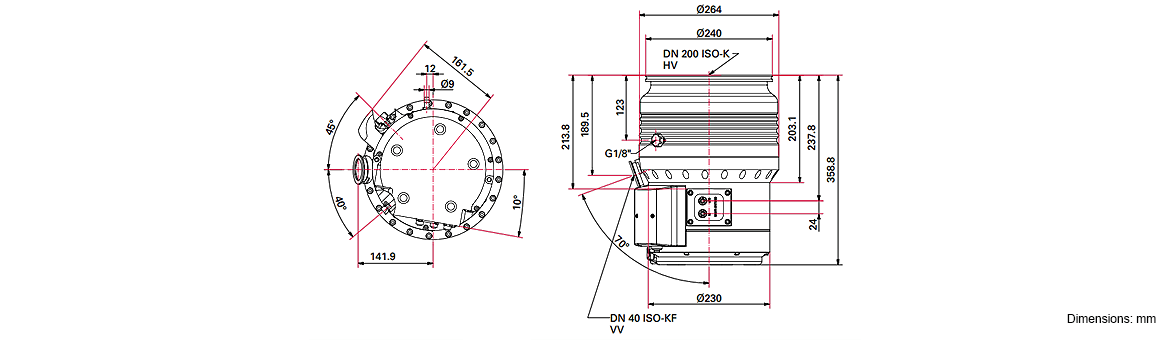

Flange (in) DN 200 ISO-K
Flange (out) DN 40 ISO-KF/G 1/4"
Forevacuum max. for N2 2 hPA / 1.5 Torr / 2 mbar
Gas throughput at full rotational speed
    Ar 11 hPa l/s / > 8.25 Torr l/s / 11 mbar l/s
    H2 > 30 hPa l/s / > 22.5 Torr l/s / > 30 mbar l/s
    He > 30 hPa l/s / > 22.5 Torr l/s / > 30 mbar l/s
    N2 20 hPa l/s / 15 Torr l/s / > 20 mbar l/s
Integrated power supply Yes
Interfaces RS-485, Remote
Mounting orientation Standard
Operating voltage 100-120/200-240 VAC, 50/60 Hz
Permissible magnetic field max. 6 mT
Protection category IP54
Pumping speed
    Ar 1,200 l/s
    H2 1,100 l/s
    He 1,300 l/s
    N2 1,250 l/s
Rotation speed ± 2% 37,800 rpm / 37,800 min-1
Rotation speed variable 50 - 100%
Run-up time 2.5 min
Ult pressure (PNEUROP) < 1 x 10-7 hPa / < 7.5 x 10-8 Torr / < 1 x 10-7 mbar
Venting connection G1/8"
Weight 27 kg / 59.52 lbs

Specifications

Digital Manuals
Type Label Description Download
Pfeiffer HiPace 1200 - NEW Operating Instructions Download
RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiPace 1200 Turbomolecular Pump - NEW

                        (BUSCH P/N)
PMP05210 / PM P05 210 / 2000014712  HiPace 1200  TCP 1200, DN 200 ISO-K, G 1/8"
PMP05211 / PM P05 211 / 2000014714  HiPace 1200  TCP 1200, DN 200 ISO-F, G 1/8"
PMP05212 / PM P05 212 / 2000014716  HiPace 1200  TCP 1200, DN 200 CF-F, G 1/8"
PMP06000 / PM P06 000 / 2000014189  HiPace 1200  TC 1200, DN 200 ISO-K, G 1/8"
PMP06001 / PM P06 001 / 2000014190  HiPace 1200  TC 1200, DN 200 ISO-F, G 1/8"
PMP06002 / PM P06 002 / 2000014192  HiPace 1200  TC 1200, DN 200 CF-F, G 1/8"
PMP06003 / PM P06 003 / 2000014193  HiPace 1200  TC 1200, Profibus, DN 200 ISO-K
PMP06004 / PM P06 004 / 2000014194  HiPace 1200  TC 1200, Profibus, DN 200 ISO-F
PMP06005 / PM P06 005 / 2000014195  HiPace 1200  TC 1200, Profibus, DN 200 CF-F
PMP06006 / PM P06 006 / 2000014196  HiPace 1200  TC 1200, E74, DN 200 ISO-K
PMP06007 / PM P06 007 / 2000222267  HiPace 1200  TC 1200, E74, DN 200 ISO-F
PMP06008 / PM P06 008 / 2000014197  HiPace 1200  TC 1200, E74, DN 200 CF-F
PMP06010 / PM P06 010 / 2000014198  HiPace 1200 U  TC 1200, DN 200 ISO-K
PMP06011 / PM P06 011 / 2000014199  HiPace 1200 U  TC 1200, DN 200 ISO-F, DN 40
PMP06012 / PM P06 012 / 2000014200  HiPace 1200 U  TC 1200, DN 200 CF-F
PMP06013 / PM P06 013 / 2000014201  HiPace 1200 U  TC 1200, Profibus, DN 200 ISO-K
PMP06014 / PM P06 014 / 2000014202  HiPace 1200 U  TC 1200, Profibus, DN 200 ISO-F
PMP06015 / PM P06 015 / 2000014203  HiPace 1200 U  TC 1200, Profibus, DN 200 CF-F
PMP06016 / PM P06 016 / 2000014204  HiPace 1200 U  TC 1200, E74, DN 200 ISO-K
PMP06017 / PM P06 017 / 2000014205  HiPace 1200 U  TC 1200, E74, DN 200 ISO-F
PMP06018 / PM P06 018 / 2000080936  HiPace 1200 U  TC 1200, E74, DN 200 CF-F
PMP06020 / PM P06 020 / 2000014206  HiPace 1200 C  TC 1200, DN 200 ISO-K, corrosive
PMP06021 / PM P06 021 / 2000014207  HiPace 1200 C  TC 1200, DN 200 ISO-F, corrosive, AC
PMP06022 / PM P06 022 / 2000014208  HiPace 1200 C  TC 1200, DN 200 CF-F, corrosive
PMP06023 / PM P06 023 / 2000014209  HiPace 1200 C  TC 1200, Profibus, DN 200 ISO-K, corrosive
PMP06024 / PM P06 024 / 2000014210  HiPace 1200 C  TC 1200, Profibus, DN 200 ISO-F, RS485, corrosive
PMP06025 / PM P06 025 / 2000014211  HiPace 1200 C  TC 1200, Profibus, DN 200 CF-F, corrosive
PMP06026 / PM P06 026 / 2000014212  HiPace 1200 C  TC 1200, E74, DN 200 ISO-K, corrosive
PMP06027 / PM P06 027 / 2000014213  HiPace 1200 C  TC 1200, E74, DN 200 ISO-F, corrosive
PMP06028 / PM P06 028 / 2000014214  HiPace 1200 C  TC 1200, E74, DN 200 CF-F, corrosive
PMP06030 / PM P06 030 / 2000014215  HiPace 1200 UC  TC 1200, DN 200 ISO-K, corrosive, DN 40
PMP06031 / PM P06 031 / 2000014216  HiPace 1200 UC  TC 1200, DN 200 ISO-F, corrosive, DN 40
PMP06032 / PM P06 032 / 2000014217  HiPace 1200 UC  TC 1200, DN 200 CF-F, corrosive, DN 40
PMP06033 / PM P06 033 / 2000014218  HiPace 1200 UC  TC 1200, Profibus, DN 200 ISO-K, corrosive
PMP06034 / PM P06 034 / 2000014219  HiPace 1200 UC  TC 1200, Profibus, DN 200 ISO-F, corrosive
PMP06035 / PM P06 035 / 2000014220  HiPace 1200 UC  TC 1200, Profibus, DN 200 CF-F, corrosive
PMP06036 / PM P06 036 / 2000014221  HiPace 1200 UC  TC 1200, E74, DN 200 ISO-K, corrosive
PMP06037 / PM P06 037 / 2000014222  HiPace 1200 UC  TC 1200, E74, DN 200 ISO-F, corrosive
PMP06038 / PM P06 038 / 2000222268  HiPace 1200 UC  TC 1200, E74, DN 200 CF-F, corrosive
PMP03910 / PM P03 910               HiPace 1200  TC 1200, DN 200 ISO-K
PMP03911 / PM P03 911               HiPace 1200  TC 1200, DN 200 ISO-F
PMP03912 / PM P03 912               HiPace 1200  TC 1200, DN 200 CF-F
PMP03913 / PM P03 913               HiPace 1200  TC 1200, DN 200 ISO-K, upside down version
PMP03914 / PM P03 914               HiPace 1200  TC 1200, DN 200 ISO-F, upside down version
PMP03915 / PM P03 915               HiPace 1200  TC 1200, DN 200 CF-F, upside down version
PMP03916 / PM P03 916               HiPace 1200  TC 1200, DN 200 ISO-K, corrosive
PMP03917 / PM P03 917               HiPace 1200  TC 1200, DN 200 ISO-F, corrosive
PMP03918 / PM P03 918               HiPace 1200  TC 1200, DN 200 ISO-K, upside down version corrosive
PMP03919 / PM P03 919               HiPace 1200  TC 1200, DN 200 ISO-F, upside down version corrosive
PMP04110 / PM P04 110               HiPace 1200  TC 1200, Profibus, DN 200 ISO-K
PMP04111 / PM P04 111               HiPace 1200  TC 1200, Profibus, DN 200 ISO-F
PMP04112 / PM P04 112               HiPace 1200  TC 1200, Profibus, DN 200 CF-F
PMP04113 / PM P04 113               HiPace 1200  TC 1200, Profibus, DN 200 ISO-K, upside down version
PMP04114 / PM P04 114               HiPace 1200  TC 1200, Profibus, DN 200 ISO-K, upside down version
PMP04115 / PM P04 115               HiPace 1200  TC 1200, Profibus, DN 200 CF-F, upside down version
PMP04116 / PM P04 116               HiPace 1200  TC 1200, Profibus, DN 200 ISO-K
PMP04117 / PM P04 117               HiPace 1200  TC 1200, Profibus, DN 200 ISO-F
PMP04118 / PM P04 118               HiPace 1200  TC 1200, Profibus, DN 200 ISO-K, upside down version corrosive
PMP04119 / PM P04 119               HiPace 1200  TC 1200, Profibus, DN 200 ISO-F, upside down version corrosive
PMP04190 / PM P04 190               HiPace 1200  TC 1200, DN 200 CF-F, corrosive
PMP04191 / PM P04 191               HiPace 1200  TC 1200, DN 200 CF-F, upside down version corrosive
PMP04196 / PM P04 196               HiPace 1200  TC 1200, Profibus, DN 200 CF-F,
PMP04197 / PM P04 197               HiPace 1200  TC 1200, Profibus, DN 200 CF-F, upside down version corrosive
