Name: Pfeiffer HiPace 1500 - NEW
Brand: Pfeiffer
SKU: NEW_HiPace1500

Dimensions

Description

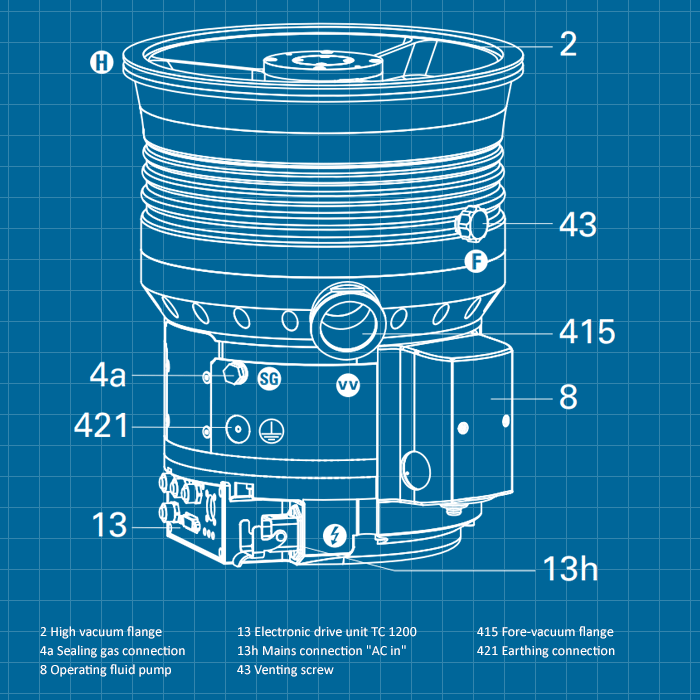

Pfeiffer Vacuum HiPace 1500 Turbomolecular Pump - NEW

Features include:

High pumping speeds for both light and heavy gases
High process integrity, resistant to particulate matter
High gas throughputs, even for heavy gases

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Bearing	Hybrid
Certification	TÜV CSA UL Semi S2 compatible
Compression ratio for Ar	> 1 x 10⁹
Compression ratio for H₂	6 x 10³
Compression ratio for He	2 x 10⁵
Compression ratio for N₂	> 1 x 10⁸

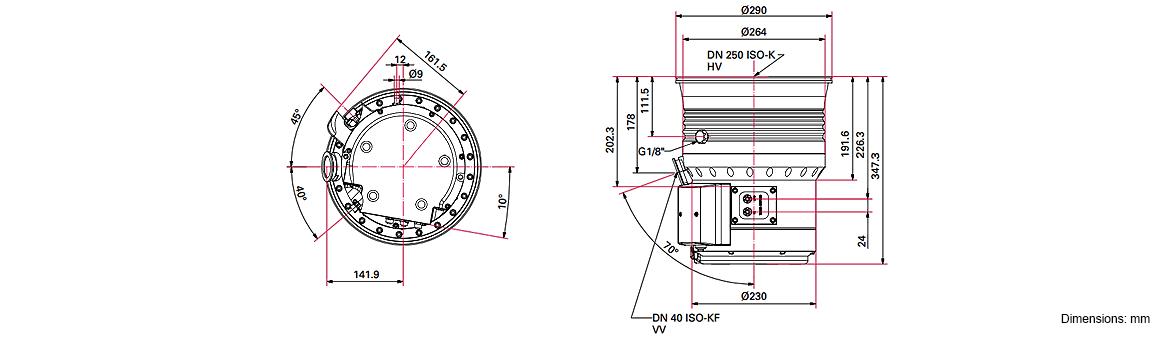

Connection flange (in)	DN 250 ISO-K
Connection flange (out)	DN 40 ISO-KF
Cooling method	Water
Cooling water connection	G 1/4”
Cooling water flow	100 l/h
Cooling water flow, max.	100 l/h
Cooling water flow, min.	100 l/h
Cooling water temperature	15-35 °C \| 59-95 °F \| 288-308 K
Current, max.	10 A
Electronic drive unit	TCP 1200
Final pressure according to PNEUROP	1 x 10^-7 hPa \| 7.5 x 10^-8 Torr \| 1 x 10^-7 mbar
Final pressure without gas ballast	1 x 10^-7 hPa \| 7.5 x 10^-8 Torr \| 1 x 10^-7 mbar
For electronic drive unit	TCP 1200
Fore-vacuum max. for N₂	2 hPa \| 1.5 Torr \| 2 mbar
Gas throughput at 0.1 hPa HV pressure for Ar	31 hPa x l/s
Gas throughput at 0.1 hPa HV pressure for H₂	13 hPa x l/s
Gas throughput at 0.1 hPa HV pressure for He	25 hPa x l/s

Gas throughput at 0.1 hPa HV pressure for N₂	33 hPa x l/s
Gas throughput at final rotation speed for Ar	8 hPa x l/s
Gas throughput at final rotation speed for H₂	> 30 hPa x l/s
Gas throughput at final rotation speed for He	18 hPa x l/s
Gas throughput at final rotation speed for N₂	15 hPa x l/s
I/O interfaces	TCP 1200
Integrated power supply pack	NO
Mounting orientation	0° (HV flange top) – 90°
Operating voltage: 50/60 Hz	200 – 240

Specifications

Digital Manuals

Type	Label	Description	Download
	Pfeiffer HiPace 1500 - NEW	Operating Instructions	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiPace 1500 Turbomolecular Pump - NEW

                        (BUSCH P/N)
PMP05215 / PM P05 215 / 2000014718  HiPace 1500  TCP 1200, DN 250 ISO-K, G 1/4"
PMP05216 / PM P05 216 / 2000014720  HiPace 1500  TCP 1200, DN 250 ISO-F, G 1/4"
PMP05217 / PM P05 217 / 2000014722  HiPace 1500  TCP 1200, DN 250 CF-F, G 1/4"
PMP06100 / PM P06 100 / 2000014244  HiPace 1500  TC 1200, DN 250 ISO-K, DN 40
PMP06101 / PM P06 101 / 2000014245  HiPace 1500  TC 1200, DN 250 ISO-F, DN 40
PMP06102 / PM P06 102 / 2000014246  HiPace 1500  TC 1200, DN 250 CF-F, DN 40
PMP06103 / PM P06 103 / 2000014247  HiPace 1500  TC 1200, Profibus, DN 250 ISO-K
PMP06104 / PM P06 104 / 2000014248  HiPace 1500  TC 1200, Profibus, DN 250 ISO-F
PMP06105 / PM P06 105 / 2000014249  HiPace 1500  TC 1200, Profibus, DN 250 CF-F
PMP06106 / PM P06 106 / 2000014250  HiPace 1500  TC 1200, E74, DN 250 ISO-K
PMP06107 / PM P06 107 / 2000222270  HiPace 1500  TC 1200, E74, DN 250 ISO-F
PMP06108 / PM P06 108 / 2000222271  HiPace 1500  TC 1200, E74, DN 250 CF-F
PMP06110 / PM P06 110 / 2000014251  HiPace 1500 U  TC 1200, DN 250 ISO-K
PMP06111 / PM P06 111 / 2000014252  HiPace 1500 U  TC 1200, DN 250 ISO-F
PMP06112 / PM P06 112 / 2000014253  HiPace 1500 U  TC 1200, DN 250 CF-F
PMP06113 / PM P06 113 / 2000014254  HiPace 1500 U  TC 1200, Profibus, DN 250 ISO-K
PMP06114 / PM P06 114 / 2000014255  HiPace 1500 U  TC 1200, Profibus, DN 250 ISO-F
PMP06115 / PM P06 115 / 2000014256  HiPace 1500 U  TC 1200, Profibus, DN 250 CF-F
PMP06116 / PM P06 116               HiPace 1500 U  TC 1200, E74, DN 250 ISO-K
PMP06117 / PM P06 117 / 2000222272  HiPace 1500 U  TC 1200, E74, DN 250 ISO-F
PMP06118 / PM P06 118 / 2000222273  HiPace 1500 U  TC 1200, E74, DN 250 CF-F
PMP06120 / PM P06 120 / 2000014257  HiPace 1500 C  TC 1200, DN 250 ISO-K, corrosive
PMP06121 / PM P06 121 / 2000014258  HiPace 1500 C  TC 1200, DN 250 ISO-F, corrosive
PMP06122 / PM P06 122 / 2000014259  HiPace 1500 C  TC 1200, DN 250 CF-F, corrosive, DN 40
PMP06123 / PM P06 123 / 2000014260  HiPace 1500 C  TC 1200, Profibus, DN 250 ISO-K, corrosive
PMP06124 / PM P06 124 / 2000014261  HiPace 1500 C  TC 1200, Profibus, DN 250 ISO-F, corrosive
PMP06125 / PM P06 125 / 2000014262  HiPace 1500 C  TC 1200, Profibus, DN 250 CF-F, corrosive
PMP06126 / PM P06 126 / 2000014263  HiPace 1500 C  TC 1200, E74, DN 250 ISO-K, corrosive
PMP06127 / PM P06 127 / 2000014264  HiPace 1500 C  TC 1200, E74, DN 250 ISO-F, corrosive
PMP06128 / PM P06 128 / 2000222274  HiPace 1500 C  TC 1200, E74, DN 250 CF-F, corrosive
PMP06130 / PM P06 130 / 2000014265  HiPace 1500 UC  TC 1200, DN 250 ISO-K, corrosive
PMP06131 / PM P06 131 / 2000014266  HiPace 1500 UC  TC 1200, DN 250 ISO-F, corrosive
PMP06132 / PM P06 132 / 2000014267  HiPace 1500 UC  TC 1200, DN 250 CF-F, corrosive
PMP06133 / PM P06 133 / 2000014268  HiPace 1500 UC  TC 1200, Profibus, DN 250 ISO-K, corrosive
PMP06134 / PM P06 134 / 2000014269  HiPace 1500 UC  TC 1200, Profibus, DN 250 ISO-F, corrosive
PMP06135 / PM P06 135 / 2000014270  HiPace 1500 UC  TC 1200, Profibus, DN 250 CF-F, corrosive
PMP06136 / PM P06 136 / 2000014271  HiPace 1500 UC  TC 1200, E74, DN 250 ISO-K, corrosive
PMP06137 / PM P06 137 / 2000014272  HiPace 1500 UC  TC 1200, E74, DN 250 ISO-F, corrosive
PMP06138 / PM P06 138 / 2000222275  HiPace 1500 UC  TC 1200, E74, DN 250 CF-F, corrosive
PMP04060 / PM P04 060               HiPace 1500  TC 1200, DN 250 ISO-K
PMP04062 / PM P04 062               HiPace 1500  TC 1200, DN 250 CF-F
PMP04061 / PM P04 061               HiPace 1500  TC 1200, DN 250 ISO-F
PMP04063 / PM P04 063               HiPace 1500  TC 1200, DN 250 ISO-K, upside down version
PMP04065 / PM P04 065               HiPace 1500  TC 1200, DN 250 CF-F, upside down version
PMP04064 / PM P04 064               HiPace 1500  TC 1200, DN 250 ISO-F, upside down version
PMP04066 / PM P04 066               HiPace 1500  TC 1200, DN 250 ISO-K, corrosive
PMP04192 / PM P04 192               HiPace 1500  TC 1200, DN 250 CF-F, corrosive
PMP04067 / PM P04 067               HiPace 1500  TC 1200, DN 250 ISO-F, corrosive
PMP04068 / PM P04 068               HiPace 1500  TC 1200, DN 250 ISO-K, upside down version corrosive
PMP04193 / PM P04 193               HiPace 1500  TC 1200, DN 250 CF-F, upside down version corrosive
PMP04069 / PM P04 069               HiPace 1500  TC 1200, DN 250 ISO-F, upside down version corrosive
PMP04120 / PM P04 120               HiPace 1500  TC 1200, Profibus, DN 250 ISO-K
PMP04122 / PM P04 122               HiPace 1500  TC 1200, Profibus, DN 250 CF-F
PMP04121 / PM P04 121               HiPace 1500  TC 1200, Profibus, DN 250 ISO-F
PMP04123 / PM P04 123               HiPace 1500  TC 1200, Profibus, DN 250 ISO-K, upside down version
PMP04125 / PM P04 125               HiPace 1500  TC 1200, Profibus, DN 250 CF-F, upside down version
PMP04124 / PM P04 124               HiPace 1500  TC 1200, Profibus, DN 250 ISO-F, upside down version
PMP04126 / PM P04 126               HiPace 1500  TC 1200, Profibus, DN 250 ISO-K, corrosive
PMP04198 / PM P04 198               HiPace 1500  TC 1200, Profibus, DN 250 CF-F, corrosive
PMP04127 / PM P04 127               HiPace 1500  TC 1200, Profibus, DN 250 ISO-F, corrosive
PMP04128 / PM P04 128               HiPace 1500  TC 1200, Profibus, DN 250 ISO-K, upside down version corrosive
PMP04199 / PM P04 199               HiPace 1500  TC 1200, Profibus, DN 250 CF-F, upside down version corrosive
PMP04129 / PM P04 129               HiPace 1500  TC 1200, Profibus, DN 250 ISO-F, upside down version corrosive

Weight	69.89 lbs
Pumping Speed	1,400 l/s
Ultimate Pressure	1 x 10^-7 mbar
