Balzers-Pfeiffer TMH 1600 - REBUILT
| Weight |
116 lbs |
| Pumping Speed |
1,100 l/s |
| Ultimate Pressure |
1 x 10-10 mbar |
|---|

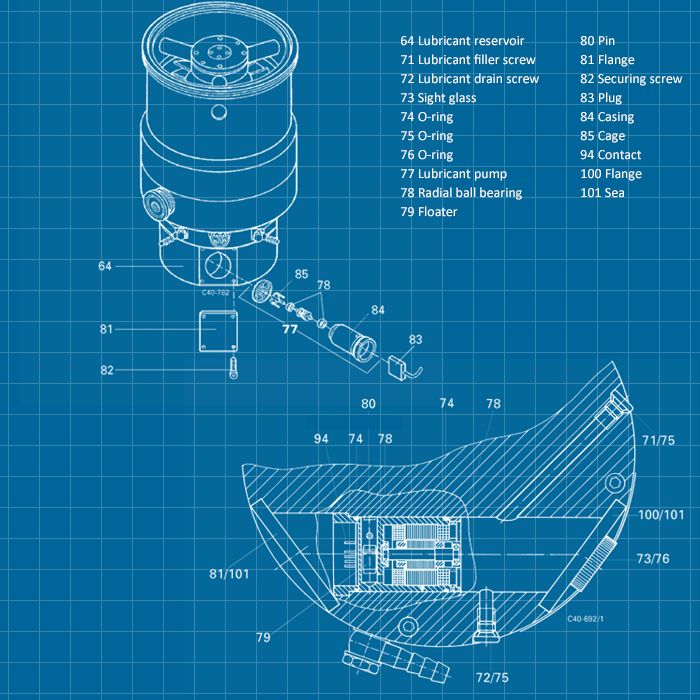

Balzers-Pfeiffer TMH 1600 Turbomolecular Vacuum Pump - REBUILT
Contact us for our used surplus: Pfeiffer Vacuum stations. Let us know the part number that you want to match.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

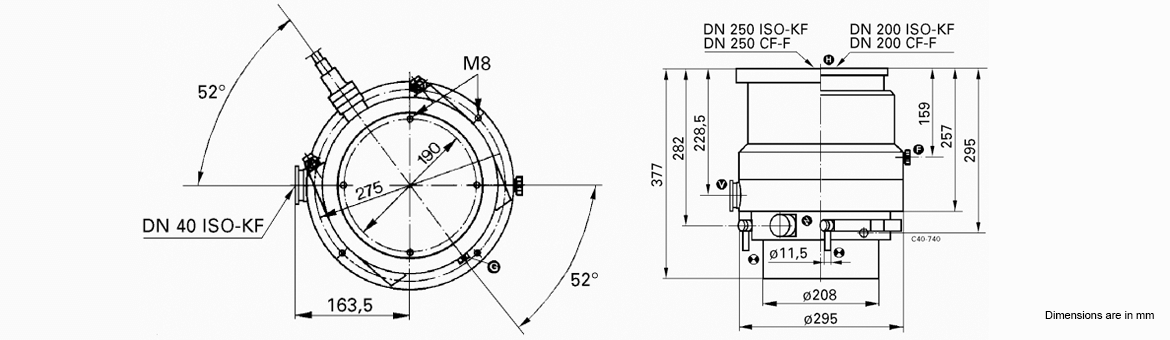

| Specifications |
TMH/TMU 1600 |
TMH/TMU 1600 C |
| Inlet |
DN 200 ISO-K
DN 200 CF-F |
DN 250 ISO-K
DN 250 CF-F |
DN 200 ISO-K
DN 200 CF-F |
DN 250 ISO-K
DN 250 CF-F |
| Outlet |
DN 40 ISO-KF/G 1/4" |
| Venting connection |
G 1/8” |
| Electronic drive unit |
TCP 380/TCP 600 |
TCP 600 |
| Nominal rotation speed |
36,000 l/min |
| Standby rotation speed |
24,000 l/min |
| Run-up time (up to 90% of the nominal rotation speed fore-vacuum pressure ≤ 0.1 mbar) |
21/7 min |
7 min |
| Final pressure, backing pump |
≤ 5 mbar |
≤ 2.5 mbar |
| Maximum permissible rotor temperature |
120°C |
| Permissible heat radiation power |
35 W |
| Volume flow rate for: |
| N2 |
1,100 l/s |
1,500 l/s |
1,100 l/s |
1,500 l/s |
| He |
1,320 l/s |
1,450 l/s |
1,320 l/s |
1,450 l/s |
| H2 |
1,050 l/s |
1,150 l/s |
1,050 l/s |
1,150 l/s |
| Ar |
- |
- |
1,050 l/s |
1,400 l/s |
| CF4 |
- |
- |
850 l/s |
1,100 l/s |
| Compression ratio for: |
| N2 |
> 1012 |
| He |
> 1 x 108 |
| H2 |
3 x 106 |
| Ar |
> 1012 |
| CF4 |
> 1012 |
| Maximum fore-vacuum pressure |
| N2 |
12 mbar l/s |
| He |
10 mbar l/s |
| H2 |
4 mbar l/s |
| Ar |
12 mbar l/s |
| CF4 |
12 mbar l/s |
| Maximum gas throughput |
| N2 |
51) (10) mbar l/s |
| He |
51) (14) mbar l/s |
- |
| H2 |
41) (17) mbar l/s |
- |
| Ar |
- |
14.52) (5.5) mbar l/s |
| CF4 |
- |
152) (8) mbar l/s |
| Recommended backing pump |
| Rotary vane pump |
DUO 010 M |
| Diaphragm vacuum pump |
MD 4T |
MD 4TC |
| Dry three stage backing pump |
UniDryTM |
UniDryTM |
| Final pressure w/ |
| DUO 010 M |
< 1 x 10-10 mbar |
| MD 4T / MD 4TC |
| UniDryTM |
| Lubricant |
| Type3) |
TL 011 or F3 |
F3 |
| Filling volume |
65 |
| Max cooling water consumption w/ water at 15°C4) |
100 l/h |
| Cooling water temperature |
5-25°C |
| Permissible ambient temperature w/ air cooling |
0-35°C |
- |
| Permissible magnetic field |
3 mT |
| Heating power consumption |
170 W |
| Weight |
49 / 51 kg |
51 / 53 kg |
51 kg |
51 / 53 kg |
| Noise level |
< 47 dB(A) |
Specifications
