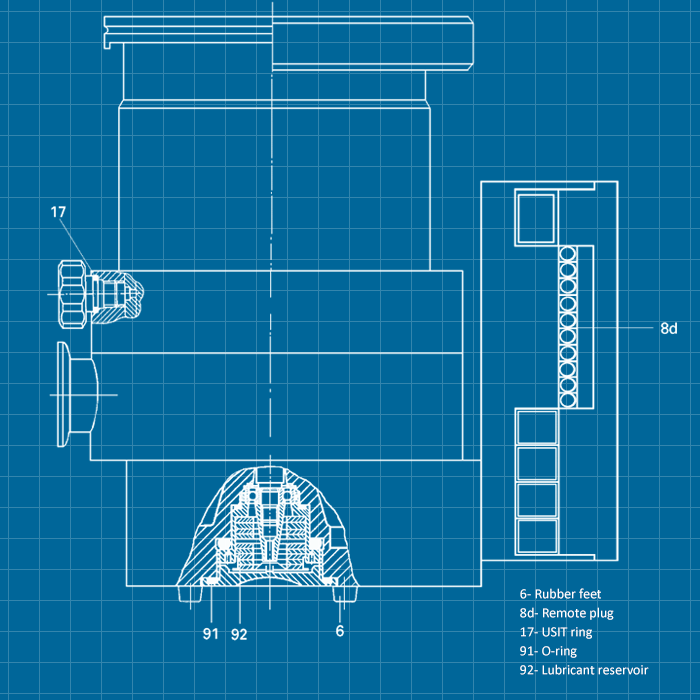

Pfeiffer TMH 521-400-030 P - REBUILT
Pfeiffer Vacuum TMH 521-400-030 P Splitflow Turbomolecular Pump - REBUILT
Contact us for our used surplus: Pfeiffer Vacuum stations. Let us know the part number that you want to match.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | TMH / TMU 521 P | |||
|---|---|---|---|---|
| Inlet | DN 100 ISO-K | DN 100 CF-F | DN 160 ISO-K | DN 160 CF-F |
| Outlet | DN 25 ISO-KF/G 1/4" | |||
| Venting connection | G 1/8” | |||
| Nominal rotation speed | 50,000 l/min | |||
| Standby rotation speed | 33,000 l/min | |||
| Start-up time | 5.5 min | |||
| Noise level | < 50 dB(A) | |||
| Final pressure, backing pump | < 5 mbar | |||
| Maximum permissible rotor temperature | 90°C | |||
| Permissible heat radiation power | 14 W | |||
| Volume flow rate for: | ||||
| N2 | 300 l/s | 500 l/s | ||
| He | 400 l/s | 500 l/s | ||
| H2 | 400 l/s | 480 l/s | ||
| Compression ratio for: | ||||
| N2 | > 1012 | |||
| He | 5 x 107 | |||
| H2 | 5 x 106 | |||
| Maximum fore-vacuum pressure | ||||
| N2 | 16 mbar | |||
| He | 14 mbar | |||
| H2 | 7 mbar | |||
| Maximum gas throughput w/ water cooling 1) | ||||
| N2 | 3 mbar l/s | |||
| He | 4 mbar l/s | |||
| Vertex power characteristics line 2) | ||||
| A | 185 W / 833 Hz | |||
| B | 260 W / 485 Hz | |||
| C | 160 W / 833 Hz | |||
| D | 260 W / 435 Hz | |||
| Final pressure 3) | ||||
| w/ diaphragm vacuum pump | < 1 x 10-8 mbar | |||
| w/ rotary vane vacuum pump | < 5 x 10-10 mbar | |||
| Lubricant | TL 011 | |||
| Max cooling water consumption w/ water at 15°C 4) | 100 l/h | |||
| Cooling water temperature | 5 - 25°C | |||
| Permissible ambient temperature w/ air cooling | 0 - 35°C | |||
| Heating power consumption | 100 W | |||
| Weight | 13 kg | 13.5 kg | ||
| Permissible magnetic field | 5.0 mT | |||
| Operating voltage | 72 ± 5% VDC | |||
| Duration 4) - / max. current consumption | 3.2 / 4.2 A | |||
| Duration 4) - / max. power | 230 / 300 W | |||
| Protection class 5) | IP 30 | |||
| Relative humidity |
5 - 85% non-condensing
|
|||
1) Measured with a rotary vane pump 1.5 m3/h; higher throughputs with reduced rotation speed.
2) For gas type characteristic lines please refer to section 4.4.
3) In accordance with German Industrial Standard 28428 the final pressure which is attained in a measuring dome 48 hours after baking out.
4) At maximum gas throughput.
5) Protection class IP 54 is afforded for the Electronic Drive Unit TC 600 by refro-fitting a cover plate.
| Type | Label | Description | Download |
|---|---|---|---|
|
Pfeiffer TMH / TMU 521 - REBUILT | Operating Instructions | Download |
