Pfeiffer TPH 240 - REBUILT
| Weight | 25 lbs |
|---|---|
| Pumping Speed | 230 l/s |
| Ultimate Pressure | 1 x 10-11 mbar |

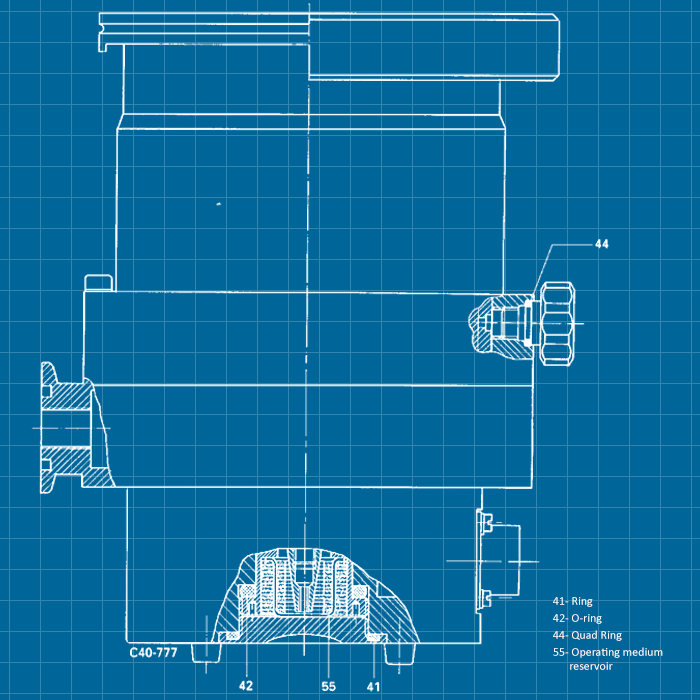

Pfeiffer Balzers TPH 240 Turbomolecular Vacuum Pump - REBUILT
TPH and TPU models of the Pfeiffer Balzers turbo are identical with regard to their design, the only difference being the intake flange. The TPH pumps have a KF or ISO-K flange, while the TPU pumps have a CF flange. The same letter signification applies to TMU and TMH pumps.
The Pfeiffer Balzers 330, 510 and 2200 are available with the flange being fitted on top or bottom as standard. Both models may also be equipped with a lateral flange by rearranging the pump's support legs. The TPH 330 comes with a six month warranty. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

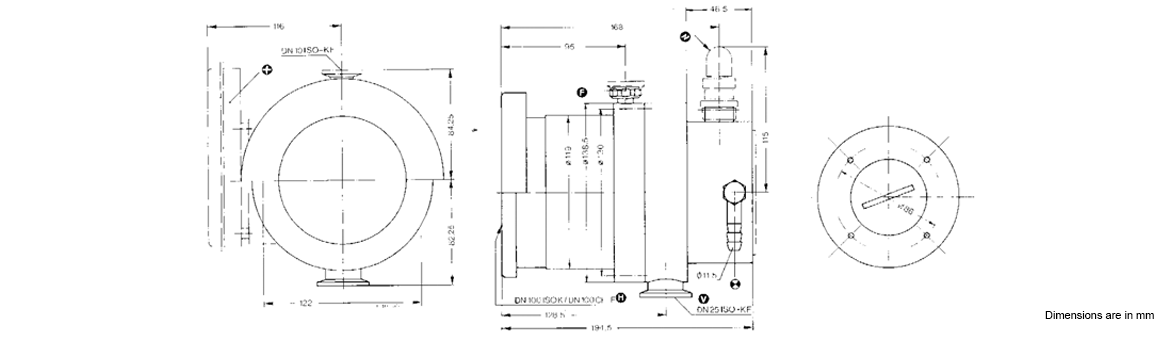

| Specifications | TPH 240 | TPU 240 |
|---|---|---|
| Inlet | DN 100 ISO-K | DN 100 CF-F |
| Outlet | DN 25 ISO-KF | |
| Volume flow rate | ||
| N2 | 230 l/s | |
| He | 240 l/s | |
| H2 | 210 l/s | |
| Recommended backing pump | 1.5 - 16 m3/h | |
| Compression ratio | ||
| N2 | 108 | |
| He | 3 x 104 | |
| H2 | 1.5 x 103 | |
| Ultimate operating pressure | 10-11 mbar | |
| Rated speed | 60,000 l/min | |
| Run-up time | 1 min | |
| Operating medium filling | 8 cm3 | |
| Cooling water requirement at water temperature 15°C | 15 l/h | |
| Water temperature | 5 - 25°C | |
| Permissible ambient temperature for air cooling | 5 - 35°C | |
| Power input of heater | 60 W | |
| Weight | 8.5 kg / 19 lb | 9 kg / 20 lb |
| Permissible magnetic field | 5.5 mT | |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Pfeiffer TPH/TPU 240 - REBUILT | Operating Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Pfeiffer Balzers TPH 240 Turbomolecular Vacuum Pump - REBUILT PMP01320 / PM P01 320 TPH 240 DN 100 ISO-K
