Pfeiffer HiPace 300 - NEW

Name: Pfeiffer HiPace 300 - NEW
Brand: Pfeiffer
SKU: NEW_HiPace300

Be the first to review this product

Call for Price

Out of stock

SKU

NEW_HiPace300

Request For Quote

Weight	14.77 lbs
Pumping Speed	260 l/s
Ultimate Pressure	< 1 x 10^-7 mbar

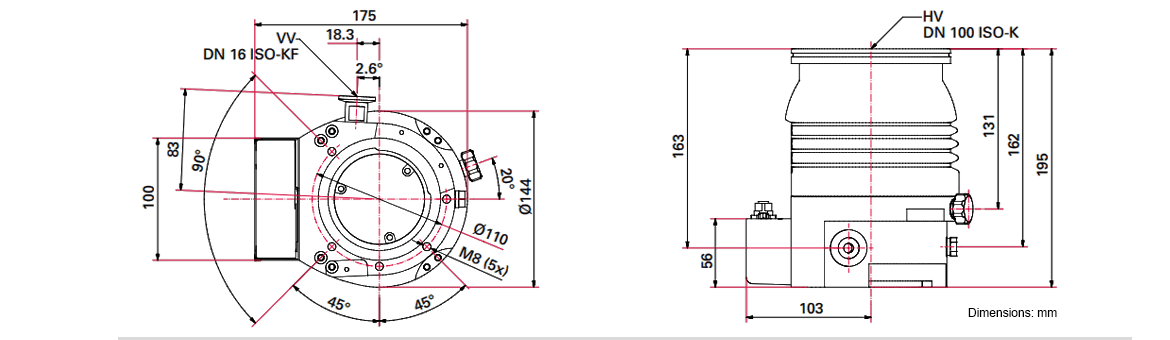

Dimensions

Description

Pfeiffer Vacuum HiPace 300 Turbomolecular Pump - NEW

Features include:

Maximum reliability in a compact design
High pumping speed and maximum compression for all gases
Semi S2 and UL/CSA certification
Ideal for industry and research
Integrated drive electronics, suitable for industrial environments - Protection class IP54
Continuous monitoring of operating data

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Bearing	Hybrid
Compression ratio
Ar	> 1 x 10¹¹
H₂	9 x 10⁵
He	> 1 x 10⁸
N₂	> 1 x 10¹¹
Cooling method, optional	Air
Cooling method, standard	Water
Cooling water consumption	50 l/h
Cooling water temp.	15-35°C / 59-95°F / 288-308°K
Electric drive unit	w/ TC 400
Flange (in)	DN 100 ISO-K
Flange (out)	DN 16 ISO-KF/G ^1/4"
Forevacuum max. for N₂	20 hPA / 15 Torr / 20 mbar
Gas throughput at full rotational speed for Ar	7 hPa l/s / > 10.5 Torr l/s / 7 mbar l/s
Gas throughput at full rotational speed for H₂	> 14 hPa l/s / > 10.5 Torr l/s / > 14 mbar l/s
Interfaces	RS-485, Remote
Mounting orientation	Any
Operating voltage	24 (± 5%) V DC
Permissible magnetic field max.	5.5 mT
Protection category	IP54
Pumping speed
Ar	255 l/s
H₂	220 l/s
He	255 l/s
N₂	260 l/s
Rotation speed ± 2 %	60,000 rpm / 60,000 min^-1
Rotation speed variable	35 - 100%
Run-up time	1.8 min
Ult pressure (PNEUROP)	< 1 x 10^-7 hPa / < 7.5 x 10^-8 Torr / < 1 x 10^-7 mbar
Venting connection	G^1/8"
Weight	6.7 kg / 14.77 lbs

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiPace 300 Turbomolecular Pump - NEW

                        (BUSCH P/N)
PMP03900 / PM P03 900 / 2000015541  HiPace 300  TC 400, DN 100 ISO-K, 24 V DC
PMP03901 / PM P03 901 / 2000015544  HiPace 300  TC 400, DN 100 CF-F
PMP03902 / PM P03 902 / 2000015547  HiPace 300  TC 400, DN 100 ISO-F, 24 V DC
PMP03903 / PM P03 903 / 2000015550  HiPace 300  TC 400, DN 100 ISO-K, 48 V DC
PMP03904 / PM P03 904 / 2000015553  HiPace 300  TC 400, DN 100 CF-F, 48 V DC
PMP03905 / PM P03 905 / 2000015556  HiPace 300  TC 400, DN 100 ISO-F, 48 V DC
PMP03990 / PM P03 990 / 2000015726  HiPace 300  TC 110, DN 100 ISO-K
PMP03991 / PM P03 991 / 2000015729  HiPace 300  TC 110, DN 100 CF-F
PMP03992 / PM P03 992 / 2000015731  HiPace 300  TC 110, DN 100 ISO-F
PMP03993 / PM P03 993 / 2000186060  HiPace 300  TCP 350, DN 100 ISO-K
PMP03994 / PM P03 994 / 2000098941  HiPace 300  TCP 350, DN 100 CF-F
PMP03995 / PM P03 995 / 2000202808  HiPace 300  TCP 350, DN 100 ISO-F
PMP03950 / PM P03 950 / 2000015669  HiPace 300 M  TC 700, DN 100 ISO-K
PMP03951 / PM P03 951 / 2000015671  HiPace 300 M  TC 700, DN 100 ISO-F
PMP03952 / PM P03 952 / 2000015672  HiPace 300 M  TM 700, DN 100 CF-F
PMP03953 / PM P03 953               HiPace 300 M  TM 700, Profibus, DN 100 ISO-K
PMP03954 / PM P03 954 / 2000015676  HiPace 300 M  TM 700, Profibus, DN 100 ISO-F
PMP03955 / PM P03 955 / 2000015677  HiPace 300 M  TC 700, Profibus, DN 100 CF-F
PMP03980 / PM P03 980 / 2000015708  HiPace 300 Plus  TC 110, DN 100 ISO-K
PMP03981 / PM P03 981 / 2000015712  HiPace 300 Plus  TC 110, DN 100 CF-F
PMP03982 / PM P03 982 / 2000015715  HiPace 300 Plus  TC 110, DN 100 ISO-F
PMP04230 / PM P04 230 / 2000015126  HiPace 300  TC 400, Profibus, DN 100 ISO-K
PMP04231 / PM P04 231 / 2000015128  HiPace 300  TC 400, Profibus, DN 100 CF-F
PMP04232 / PM P04 232 / 2000015131  HiPace 300  TC 400, Profibus, DN 100 ISO-F
PMP04236 / PM P04 236 / 2000015140  HiPace 300  TC 110, Profibus, DN 100 ISO-K
PMP04237 / PM P04 237 / 2000015142  HiPace 300  TC 110, Profibus, DN 100 CF-F
PMP04238 / PM P04 238 / 2000015144  HiPace 300  TC 110, Profibus, DN 100 ISO-F
PMP04330 / PM P04 330 / 2000015239  HiPace 300  TC 110 & OPS 100, DN 100 ISO-K
PMP04331 / PM P04 331 / 2000015241  HiPace 300  TC 110 & OPS 100, DN 100 CF-F
PMP04332 / PM P04 332 / 2000015243  HiPace 300  TC 110 & OPS 100, DN 100 ISO-F
PMP04710 / PM P04 710 / 2000014510  HiPace 300 P  TC 400, DN 100 ISO-K, G 1/4"
PMP04711 / PM P04 711 / 2000014514  HiPace 300 P  TC 400, DN 100 CF-F, G 1/4"
PMP04712 / PM P04 712 / 2000014517  HiPace 300 P  TC 400, DN 100 ISO-F, G 1/4"
PMP05160 / PM P05 160 / 2000014660  HiPace 300 M  TM 700 & OPS 400, DN 100 ISO-K
PMP05161 / PM P05 161 / 2000014662  HiPace 300 M  TM 700 & OPS 400, DN 100 ISO-F
PMP05162 / PM P05 162 / 2000014663  HiPace 300 M  TM 700 & OPS 400, DN 100 CF-F
PMP05163 / PM P05 163 / 2000014664  HiPace 300 M  TM 700 & OPS 400, Profibus, DN 100 ISO-K
PMP05164 / PM P05 164 / 2000014665  HiPace 300 M  TM 700 & OPS 400, Profibus, DN 100 ISO-F
PMP05165 / PM P05 165 / 2000014666  HiPace 300 M  TM 700 & OPS 400, Profibus, DN 100 CF-F
PMP05540 / PM P05 540 / 2000014851  HiPace 300 H  TC 110, DN 100 ISO-K
PMP05541 / PM P05 541 / 2000014854  HiPace 300 H  TC 110, DN 100 CF-F
PMP05542 / PM P05 542 / 2000014856  HiPace 300 H  TC 110, DN 100 ISO-F
PMP05544 / PM P05 544 / 2000014860  HiPace 300  TCP 350, DN 100 CF-F
PMP54442170 / PM P544 421 70 / 2000195689  HiPace 300 H  TCP 350, DN 100 ISO-F
PMP05543 / PM P05 543               HiPace 300 H  TCP 350, DN 100 ISO-K
PMP03906 / PM P03 906               HiPace 300  TC 400, DN 100 ISO-K
PMP03996 / PM P03 996               HiPace 300  TC 400, DN 100 CF-F
PMP03907 / PM P03 907               HiPace 300  TC 400, DN 100 ISO-F
PMP05545 / PM P05 545               HiPace 300  TCP 350, DN 100 ISO-F
