Pfeiffer TPH 510 - REBUILT
Weight
67 lbs
Pumping Speed
500 l/s
Ultimate Pressure
1 x 10-10 mbar
Pfeiffer Balzers TPH 510 Turbomolecular Vacuum Pump - REBUILT
With one year warranty; special volume pricing. Pfeiffer Balzers TPH 510 turbo pump. We offer repair service and are capable of rebuilding, balancing and testing this pump. Contact us for flange and rotation options:
Nr. PM P01 180, PM P01 182, PM P01 380, PM P01 381, PM P01 185, PM P01 186 TPH-510
Nr. PM P01 190, PM P01 192, PM P01 470, PM P01 471, PM P01 195, PM P01 196 TPU-510
Questions? send an email to our sales team!

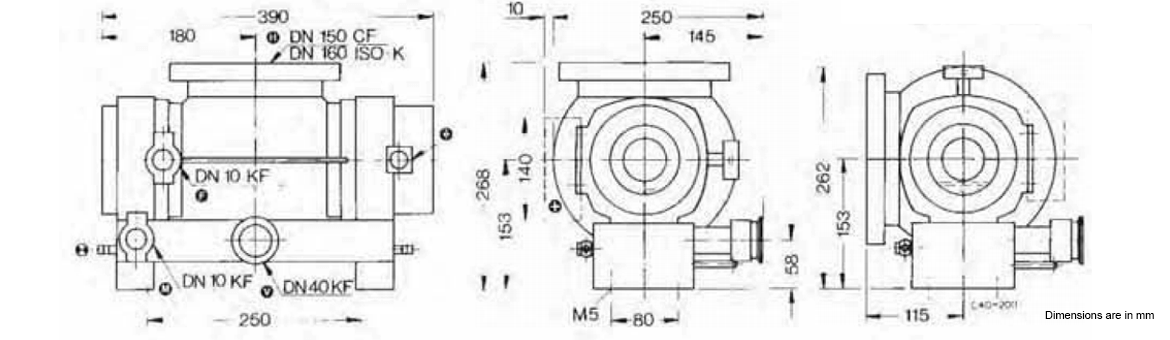

Intake flange
DN 160 ISO-K
Fore-vacuum flange
DN 40 KF
Volume flow rate
N2
500 l/s
He
570 l/s
H2
500 l/s
Recommended backing pump
12 m3 /h
Electronic drive unit
TCP 300 / 310 / 380
Compression ratio
N2
8 x 109
He
1.5 x 104
H2
1 x 103
Ultimate pressure
10-11 mbar
Ultimate operating pressure
< 1 x 10-10
Speed
60,000 rpm
Start-up time w/ TCP 300 / 310
6 min
Permissable magnetic field
6 mT
Oil filling
2 x 10 cm3
Cooling water requirement
15 l/h
Cooling water temperature
5 - 25°C
Permissable ambient temperature for air cooling
0 - 35°C
Weight
28 kg / 61.72 lbs
Specifications
Type
Label
Description
Download
Pfeiffer TPH/TPU 330 & 510 - REBUILT
Operating Instructions
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
