Pfeiffer HiPace 700 - NEW

Name: Pfeiffer HiPace 700 - NEW
Brand: Pfeiffer
SKU: NEW_HiPace700

Be the first to review this product

Call for Price

In stock

SKU

NEW_HiPace700

Request For Quote

Weight	26.38 lbs
Pumping Speed	685 l/s
Ultimate Pressure	1 x 10^-7 mbar

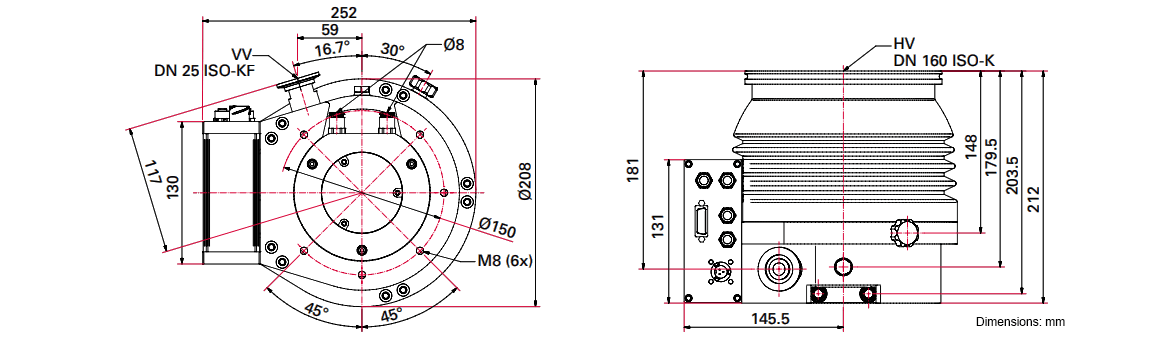

Dimensions

Description

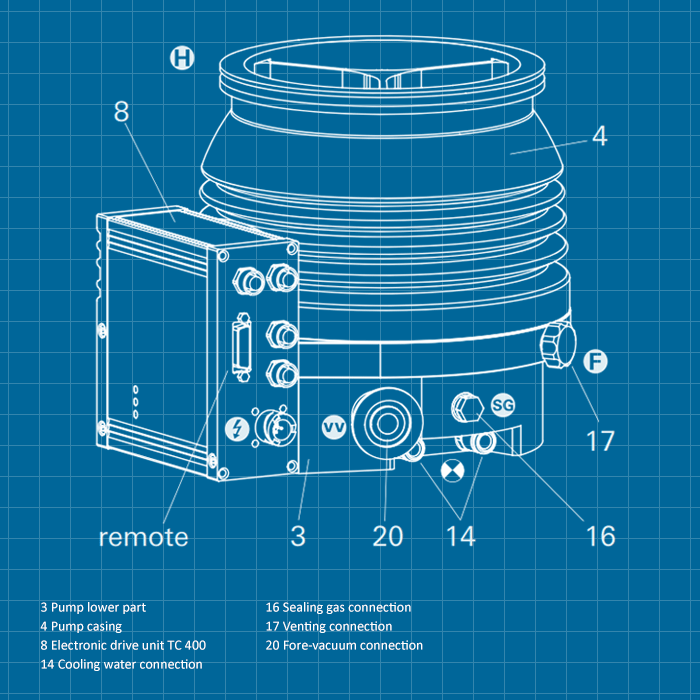

Pfeiffer Vacuum HiPace 700 Turbomolecular Pump - NEW

Minimum footprint and maximum reliability
High gas throughput and high pumping speed
Suitable for industrial environments - Protection class IP54
Semi S2 and UL/CSA certification
Monitoring of operating data

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Bearing	Hybrid
Compression ratio
Ar	> 1 x 10¹¹
H₂	4 x 10⁵
He	3 x 10⁷
N₂	> 1 x 10¹¹
Cooling method, optional	Air
Cooling method, standard	Water
Cooling water consumption	100 l/h
Cooling water temperature	15-35°C / 59-95°F / 288-308°K
Electronic drive unit	w/ TC 400
Flange (in)	DN 160 ISO-K
Flange (out)	DN 25 ISO-KF / G 1/4"
Fore-vacuum max. for N₂	11 hPa / 8.25 Torr / 11 mbar
Gas throughput at full rotational speed for Ar	3.5 hPa l/s / 2.62 Torr l/s / 3.5 mbar l/s
Gas throughput at full rotational speed for H₂	> 14 hPa l/s / > 10.5 Torr l/s / > 14 mbar l/s
Gas throughput at full rotational speed for He	20 hPa l/s / 15 Torr l/s / 20 mbar l/s
Gas throughput at full rotational speed for N₂	6.5 hPa l/s / 4.88 Torr l/s / 6.5 mbar l/s
Interfaces	RS-485, Remote
Mounting orientation	in any orientation
Operating voltage	48 (± 5%) V DC
Permissible magnetic field max.	6 mT
Protection category	IP54
Pumping speed for Ar	665 l/s
Pumping speed for H₂	555 l/s
Pumping speed for He	655 l/s
Pumping speed for N₂	685 l/s
Rotation speed ± 2 %	49,200 min^-1
Rotation speed variable	60-100%
Run-up time	2 min
Sound pressure level	≤ 50 dB(A)
Ultimate pressure according to PNEUROP	< 1 x 10^-7 hPa / < 7.5 x 10^-8 Torr / < 1 x 10^-7 mbar
Venting connection	G 1/8"
Weight	12.1 kg / 26.68 lb

Specifications

Digital Manuals

Type	Label	Description	Download
	Pfeiffer HiPace 700 - REBUILT	Operating Instructions	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Vacuum HiPace 700 Turbomolecular Pump - NEW

                        (BUSCH P/N)
PMP03933 / PM P03 933 / 2000015634  HiPace 700  TC 400, DN 160 ISO-K, DN 25
PMP03934 / PM P03 934 / 2000015636  HiPace 700  TC 400, DN 160 CF-F, DN 25
PMP03935 / PM P03 935 / 2000015638  HiPace 700  TC 400, DN 160 ISO-F, DN 25
PMP04253 / PM P04 253 / 2000015152  HiPace 700  TC 400, Profibus, DN 160 ISO-K, RS485
PMP04254 / PM P04 254 / 2000015154  HiPace 700  TC 400, Profibus, DN 160 CF-F, RS485
PMP04255 / PM P04 255 / 2000015156  HiPace 700  TC 400, Profibus, DN 160 ISO-F, RS485
PMP04080 / PM P04 080 / 2000014945  HiPace 700  TCP 350, DN 160 ISO-K, G 1/4"
PMP04081 / PM P04 081 / 2000014946  HiPace 700  TCP 350, DN 160 CF-F, G 1/4"
PMP04082 / PM P04 082 / 2000014947  HiPace 700  TCP 350, DN 160 ISO-F, G 1/4"
PMP04980 / PM P04 980 / 2000014640  HiPace 700  TM 700 & OPS 400, DN 160 ISO-K
PMP04981 / PM P04 981 / 2000014641  HiPace 700  TM 700 & OPS 400, DN 160 ISO-F
PMP04982 / PM P04 982 / 2000014642  HiPace 700  TM 700 & OPS 400, DN 160 CF-F
PMP04983 / PM P04 983 / 2000014643  HiPace 700  TM 700 & OPS 400, Profibus, DN 160 ISO-K
PMP04984 / PM P04 984 / 2000014644  HiPace 700  TM 700 & OPS 400, Profibus, DN 160 ISO-F
PMP04985 / PM P04 985 / 2000014645  HiPace 700  TM 700 & OPS 400, Profibus, DN 160 CF-F
PMP04450 / PM P04 450 / 2000015324  HiPace 700 M  TM 700, DN 160 ISO-K
PMP04451 / PM P04 451 / 2000015326  HiPace 700 M  TM 700, DN 160 ISO-F
PMP04452 / PM P04 452 / 2000015327  HiPace 700 M  TM 700, DN 160 CF-F
PMP04453 / PM P04 453 / 2000015329  HiPace 700 M  TM 700, Profibus, DN 160 ISO-K
PMP04454 / PM P04 454 / 2000015331  HiPace 700 M  TM 700, Profibus, DN 160 ISO-F
PMP04455 / PM P04 455 / 2000015333  HiPace 700 M  TM 700, Profibus, DN 160 CF-F
PMP04680 / PM P04 680 / 2000014472  HiPace 700 P  TC 400, DN 160 ISO-F, G 1/4"
PMP04681 / PM P04 681 / 2000014473  HiPace 700 P  TC 400, DN 160 CF-F, G 1/4"
PMP04275 / PM P04 275 / 2000015178  HiPace 700 P  TC 400, DN 160 ISO-K, G 1/4"
PMP04441 / PM P04 441 / 2000015320  HiPace 700 Plus  TC 400, DN 160 CF-F, G 1/4"
PMP04440 / PM P04 440 / 2000015318  HiPace 700 Plus  TC 400, DN 160 ISO-K, G 1/4"
PMP04442 / PM P04 442               HiPace 700 Plus  TC 400, DN 160 ISO-F
PMP04596 / PM P04 596 / 2000014456  HiPace 700  TC 400 & OPS 400, DN 160 ISO-K, G 1/8"
PMP04597 / PM P04 597 / 2000014457  HiPace 700  TC 400 & OPS 400, DN 160 CF-F, G 1/8"
PMP04598 / PM P04 598 / 2000014459  HiPace 700  TC 400 & OPS 400, DN 160 ISO-F, G 1/8"
PMP05750 / PM P05 750 / 2000014104  HiPace 700  TC 400, DN 160 ISO-K, G 1/4"
PMP05751 / PM P05 751 / 2000014105  HiPace 700  TC 400, DN 160 CF-F, G 1/4"
PMP05752 / PM P05 752 / 2000014107  HiPace 700  TC 400, DN 160 ISO-F, G 1/4"
PMP05753 / PM P05 753 / 2000098943  HiPace 700  TCP 350, DN 160 ISO-K, DN 25
PMP05754 / PM P05 754 / 2000014108  HiPace 700  TCP 350, DN 160 CF-F, DN 25
PMP05755 / PM P05 755 / 2000014109  HiPace 700  TCP 350, DN 160 ISO-F
PMP04681 / PM P04 681               HiPace 700  TC 400, DN 160 CF-F
