Name: Polycold PFC-1103 - REBUILT
Brand: Polycold
SKU: REBUILT_PFC1103

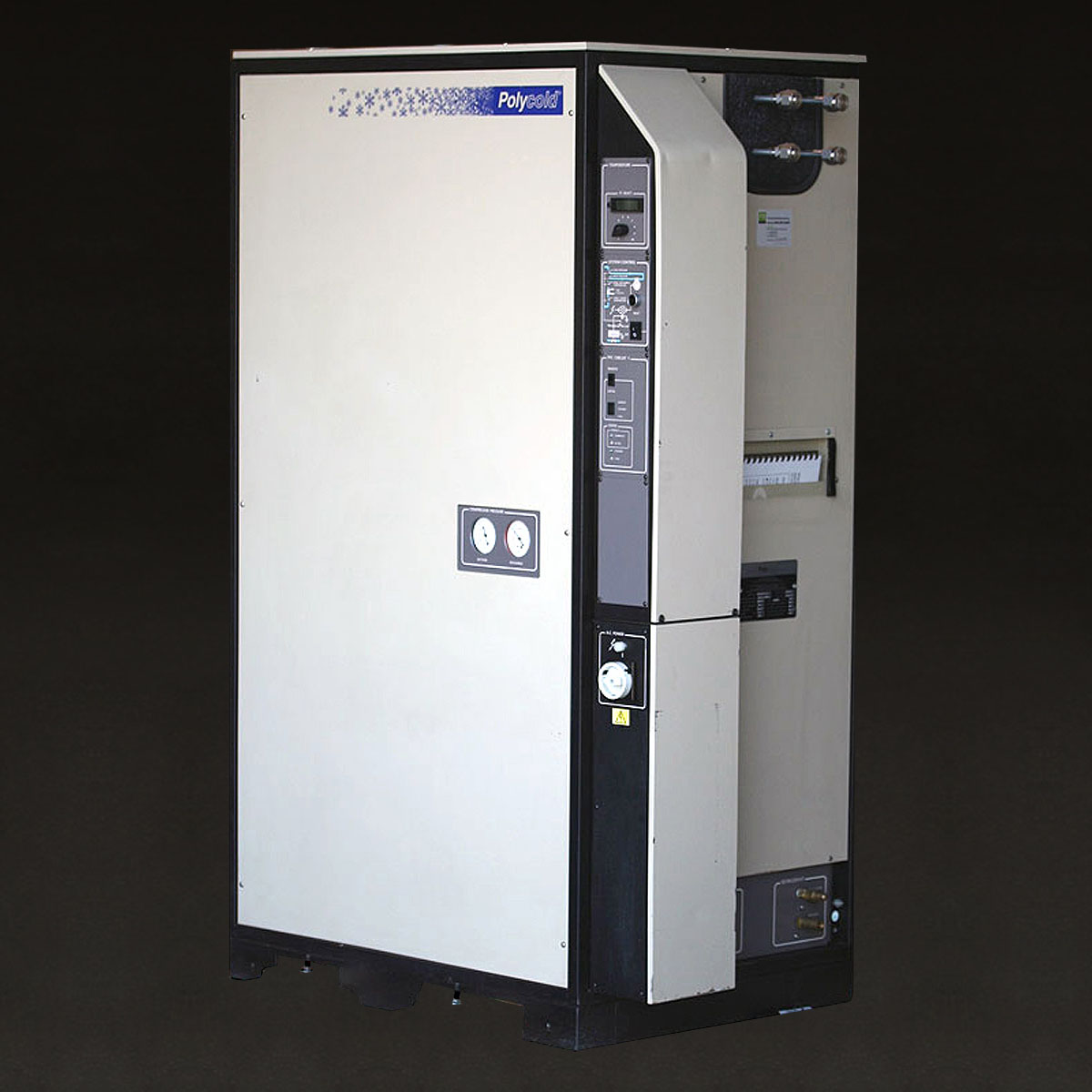

Brooks Polycold Systems PFC-1103 Water Vapor Cryochiller - REBUILT

Fast start, fast defrost
Tube-type cold element (e.g., cryocoil)
Cryocondenses water vapor in vacuum systems with speeds to 200,000 l/sec.
Vacuum levels to 1.5 x 10^-12 Torr
Provides very fast pumping speeds for water vapor, which is typically 65% to 95% of the gas load in high vacuum systems.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

This product has been refurbished by PTB Sales, Inc. PTB Sales is not affiliated with Brooks Automation, Inc., the Original Equipment Manufacturer. In some cases, PTB Sales uses processes and parts that are different from those used by the OEM, and the OEM expressly disclaims any warranty obligations with respect to this refurbished product.

Specification

PFC	330 ST	400 LT	550 LT	550 HC	670 HC	1100 LT	1100 HC
Max load (Watts at warmest temp)	400	200	400	1,000	1,500	800	3,600
Theoretical max pumping speed l / sec(b)	29,800		37,250	74,500	104,300	74,500	298,000
Conservative pumping speed (in chamber) l / sec(b)	20,000		25,000	50,000	70,000	50,000	200,000
Ultimate operating pressure, Torr(c)	2 x 10^-7	2 x 10^-10	4 x 10^-10	6 x 10^-9	6 x 10^-9	1.5 x 10^-12	1.5 x 10^-8
Max pump start pressure, atm(d)	1.0
Time to defrost, minutes	3.0	4.0	3.0	4.0		3.0	7.0
Total cryocoil surface area m² (ft.²)	0.2 (2.2)		0.25 (2.7)	0.5 (5.4)	0.7 (7.5)	0.5 (5.4)	2.0 (21.6)
Single circuit (PFC)
Tube O.D., mm (in.)	10 (3/8)	8 (5/16)	10 (3/8)	12 (1/2)	16 (5/8)	12 (1/2)	16 (5/8)
Tube length, m (ft.)	6.37 (21.9)	8 (26.3)	7.95 (27.4)	13.3 (41.1)	14 (46)	13.3 (41.1)	40 (132)
Standard refrigerant line lengths m (ft.)	2.44 (8)
Cooling water, flow rate l / min. (gal. / min.)
@ 13°C (55°F)	NA	2.7 (0.71)	4.9 (1.3)		6.8 (1.8)	13.6 (3.6)
@ 26°C (79°F)	8.9 (2.3)	8.6 (2.3)	12.3 (3.2)		17.3 (4.6)	33.8 (8.9)
@ 29°C (85°F)	19.5 (5.15)	19.0 (5.02)	19.7 (5.2)		27.6 (7.3)	54.1 (14.3)
Power input, at max load, kW	3.6		6.0		8.3	11.8	19.2
Nominal power requirements(e)	200V three-phase 50-60Hz 230V 3-phase 60Hz 380V 3-phase 50Hz 400V 3-phase 50Hz 460V 3-phase 60Hz 480V 3-phase 60Hz
Max operating sound level, dB(A)(f)	73		71	72		81
Min room volume m³ (ft.³)	141.6 (5,000)		130.2 (4,600)	155.7 (5,500)	212 (7,500)	340 (12,000)	354 (12,500)

Data Sheet

Digital Manuals

Type	Label	Description	Download
	Brooks Polycold Fast Cycle PFC - REBUILT	Operation Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
