Shimadzu EI-R04M
Call for Price
In stock
SKU
REBUILT_EIR04M
| Height | 14 mm |
|---|---|
| Width | 17 mm |
| Length | 27 mm |
| Weight | 25 lbs |
Shimadzu EI-R04M Turbomolecular Vacuum Pump Controller
90 Day Warranty. View our inventory of Shimadzu turbo controllers.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Battery | Not necessary | |
| Exchangeable compatibility | The control cable and the motor cable are interchangeable between any pump and power supply unit. | |
| Speed variation | Speed is variable between 25 % and 100 % of the rated speed. (set as 0.1 %) | |
| Communication | Contact | REMOTE (MR-34) Input : START / STOP / RESET / LOW SPEED Output : ROTATION / ACC. / BRAKE / NORMAL / REMOTE / ALARM / WARNING |
| Serial | Front panel : RS-232C (D-sub 9 pin male, Screw lock size : M2.6) Rear panel : RS-485 (D-sub 9 pin female, Screw lock size : M2.6) |
|
| Environmental conditions | Temperature | Operation 0 to 45 degrees C. (No dew condensation) |
| Relative humidity | 40 to 80% RH | |
| Input electric power | Voltage | Single-phase 200 to 240 VAC ± 10 % (50/60 Hz ± 2 Hz) |
| Maximum power | 1.0 kVA | |
| Mass | 8 kg | |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Shimadzu EI-R04M Turbomolecular Vacuum Pump Controller EI-S04M
Related Products
-

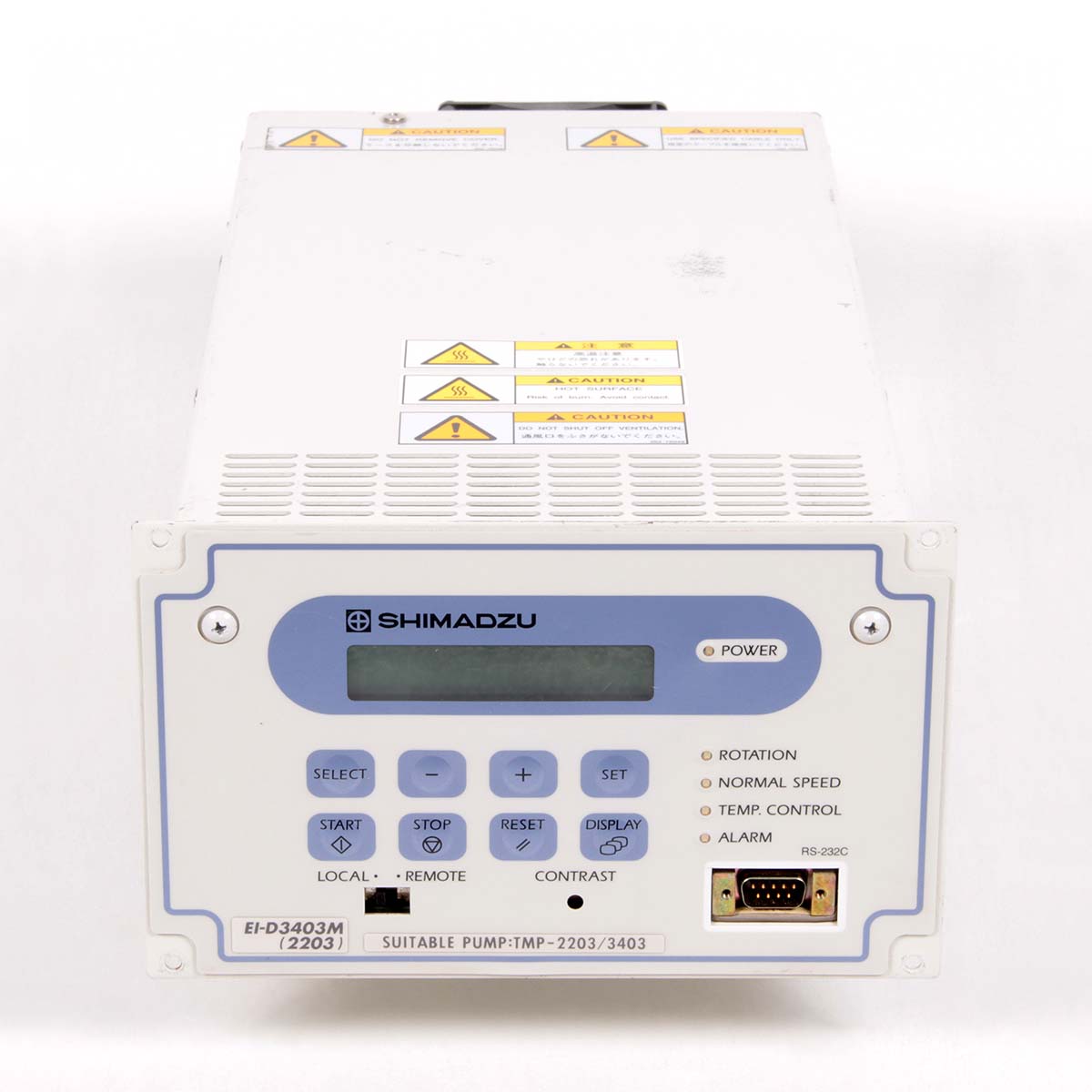

Shimadzu EI-D3403MCall for Price
-

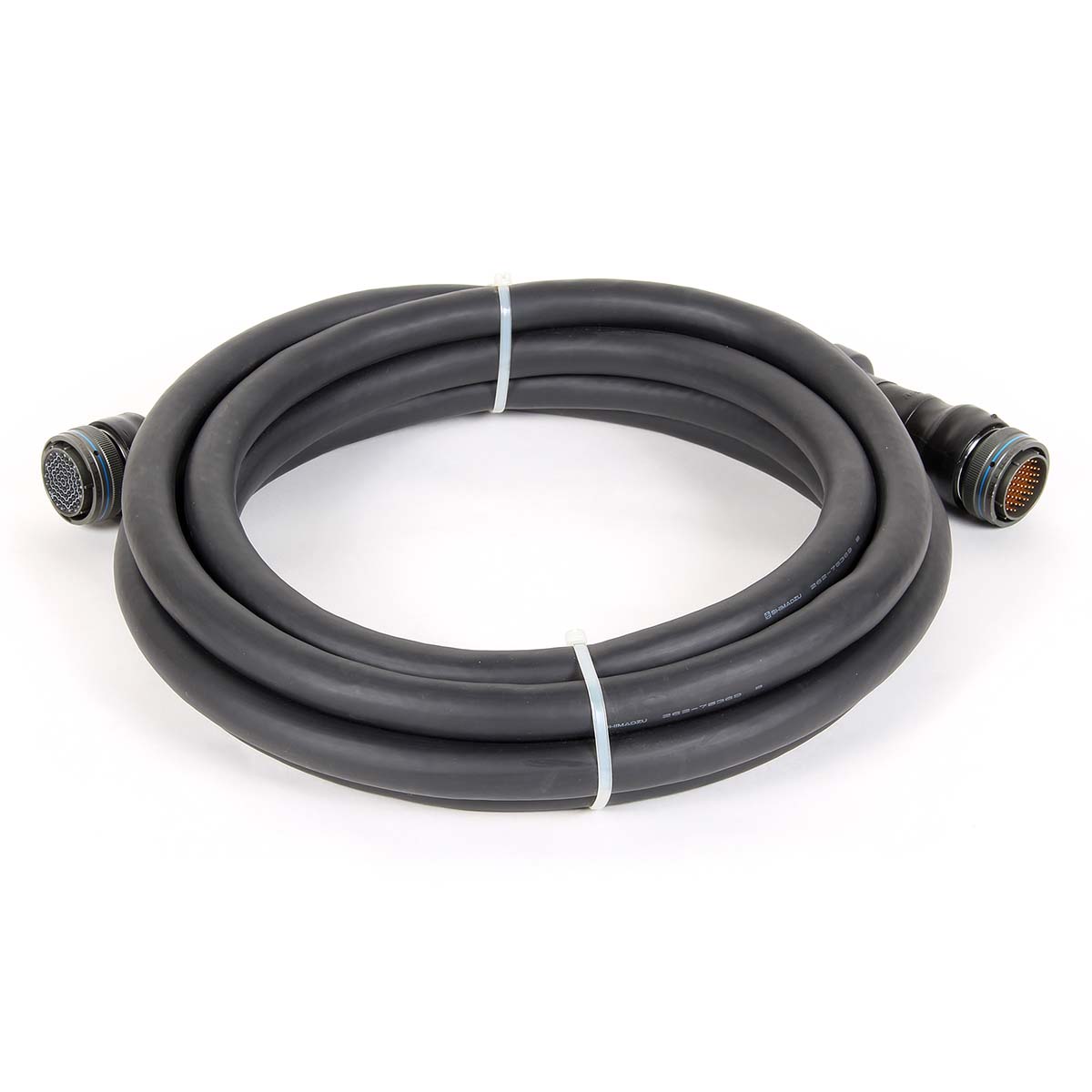

Shimadzu TMP-4304LMTC Interconnect CableCall for Price
