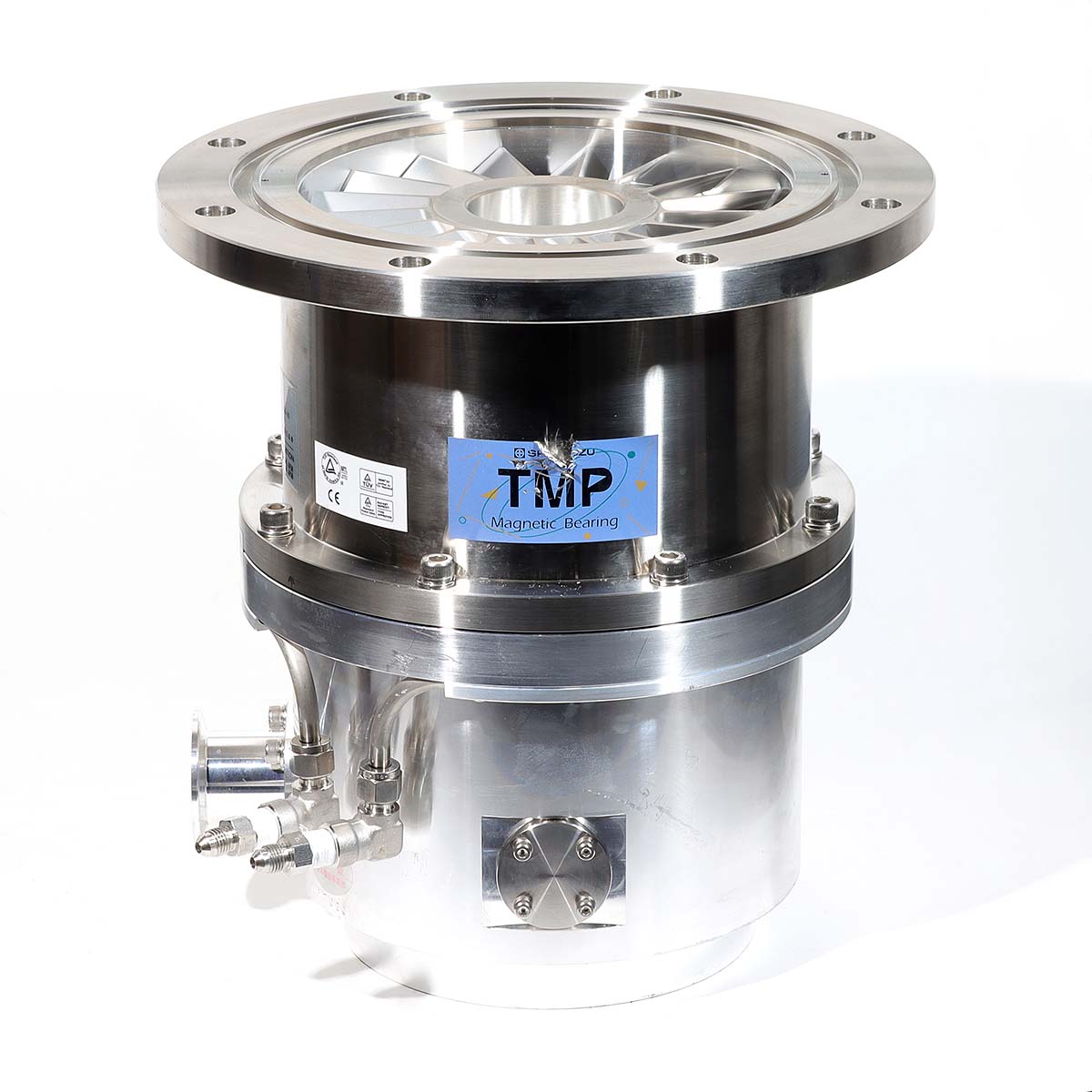

Shimadzu TMP-1103 Series - SERVICE
Call for Price
Consumable parts vary with model type. Pricing is determined by model configuration and hard parts damage.
Shimadzu TMP-1103LMP, TMP-1103LMPC, TMP-1103MP, TMP-1103MPC - Scope of Work
PTB Sales will perform the following:
- Diagnostic check of:
- Motor
- Electronic sensors
- Electromagnets (MagLev)
- Dimensional and visual inspections off all critical mechanical components and stress points
- All stainless steel bolts replaced with NEW
- All seals replaced
- All O-rings replaced
- Bearings replaced with OEM specified bearings
- Motor balancing to meet or exceed OEM specification – PTB has developed a proprietary method for balancing
- Fine tuning and levitation adjustment (MagLev)
- Levitation test (MagLev)
- Vibration analysis
- Rotational speed verified
- Ultimate vacuum verified
- Leak check to 6.5 x 10-8 Torr
- Extended testing in customer specific configuration
- Picture taken of turbopump’s mechanical configuration
- Verification of model and serial number
- Test data sheet generated
Exceptional customer service and engineering support. Fast turnarounds. Low prices.
PTB Sales is the national leader in Shimadzu turbo repairs.
Our state of the art 27,853 sq ft remanufacturing facility conforms to ISO 9001 quality standards, and is supported by an engineering team with over 90 years combined experience in vacuum technology. Our pump technicians, led by a factory-trained mechanic, have over 100 years combined experience.
Look no further. Let PTB Sales support your success.
Image Legend
1. High frequency motor
2. Receptacle
3. Drive shaft
4. Rotor blade
5. Stator blade
6. Spacer
7. Radial magnetic bearing
8. Axial magnetic bearing
9. Touch-down bearing
10. Gap sensor (pipe connection port)
11. Inlet flange
12. Outlet flange
13. Protective net
14. Cooling water pipeline
Request an RMA Return Material Authorization
Procedures for shipping used equipment to PTB Sales:
- Seal off the exhaust and inlet of the pump.
- Attach our pump declaration form to the equipment to declare what contaminants the equipment has been exposed to.
There is a $300 Evaluation Fee. This gets applied to the cost of repair.
