Shimadzu TMP-1503LMC - REBUILT
Call for Price
Out of stock
SKU
REBUILT_TMP1503LMC
| Weight | 97 lbs |
|---|---|
| Pumping Speed | 1,500 l/s |
| Ultimate Pressure | 1 x 10-7 Pa |
Shimadzu TMP-1503LMC Turbomolecular Vacuum Pump - REBUILT
This Shimadzu TMP-1503LMC high pumping throughput molecular pump is clean. View our inventory of Shimadzu turbo pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Turbomolecular pump | TMP-1503LM | TMP-1503LMC | |
|---|---|---|---|
| Inlet flange | VG250 / ICF305 / ISO250B | ||
| Outlet flange | KF40 | ||
| Cooling method | Water | ||
| Ultimate pressure (after baking) | 10-8 Pa order | 10-7 Pa order | |
| Maximum allowable Argon gas flow rate | 500 mL/min (Note 2) |
800 mL/min | |
| Maximum allowable inlet pressure (N2 continuous exhaust) |
133 Pa | ||
| Maximum allowable outlet pressure | 270 Pa | ||
| Pumping speed | N2 | 1,500 l/s | |
| He | 1,200 l/s | ||
| H2 | 800 l/s | ||
| Compression ratio | N2 | 6 x 108 | |
| He | 1 x 104 | ||
| H2 | 1 x 103 | ||
| Rated speed | 30,300 rpm | ||
| Start-up time | 7 minutes or less | ||
| Mounting position | In any desired direction | ||
| Bake-out temperature at an inlet flange | 120°C or less | ||
| Vibration level (by Shimadzu's method) | 0.01 µm or less (0-peak) | ||
| Recommended flow rate of purge gas | 20 to 30 mL/min (Note 3) | ||
| Recommended pumping speed of backing pump in case of gas purge | 600 L/min or more | ||
| Environmental Temperatures | 0 to 40°C | ||
| Admissible ambient magnetic field | Radial direction | 3 mT | |
| Axial direction | 15 mT | ||
| Water | Flow rate | 1 to 3 L/min | |
| Pressure | 0.2 to 0.5 MPa | ||
| Temperature | 5 to 30°C | ||
| Mass | 42 kg / 92.59 lbs | ||
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Shimadzu TMP-1503LMC Turbomolecular Vacuum Pump - REBUILT
Related Products
-
Shimadzu TMP-3003LM - REBUILTCall for Price
-

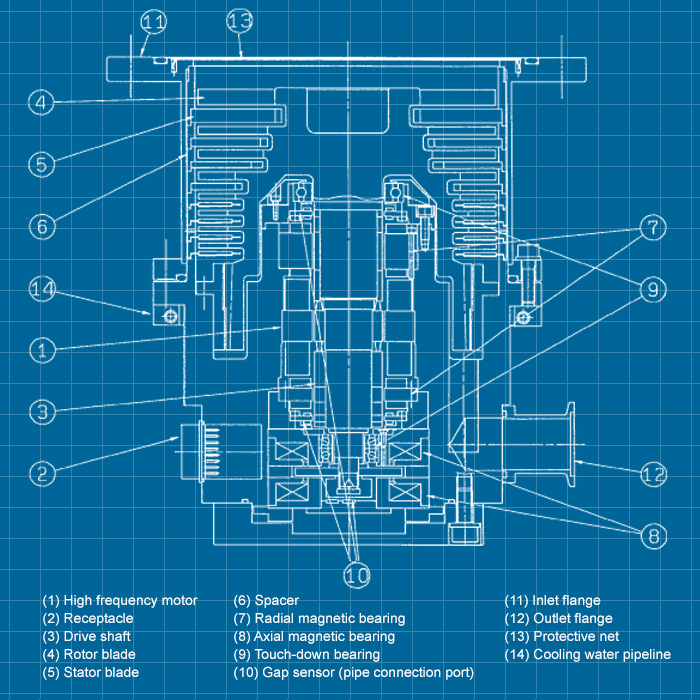

Shimadzu TMP-1503 Series - SERVICECall for Price
