Shimadzu TMP-3403LMC - REBUILT
Weight
155 lbs
Pumping Speed
3,300 l/s
Ultimate Pressure
1 x 10-7 Pa

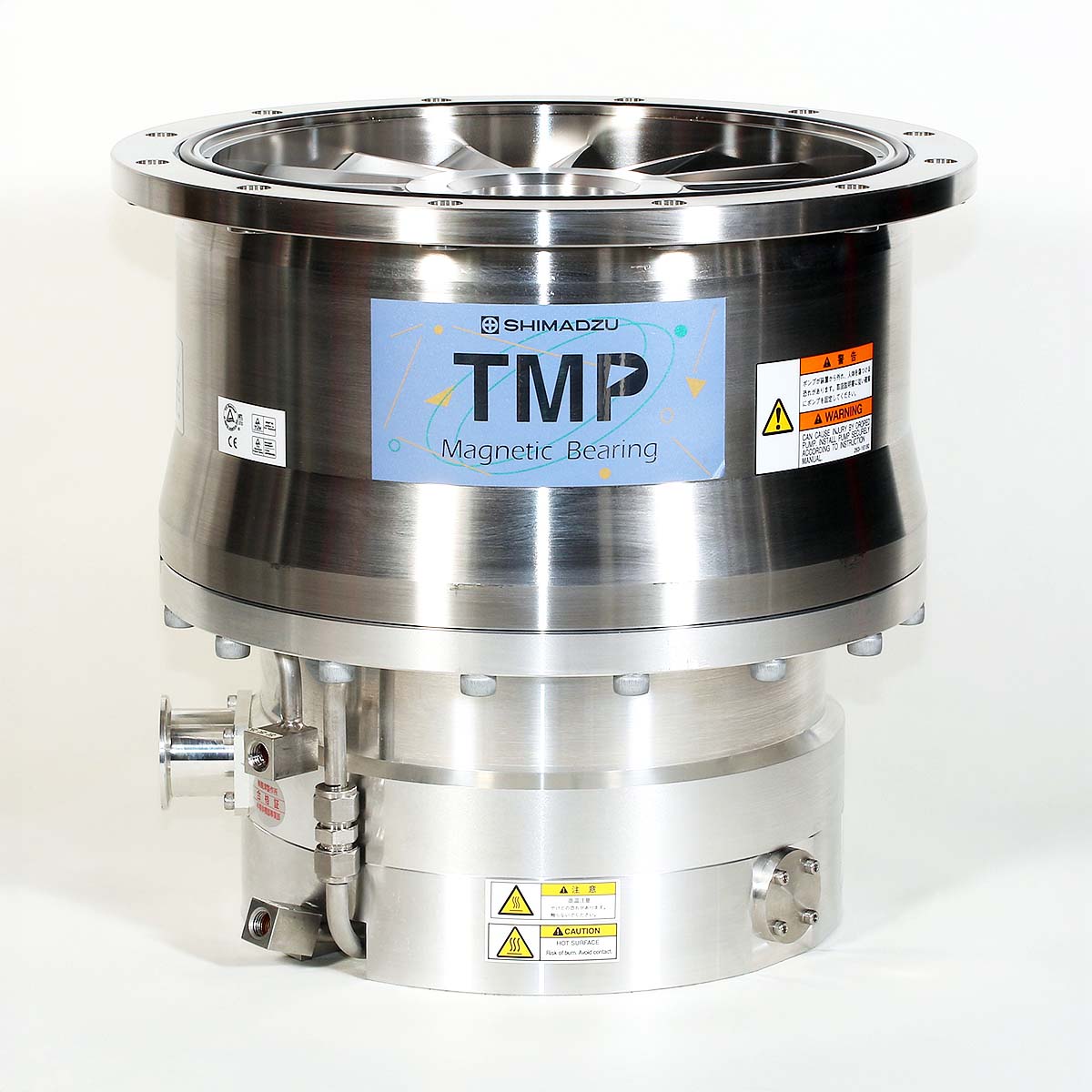

Shimadzu TMP-3403LMC Turbomolecular Vacuum Pump - REBUILT

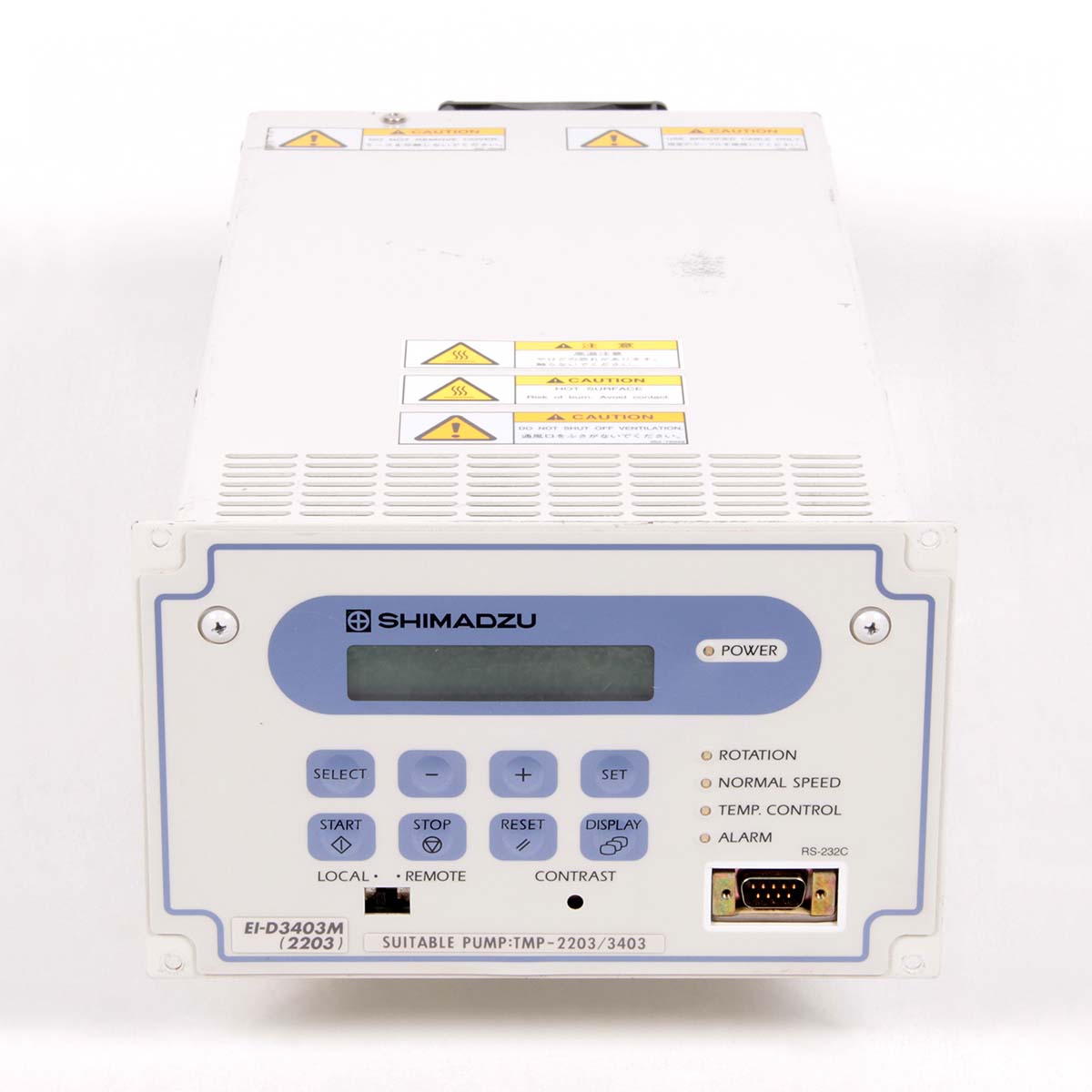

This Shimadzu TMP-3403LMC high pumping throughput molecular pump includes a controller and cable, and a one year warranty. View our inventory of Shimadzu turbo pumps .
Questions? send an email to our sales team!
Ultimate pressure (after baking)
10-7 Pa order (10-9 Torr)
Maximum Argon gas throughput
2,200 ml/min
Maximum allowable inlet pressure (N2 )
10 Pa
Maximum allowable outlet pressure
270 Pa
Pumping speed
N2 (3,300 l/s), H2 (3,300 l/s), He (2,400 l/s)
Compression ratio
N2 (1 × 109 ) He (1 × 105 ), H2 (6 × 103 )
Rated speed
22,020 rpm
Start-up time
15 minutes or less
Mounting position
In any direction
Vibration level
0.01 m or less (0-peak)
Inlet flange
VG350, ISO-320
Admissible throughput of purge gas
20 to 30 ml/min
Base area temperature
60 to 75
Weight
70 kg
Specifications
Type
Label
Description
Download
Shimadzu TMP 3203 - 3403 - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
