Shimadzu TMP-3304LMTC - REBUILT
Weight
186 lbs
Pumping Speed
3,200 l/s
Ultimate Pressure
1 x 10-7 Pa

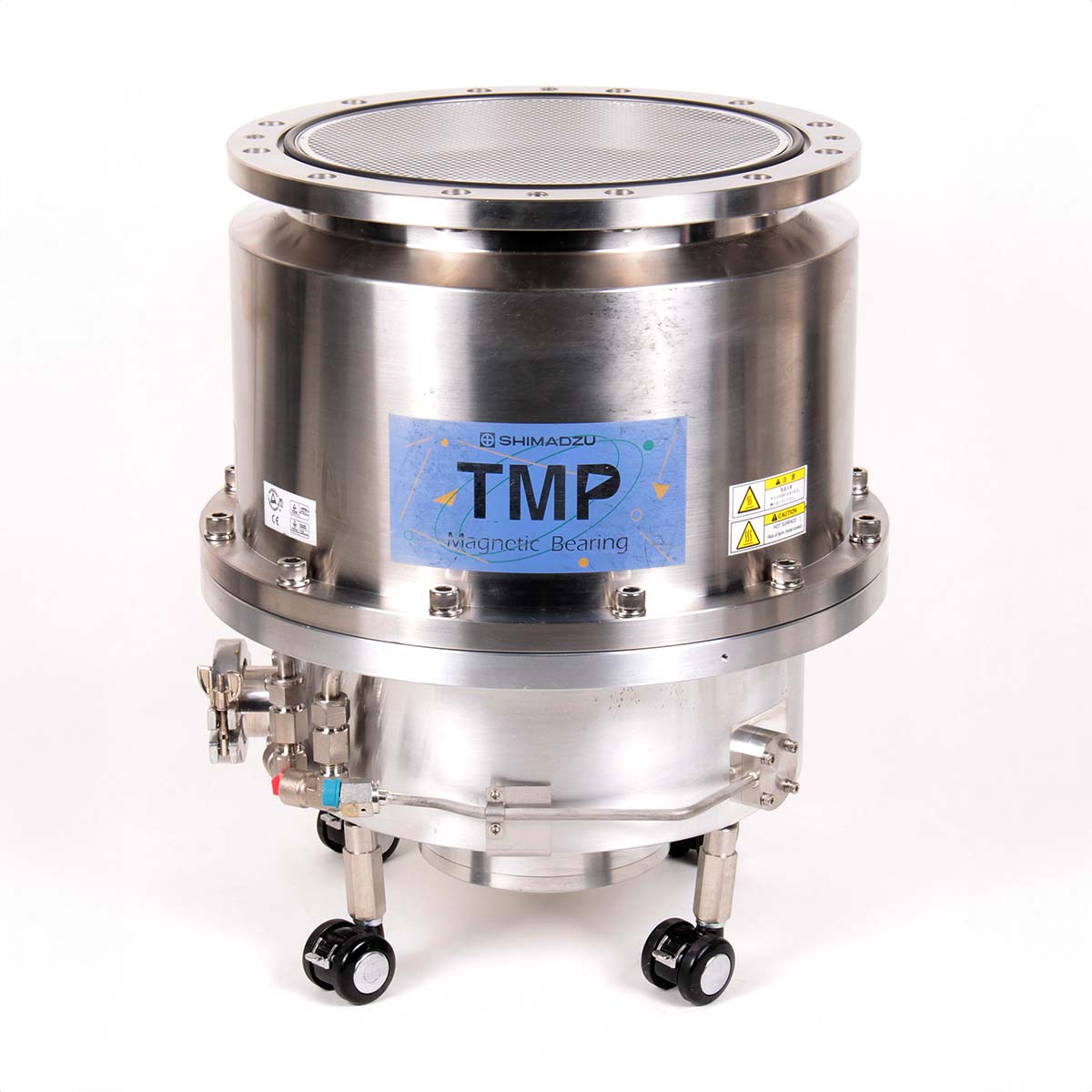

Shimadzu TMP-3304LMTC Turbomolecular Vacuum Pump - REBUILT
This Shimadzu TMP-3304LM high pumping throughput molecular pump includes a controller and cable with a one year warranty. It is also available as a package with a V-TEX Penduroll pendulum control valve. The flange is a VG300. View our inventory of Shimadzu turbo pumps .
Questions? send an email to our sales team!
Specifications
TMP-3304LM
TMP-3304LMC
Inlet flange
VG350 / VG300 / ISO320B
Outlet flange
KF40
Cooling method
Water
Ultimate pressure (after baking) (Note 1)
10-7 Pa order
Max. allowable Argon gas flow rate
1,500 ml/min (Note 1)
1,900 ml/min
Max. allowable inlet pressure (N2 continuous exhaust)
40 Pa
Max. allowable outlet pressure
270 Pa
Pumping speed (Note 2)
N2
3,200 l/s
He
3,100 l/s
H2
2,200 l/s
Ar
3,100 l/s
Compression ratio
N2
1 x 109 or more
He
1 x 105
H2
6 x 103
Rated speed
27,600 rpm
Start-up time
12 minutes or less
Mounting position
In any desired direction
Vibration level (by Shimadzu's method)
0.01 µm or less (0-peak)
Recommended flow rate of purge gas
30 ml/min (Note 1)
Recommended pumping speed of backing pump in case of gas purge
1,500 l/min or more
Environmental temperatures
0 to 40 degrees C.
Admissible ambient magnetic field
Radial direction
3 mT
Axial direction
15 mT
Water
Flow rate
2 to 4 l/min
Pressure
0.2 to 0.5 MPa
Temperature
5 to 25 degrees C.
Weight
84 kg
(Note 1) ml/min : volume flow rate at 0 degrees C.
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
