Shimadzu TMP-403LM - REBUILT
| Weight |
35 lbs |
| Pumping Speed |
420 l/s |
| Ultimate Pressure |
1 x 10-8 Pa |
|---|

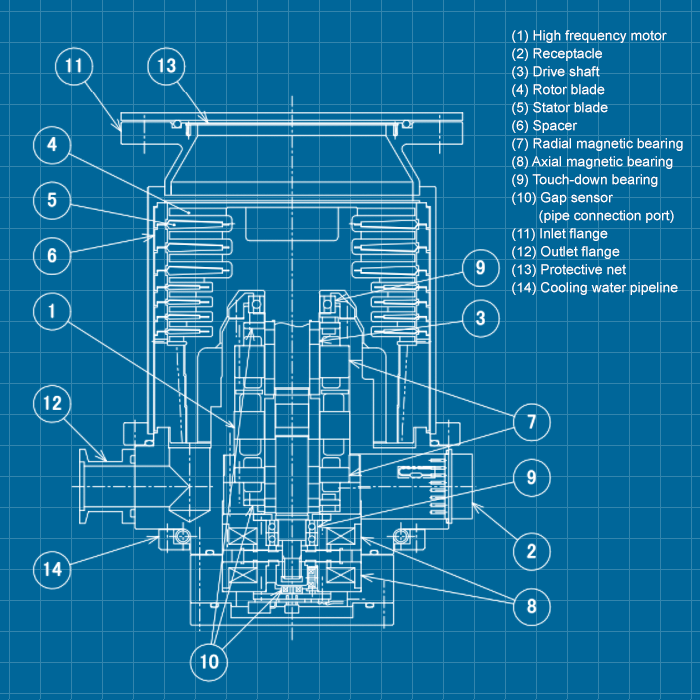

Shimadzu TMP-403LM Turbomolecular Vacuum Pump - REBUILT
This Shimadzu TMP-403LM high pumping throughput molecular pump is clean. View our inventory of Shimadzu turbo pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| urbomolecular pump |
TMP-403M |
TMP-403MC |
TMP-403LM |
TMP-403LMC |
| Suitable power supply unit |
EI-D303M |
| Cooling method |
Cooling fan |
Water |
| Ultimate pressure (Note 1) |
10-8 Pa order |
10-7 Pa order |
10-8 Pa order |
10-7 Pa order |
Maximum allowable inlet pressure
(N2) |
1.3 Pa |
200 Pa |
| Maximum allowable outlet pressure |
40 Pa |
400 Pa |
| Pumping speed (Note 4) |
N2 |
420 l/s |
| He |
360 l/s |
| H2 |
340 l/s |
| Compression ratio |
N2 |
1 x 109 |
| He |
8 x 104 |
| H2 |
1 x 104 |
| Rated speed |
45,000 rpm |
| Start-up time |
5 minutes or less |
| Mounting position |
In any desired direction (Note 7) |
| Bake-out temperature at an inlet flange |
120°C or less |
| Vibration level (by Shimadzu's method) |
0.012 µm or less (0-peak) |

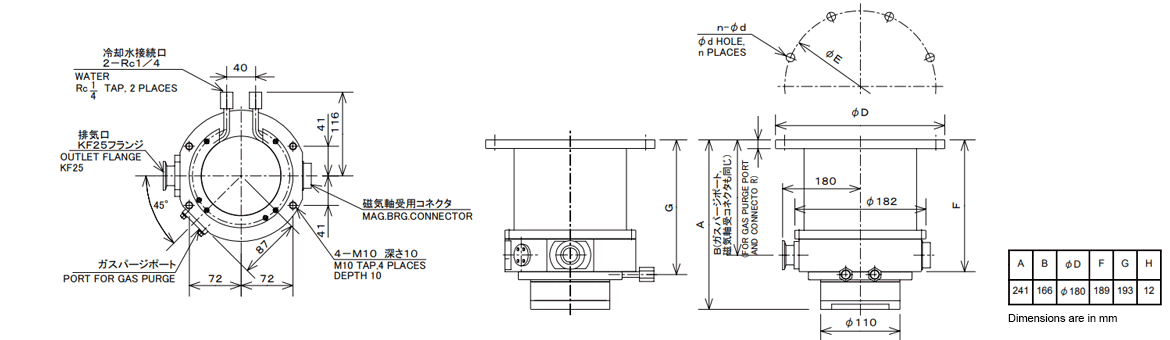

| Inlet flange |
ICF203 (Note 6) |
| Outlet flange |
KF25 |
| Mass |
14 kg |
| Admissible throughput of purge gas |
20 to 30 ml/min (Note 8) |
| Admissible pumping speed of backing vacuum pump in case of gas purge |
200 l/min or more |
| Environmental temperatures |
Operation: 0 to 40°C / Storage: -25 to 70°C |
| Admissible ambient magnetic field |
Radial direction |
3 mT |
| Axial direction |
15 mT |
| Water |
Flow rate |
N/A |
1 to 3 l/min |
| Pressure |
0.2 to 0.5 MPa |
| Temperature |
5 to 30°C |
- (Note 1) When using a metal at the inlet flange. When using an o-ring gasket
| Type |
Label |
Description |
Download |
|
|
Shimadzu TMP 403 - REBUILT |
Instruction Manual |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Shimadzu TMP-403LM Turbomolecular Vacuum Pump - REBUILT
262-81455-41 / 2628145541 TMP-403LM ICF203
262-81455-42 / 2628145542 TMP-403LM VG150
262-81455-43 / 2628145543 TMP-403LM ISO160
262-81455-51 / 2628145551 TMP-403LMC ICF203
262-81455-52 / 2628145552 TMP-403LMC VG150
262-81455-53 / 2628145553 TMP-403LMC ISO160
262-81455-61 / 2628145561 TMP-403M ICF203
262-81455-62 / 2628145562 TMP-403M VG150
262-81455-63 / 2628145563 TMP-403M ISO160
262-81455-71 / 2628145571 TMP-403MC ICF203
262-81455-72 / 2628145572 TMP-403MC VG150
262-81455-73 / 2628145573 TMP-403MC ISO160
