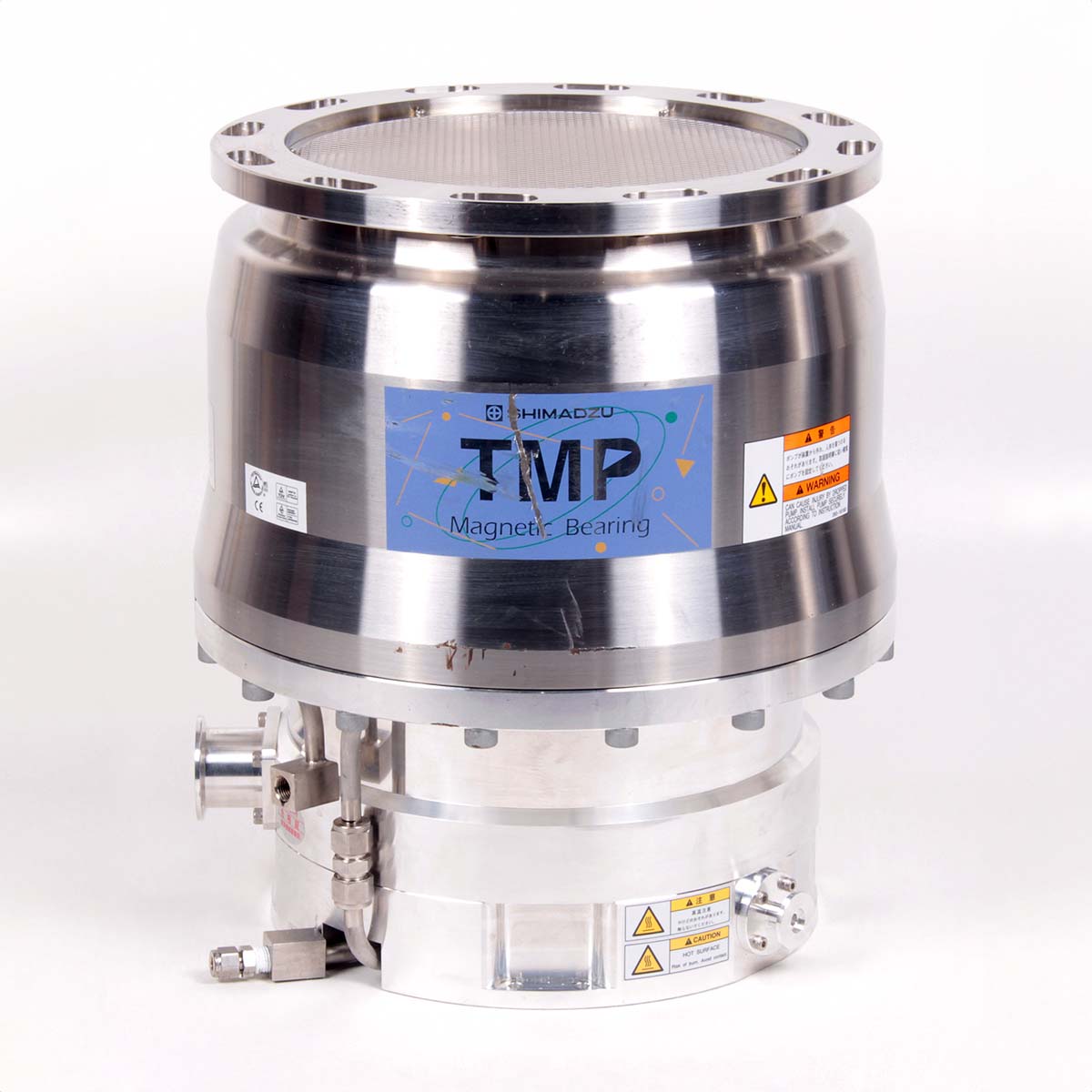

Shimadzu TMP-V2304LM - REBUILT

Name: Shimadzu TMP-V2304LM - REBUILT
Brand: Shimadzu
SKU: REBUILT_TMPV2304LM

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_TMPV2304LM

Request For Quote

Weight	100 lbs
Pumping Speed	2,100 l/s
Ultimate Pressure	1 x 10^-7 Pa

Description

Shimadzu TMP-V2304LM Turbomolecular Vacuum Pump - REBUILT

All-in-one × compact
Compact model with integrated power supply unit: The power supply unit is integrated in the pump. No need to install cables or use a control rack
Improved pumping performance: High pumping efficiency is achieved by applying rarefied gas flow analysis and structure analysis technology.
Environmentally-friendly: Power-saving (up to 25% reduction in power consumption than previous models)

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet flange

VG250 / ISO250B

Outlet flange

KF40

Cooling method

Water

Ultimate pressure (after baking)

10^-7 Pa order

Maximum allowable Argon gas flow rate (Note 1)

600 mL/min (Note 2)

Maximum allowable inlet pressure (N₂ continuous exhaust) (Note 1)

4.5 Pa

Maximum allowable outlet pressure (N₂ continuous exhaust) (Note 1)

200 Pa

Pumping speed (Note 3) (Note 4)

N₂

2,100 l/s

2,000 l/s

Compression ratio

N₂

1 x 10⁸ or more

5 x 10³

H₂

9 x 10²

Rated speed

33,700 rpm

Start-up time

9 minutes or less

Mounting position

In any desired direction

Vibration level (by Shimadzu's method)

0.01 µm or less (0-peak)

Recommended pumping speed of backing pump in case of gas purge

1,500 L/min or more

Display

LED

POWER / STATUS / ROTATION / NET

Communication

Contact

REMOTE (D-sub 37 pin female, Screw lock size M2.6)

Input	START / STOP / RESET / LOW SPEED
Output	ROTATION / ACC. / BRAKE / NORMAL / REMOTE / ALARM / WARNING / CONNECTION

Serial

RS-232C / RS-485 (D-sub 9 pin male

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Shimadzu TMP-V2304LM Turbomolecular Vacuum Pump - REBUILT
