VAT 10846-PE08 ISO-200 - REBUILT
Call for Price
In stock
SKU
REBUILT_10846-PE08
VAT 10846-PE08 Series 108 DN ISO-200 UHV Vacuum Gate Valve
The standard valve for UHV isolation applications in research and industry.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inside diameter (ID) in mm | DN 200 |
| Flange | ISO-F (compatible with ISO 1609) |
| Body material | Stainless steel |
| Actuator | Manual actuator with position indicator |
| Solenoid | No |
| Position indicator | Yes |
| Pressure min. | 1 x 10-10 mbar |
| Pressure max. | 1.6 bar (abs) |
| Feedthrough | Bellows |
| Sealing technology | VATLOCK-System |
| Sealhead description | Metal |
| Sealing materials | FKM (VITON®) |
| Molecular flow conductance l/s | 12,200 |
| Max. differential pressure closed position in bar | 1.6 |
| Max. pressure on seat side during opening in bar | 0.03 |
| Compressed air pressure max. in bar | 7 |
| Compressed air pressure min. in bar | 4 |
| Valve body temperature max. in °C | 250 |
| Actuator temperature max. in °C | 200 |
| Position Indicator temp. max. in °C | 80 |
| Weight in kg / lbs | 34 / 74.96 |
| Type | Label | Description | Download |
|---|---|---|---|
|
VAT Series 108 - REBUILT | Installation, Operating & Maintenance Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
VAT Fabrication No. 10846-PE08 Series 108 DN ISO-200 UHV Vacuum Gate Valve
Related Products
-
VAT 14046-PE44 ISO-200 - REBUILTCall for Price
-

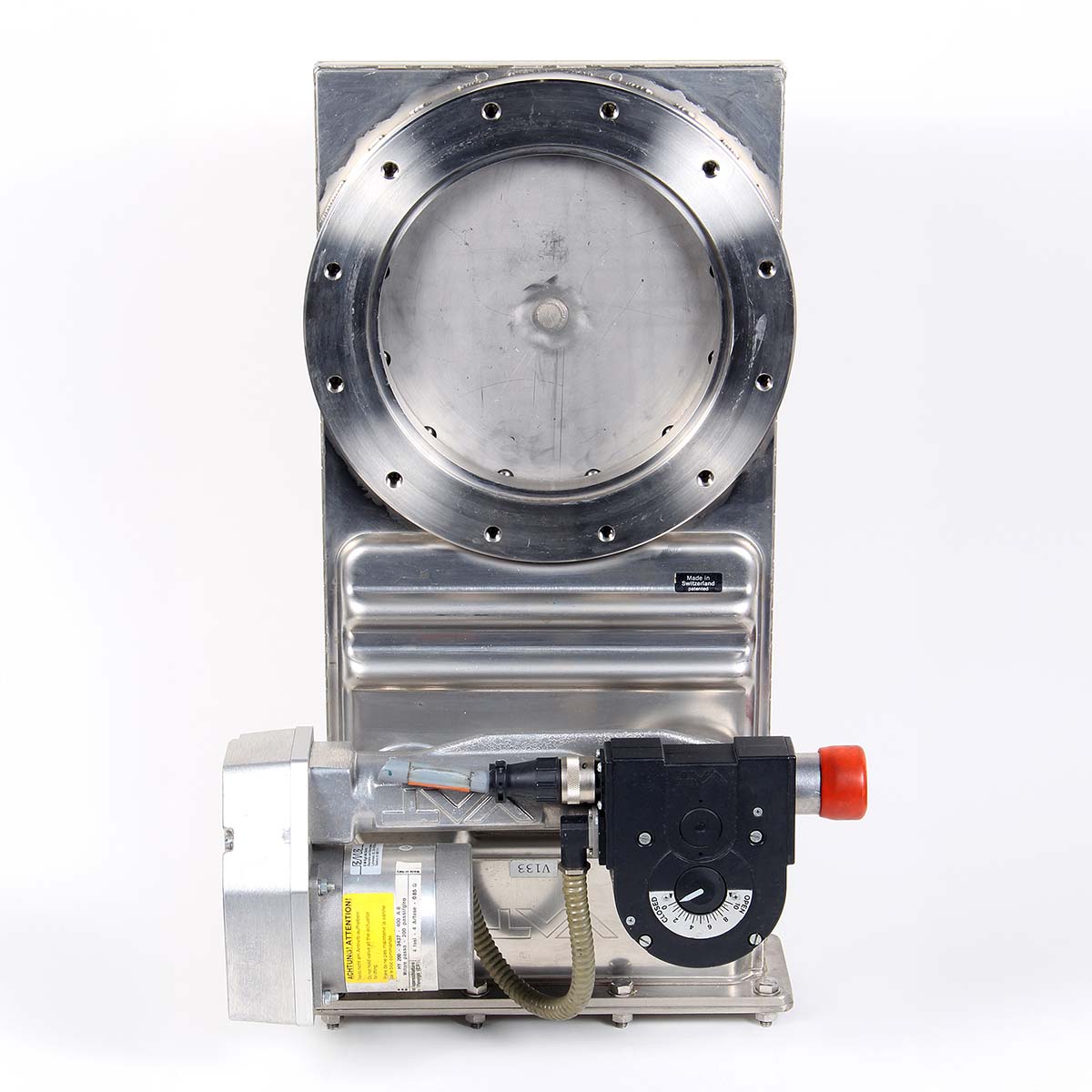

VAT 64246-PE52 ISO-200 - REBUILTCall for Price
-
