VAT 64248-PE52 ISO-250 - REBUILT

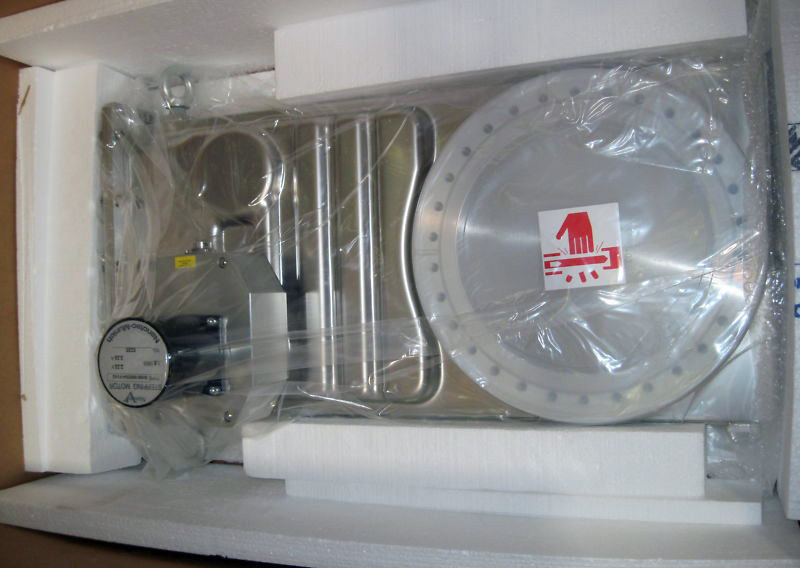

VAT 64248-PE52 DN ISO-250 HV Vacuum Gate Valve
Shut-off device for pumps in process systems, industrial applications, transfer valve.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inside diameter (ID) in mm |
DN 250 |
| Flange |
ISO-F (compatible with ISO 1609) |
| Body material |
Stainless steel |
| Actuator |
Pneumatic actuator with position indicator without solenoid valve double acting |
| Solenoid |
No |
| Position indicator |
Yes |
| Pressure min. |
1 x 10-8 mbar |
| Pressure max. |
1.2 bar (abs) |
| Feedthrough |
Rotary feedthrough, HV |
| Sealing technology |
VATLOCK-System |
| Sealhead description |
FKM (VITON®) |
| Sealing materials |
FKM (VITON®) |
| Molecular flow conductance l/s |
22,000 |
| Max. differential pressure closed position in bar |
1.2 |
| Max. pressure on seat side during opening in bar |
0.03 |
| Compressed air pressure max. in bar |
7 |
| Compressed air pressure min. in bar |
4 |
| Volume of air cylinder in l |
0.75 |
| Closing or opening time in sec. |
4 |
| Valve body temperature max. in °C |
150 |
| Actuator temperature max. in °C |
50 |
| Position Indicator temp. max. in °C |
80 |
| Weight in kg / lbs |
62 / 136.69 |
| Type |
Label |
Description |
Download |
|
|
VAT Series 64.2, DN 160 - 400 - REBUILT |
Installation, Operating & Maintenance Instructions |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
VAT Fabrication No. 64248-PE52 Series 64 DN ISO-250 HV Vacuum Gate Valve
