Adixen ATH 500 M - REBUILT

Name: Adixen ATH 500 M - REBUILT
Brand: Adixen Alcatel
SKU: REBUILT_ATH500M

Be the first to review this product

Starting at $7,400

In stock

Only %1 left

SKU

REBUILT_ATH500M

Request For Quote

Weight	37 lbs
Pumping Speed	500 cfm
Ultimate Pressure	< 1 × 10^-8 mbar

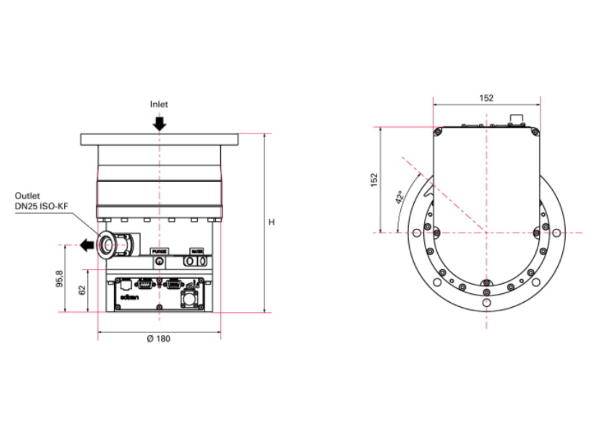

Dimensions

Description

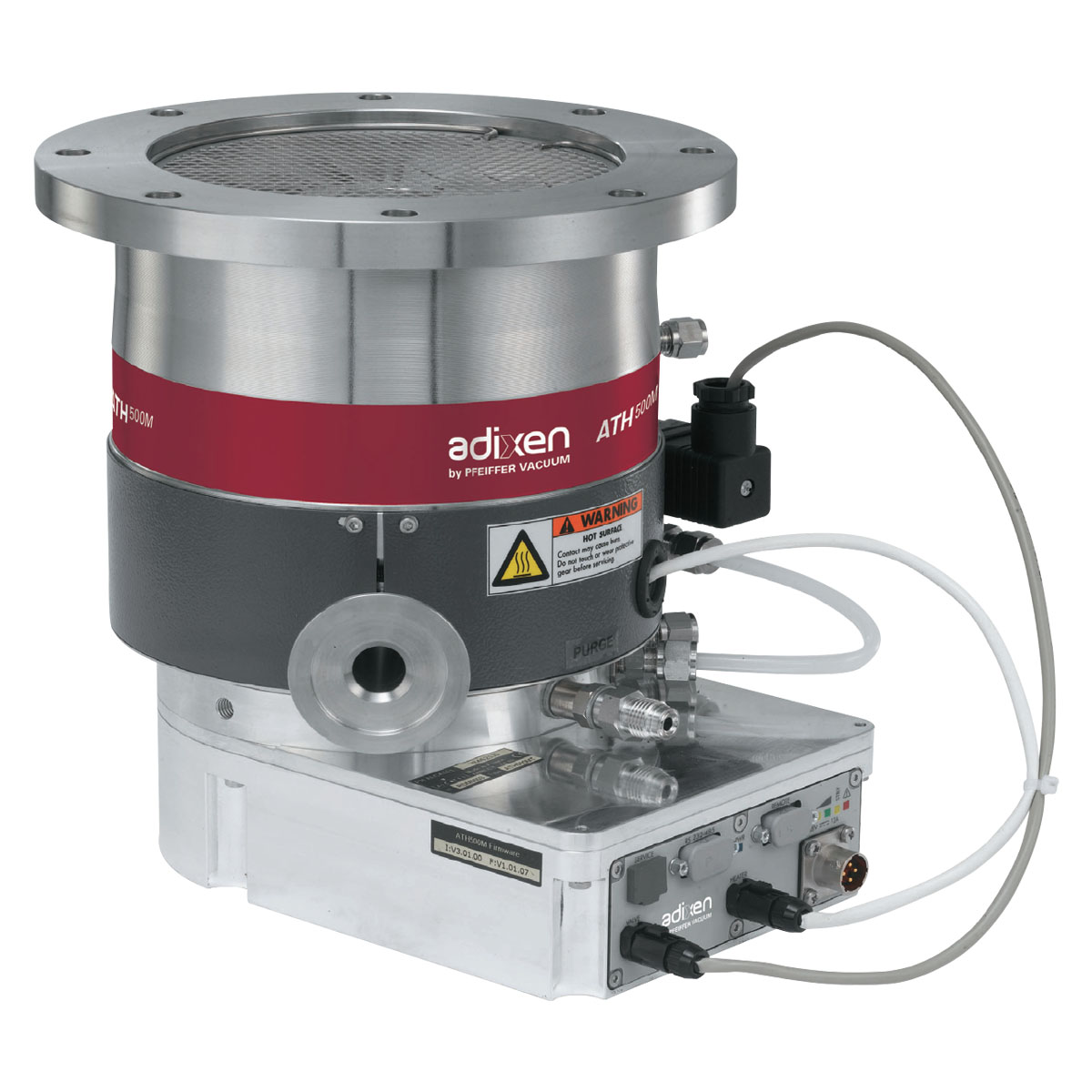

Pfeiffer Adixen Alcatel ATH 500 M Turbomolecular Vacuum Pump - REBUILT

Price includes on-board controller.

One year warranty. We offer Pfeiffer Adixen Alcatel turbo pump repair service. View our inventory of Adixen Alcatel turbo pumps.

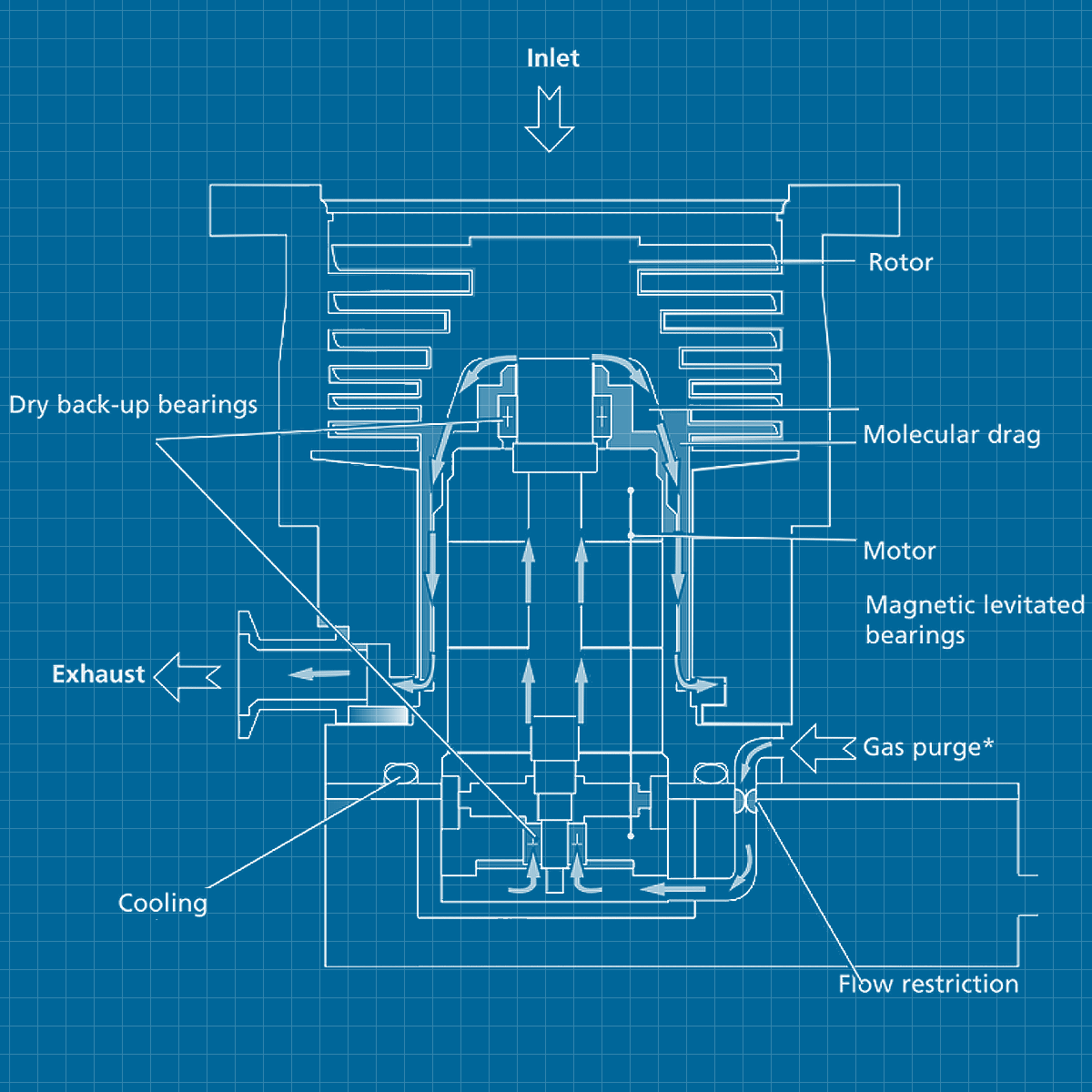

5-axis magnetically levitated turbopump with drag stage for a pump speed of up to 550 l/s for N₂
DN 160 ISO-K inlet flange
Compact integrated drive electronics
Installation in any orientation
Remote, water cooled, non-heated
CE marked and ROHS compliant

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Max gas throughput N₂ (mbar*l/sec.)	4,000
Pumping speed l/sec (cfm)	500
Compression ratios	N₂: 8.0 x 10⁶ He: 1.0 x 10⁴ H₂: 2.0 x 10²
Ultimate pressure Torr (mbar)	< 1 x 10^-8
Inlet flange	ISO160-K
Foreline flange	QF40
Max. foreline pressure Torr (mbar)	1.5 (2.7)
Orientation	Any
Cooling method	Water
Weight lbs (kg)	37 (17)

Specifications

Digital Manuals

Type	Label	Description	Download
	Adixen Pfeiffer ATH 500 M/MT - REBUILT	Operating Instructions	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Adixen Alcatel ATH 500 M Turbomolecular Vacuum Pump - REBUILT

V24121G1  DN 160 ISO-K, Remote, Water cooled, Non-heated
V24121G2  DN 160 ISO-F, Remote, Water cooled, Non-heated
VY4121G3  DN 160 ISO-F, Profibus, Water cooled, Non-heated
VY4121G4  DN 160 ISO-K, Profibus, Water cooled, Non-heated
V13121B6  DN 100 ISO-F, Remote, Water cooled, Non-heated
VY362100  DN 100 ISO-F, Profibus, Water cooled, Non-heated
V2362100  DN 100 ISO-F, Remote, Water cooled, Non-heated
VY312100  DN 100 ISO-K, Profibus, Water cooled,Non-heated
V2312100  DN 100 ISO-K, Remote, Water cooled, Non-heated
VY322100  DN 100 CF-F, Profibus, Water cooled, Non-heated
V2322100  DN 100 CF-F, Remote, Water cooled, Non-heated
VY462100  DN 160 ISO-F, Profibus, Water cooled, Non-heated
V2462100  DN 160 ISO-F, Remote, Water cooled, Non-heated
VY412100  DN 160 ISO-K, Profibus, Water cooled, Non-heated
V2412100  DN 160 ISO-K, Remote, Water cooled, Non-heated
VY422100  DN 160 CF-F, Profibus, Water cooled, Non-heated
V2422100  DN 160 CF-F, Remote, Water cooled, Non-heated
VY361100  DN 100 ISO-F, Profibus, Air cooled, Non-heated
V2361100  DN 100 ISO-F, Remote, Air cooled, Non-heated
VY311100  DN 100 ISO-K, Profibus, Air cooled, Non-heated
V2311100  DN 100 ISO-K, Remote, Air cooled, Non-heated
VY321100  DN 100 CF-F, Profibus, Air cooled, Non-heated
V2321100  DN 100 CF-F, Remote, Air cooled, Non-heated
V2461100  DN 160 ISO-F, Remote, Air cooled, Non-heated
VY461100  DN 160 ISO-F, Profibus, Air cooled, Non-heated
VY411100  DN 160 ISO-K, Profibus, Air cooled, Non-heated
VY421100  DN 160 CF-F, Profibus, Air cooled, Non-heated
V2411100  DN 160 ISO-K, Remote, Air cooled, Non-heated
V2421100  DN 160 CF-F, Remote, Air cooled, Non-heated
