Agilent IDP-3 - REBUILT

Name: Agilent IDP-3 - REBUILT
Brand: Agilent Varian
SKU: REBUILT_IDP3

Be the first to review this product

Starting at $2,365

In stock

Only %1 left

SKU

REBUILT_IDP3

Request For Quote

Weight	21 lbs
Motor Power	0.16 hp
Pumping Speed	3.6 m³/h
Ultimate Pressure	3.3 x 10^-1 mbar

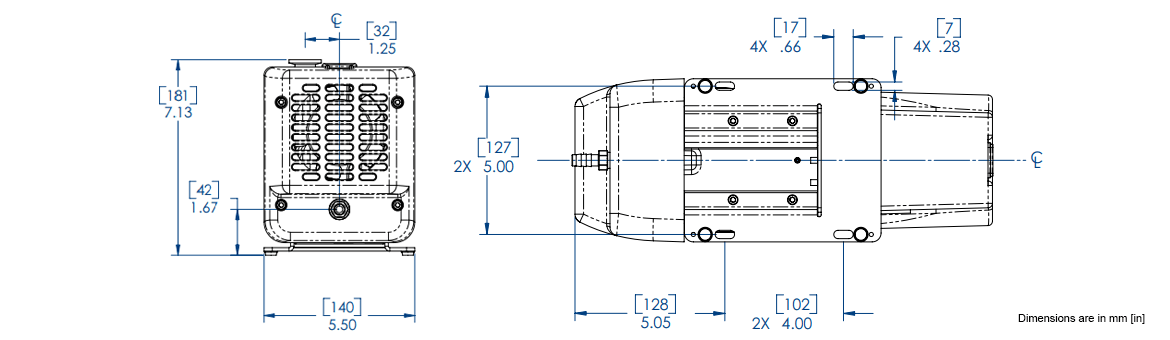

Dimensions

Description

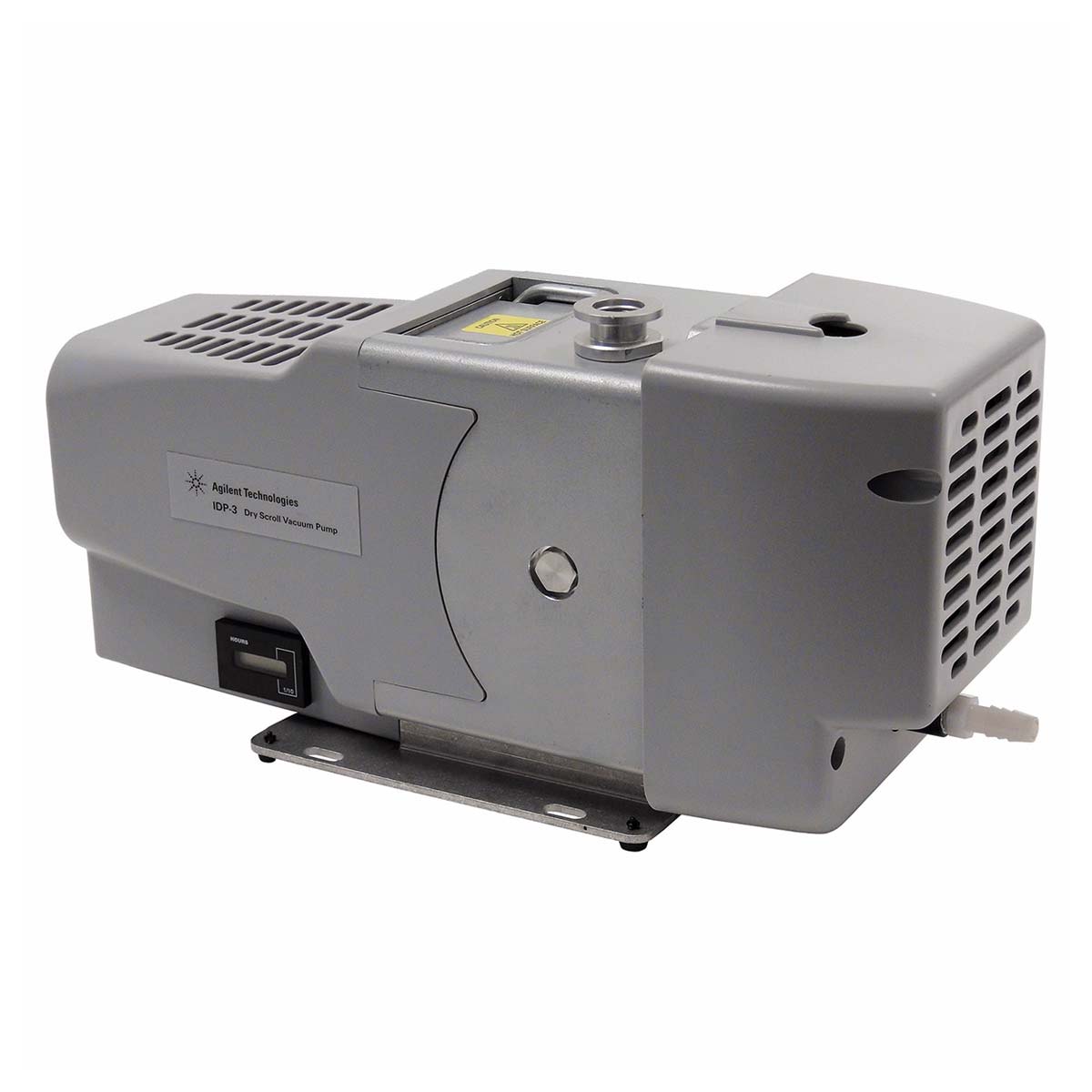

Agilent IDP-3 Dry Scroll Vacuum Pump - REBUILT

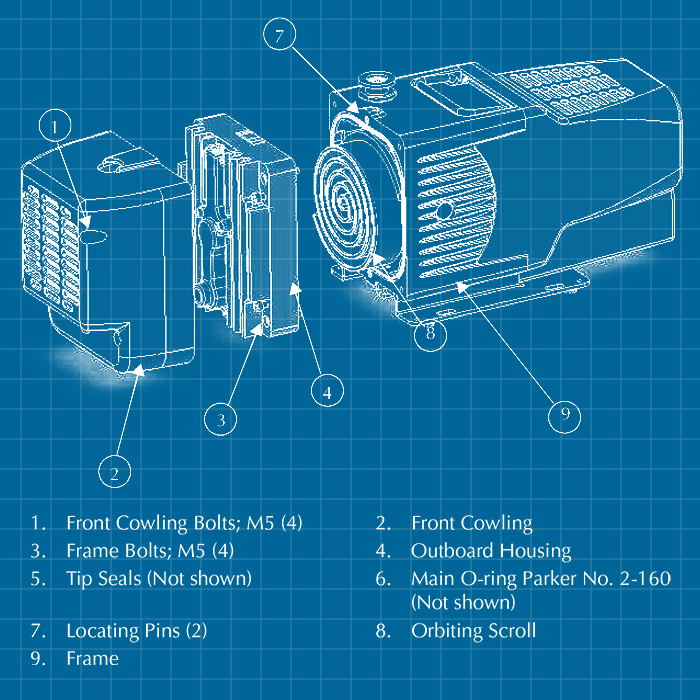

These Agilent IDP pumps are sold rebuilt and come with a one year warranty. The warranty does not cover tip seal maintenance. For example, per OEM specs, scroll pump tip seals must be replaced every 8,000 hours, or slightly less than 11 months, to maintain good base pressure.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Peak pumping speed	(60 Hz) 60 L/m, 3.6 m³/hr, 2.1 cfm (50 Hz) 50 L/m, 3.0 m³/hr, 1.8 cfm
Ultimate pressure	2.5 × 10^-1 Torr (3.3 × 10^-1 mbar, 33 Pa)
Maximum inlet pressure	1 atm (0 psig)
Maximum outlet pressure	1.4 atm (6.5 psig)
Exhaust connection	1⁄4-in. female nat’l pipe thread (10 mm hose barb provided)
Exhaust connection adapter	NW16 KF adapter provided
Gas ballast connection	1⁄8-in. female nat’l pipe thread
Ambient operating temperature	5 to 40°C (41 to 104°F)
Storage temperature	-20 to 60°C (-4 to 140°F)
Motor rating	0.16 horsepower (0.12 kW)
Motor thermal protection	Automatic
Rotation speed	60 Hz: 3,200 rpm 50 Hz: 2,600 rpm 24V DC: variable speed, factory setting: 3,200 rpm
Cooling	Air-cooled
Weight	9.5 kg (21 lbs)
Restrictions	No corrosive, explosive, particulate-forming gas
Leak rate (exhaust sealed)	< 1 × 10^-6 std-cc/sec helium
Noise level (ISO 11201)	55 dB(A)
Vibration at inlet (ISO 11201)	1.5 mm/sec
Compliance	CE, CSA, CSA/CUS, Semi S2-703, RoHS

Specifications

Digital Manuals

Type	Label	Description	Download
	Agilent IDP-3 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent IDP-3 Dry Scroll Vacuum Pump - REBUILT

IDP3A01         IDP-3  single-phase, 220 VAC, 50/60 Hz, Hour Meter
IDP3A21         IDP-3  220/230V, 50/60Hz, Inlet Valve, Hour Meter
IDP3B01         IDP-3  1-phase, 115 VAC, 60 Hz, Hour Meter
IDP3B11         IDP-3
IDP3B21         IDP-3  115V, 60Hz, Inlet Valve, Hour Meter
IDP3C01         IDP-3  1-phase, 100 VAC, 50/60 Hz, Hour Meter
IDP3C21         IDP-3  1-phase, 100 VAC, 50/60 Hz, Inlet Valve, Hour Meter
IDP3D01         IDP-3  24 VDC, 3,200 RPM
G3870-90057  	IDP-3  24 VDC, 3,100 RPM
