Agilent TriScroll 300 Inverter - NEW

Name: Agilent TriScroll 300 Inverter - NEW
Brand: Agilent Varian
SKU: NEW_TriScroll300Inv

Be the first to review this product

Starting at $8,968

In stock

Only %1 left

SKU

NEW_TriScroll300Inv

Request For Quote

Weight	57 lbs
Pumping Speed	15 m³/h
Ultimate Pressure	1.3 x 10^-2 mbar

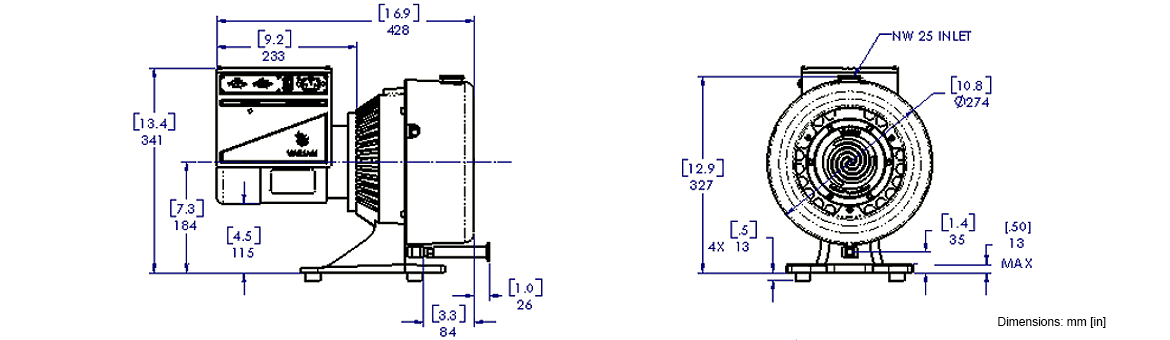

Dimensions

Description

Agilent TriScroll 300 Inverter Dry Scroll Vacuum Pump - NEW

Agilent Technologies’ unique, patented TriScroll series features two-stage dry scroll pumps that deliver high pumping speeds and low base pressure. The frequent maintenance requirements of oil-sealed rotary vane pumps are eliminated with dry scroll pumps, simplifying regulatory and environmental compliance, and eliminating oil disposal costs. Agilent TriScroll dry scroll pumps feature proven reliability and durability, providing consistent performance and superior cost of ownership.

The TriScroll 300 Inverter pump employs an innovative frequency inverter technology that delivers optimal and consistent performance at any voltage and frequency conditions worldwide.

The TriScroll 300 Inverter pump operates at a pumping speed of 250 liters/minute.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Pumping speed @ 60 Hz	250 l/m, 15 m³/hr, 8.8 cfm (at 60 Hz drive frequency, variable
Ultimate pressure	1.3 x 10^-2 mbar (1.0 x 10^-2 Torr)
Maximum inlet pressure	1.0 atmosphere (0 psig)
Maximum outlet pressure	1.1 atmosphere (1.5 psig)
Inlet connection	NW25
Exhaust connection	1/4" Female NPT with swivel
Exhaust connection adapter	NW16 KF adapter provided
Gas ballast	100-115V, 200-240V, 1-phase, 50/60Hz
Operating voltage	5°C to 40°C (41°F to 104°F)
Max. line current	200V; 5 A 240V; 4.2 A
Weight	57 lbs

Specifications

Digital Manuals

Type	Label	Description	Download
	Agilent TriScroll 300 Inverter - NEW	Installation & Operation Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent TriScroll 300 Inverter Dry Scroll Vacuum Pump - NEW

PTS03001INV    100-115V, 200-240V, 1-phase, 50/60Hz
