Agilent TriScroll 300 - NEW

Name: Agilent TriScroll 300 - NEW
Brand: Agilent Varian
SKU: NEW_TriScroll300

Be the first to review this product

Starting at $7,829

In stock

Only %1 left

SKU

NEW_TriScroll300

Request For Quote

Weight	58 lbs
Motor Power	0.75 hp
Pumping Speed	12.6 m³/h
Ultimate Pressure	1.3x10^-2 mbar

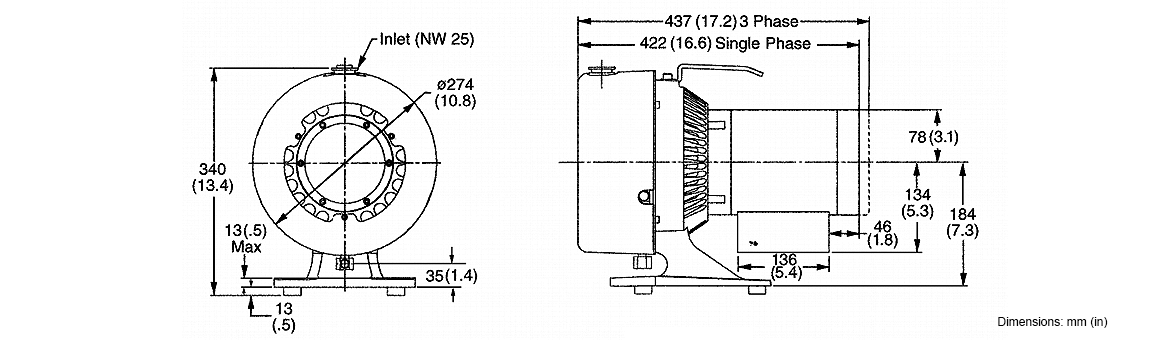

Dimensions

Description

Agilent TriScroll 300 Dry Scroll Vacuum Pump - NEW

Agilent Technologies’ unique, patented TriScroll series features two-stage dry scroll pumps that deliver high pumping speeds and low base pressure. The frequent maintenance requirements of oil-sealed rotary vane pumps are eliminated with dry scroll pumps, simplifying regulatory and environmental compliance, and eliminating oil disposal costs. Agilent TriScroll dry scroll pumps feature proven reliability and durability, providing consistent performance and superior cost of ownership.

The TriScroll 300 pump operates at a pumping speed of 300 liters/minute.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Base pressure (50/60 Hz)	1.3 x 10^-2 mbar (1 x 10^-2 Torr)
Exhaust Connection	NW16
Height	14 in
Inlet Connection	NW25
Maximum Inlet Pressure	1.0 atm (0 psig)
Noise Level	68 dB(A)
Operating Environment Temperature	5 to 40°C (41 to 104°F)
Pumping Speed (50 Hz)	12.6 m³/h (210 L/min)
Pumping Speed (60 Hz)	15 m³/h (250 L/min)
Shipping Weight	34.2 kg (75 lbs)
Weight (pump only)	26.4 kg (58 lbs)
Width	10.8 in

Specifications

Digital Manuals

Type	Label	Description	Download
	Agilent TriScroll 300 - NEW	Installation & Operation Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent TriScroll 300 Dry Scroll Vacuum Pump - NEW

PTS03001UNIV       1-phase motor, US cord
PTS03001UNIVEU     1-phase motor, Euro cord
PTS03001UNIVUK     1-phase motor, UK cord
PTS03003UNIV       3-phase motor
PTS03001UVPI       1-phase motor, w/ vacuum isolation valve (VPI), 120 V
PTS03001UVPIEU     1-phase motor, w/ VPI, 220 V, EU power cord
PTS03001UVPIUK     1-phase motor, w/ VPI, 220V, UK power cord
PTS03003200VPI     3-phase motor, w/ VPI, 200 V
PTS03003230VPI     3-phase motor, w/ VPI, 230 V TriScroll 300, 3Ø, with VPI, 380/415 V
PTS03003380415VPI  3-phase motor, w/ VPI, 460 V
