Agilent Varian Turbo-V 550 - REBUILT
Starting at
$6,800
In stock
Only %1 left
SKU
REBUILT_TurboV550
| Weight | 35 lbs |
|---|---|
| Pumping Speed | 350-550 l/s |
| Ultimate Pressure | < 1 x 10-10 mbar |
Agilent Varian Turbo-V 550 Turbomolecular Vacuum Pump - REBUILT

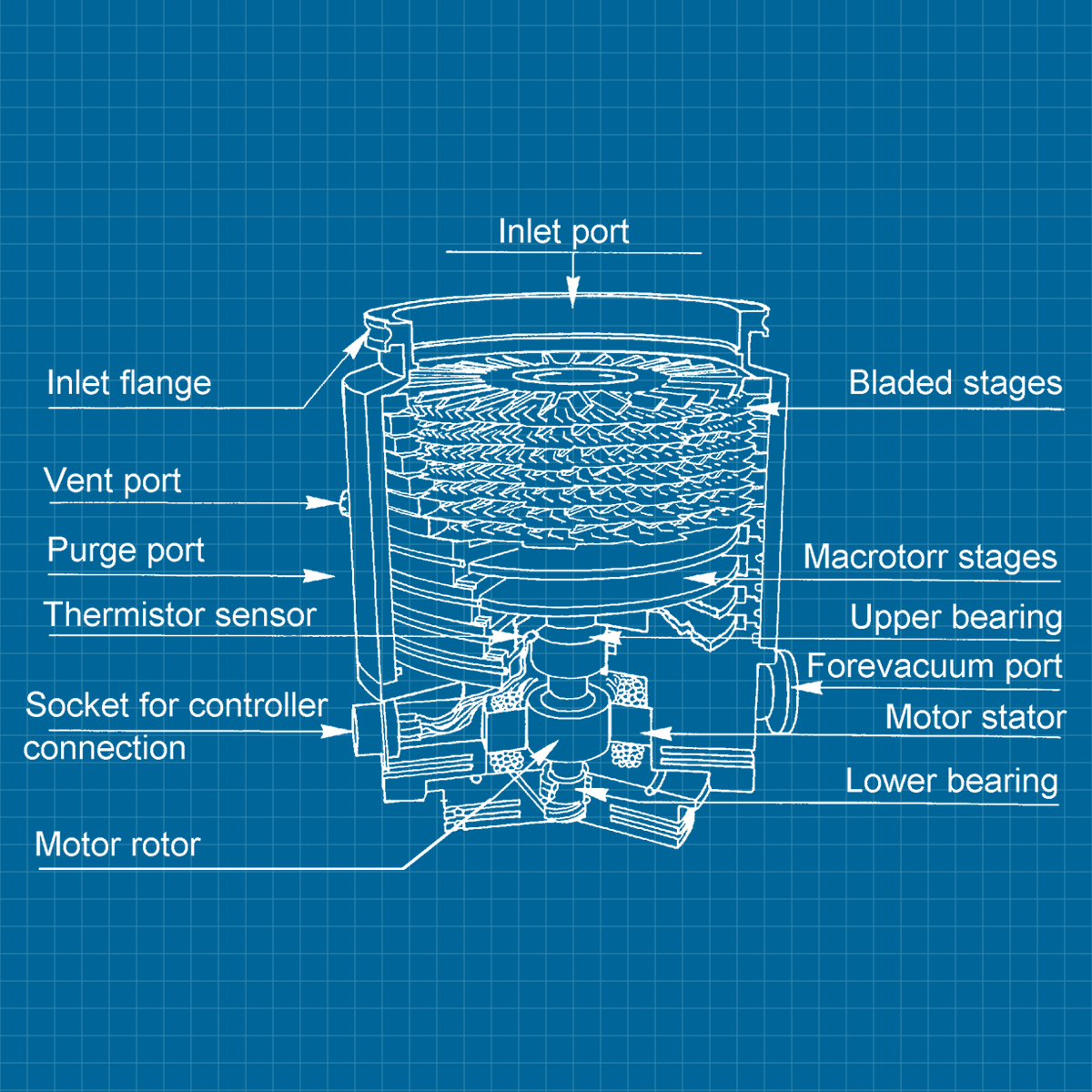

The Agilent Varian Turbo-V Macro Torr pump is capable of operating at high foreline pressures because of the high speed to compression ratio. These pumps have silicon nitride, ceramic bearings.
Each turbo pump must match its controller in reference to the same class. For example the TV 550 pump must match a V550 (stand alone, brick or PCB) controller. View our inventory of Agilent Varian turbo controllers. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed l/s | ISO-160 - N2: 550, He: 600, H2: 510 ISO-100 - N2: 350, He: 450, H2: 450 |
| Compression ratio | N2: > 1 x 109, He: 1 x 107, H2: 1 x 106 |
| Base pressure | w/ recommended forepumps: < 1 x 10-10 mbar (< 1 x 10-10 Torr) |

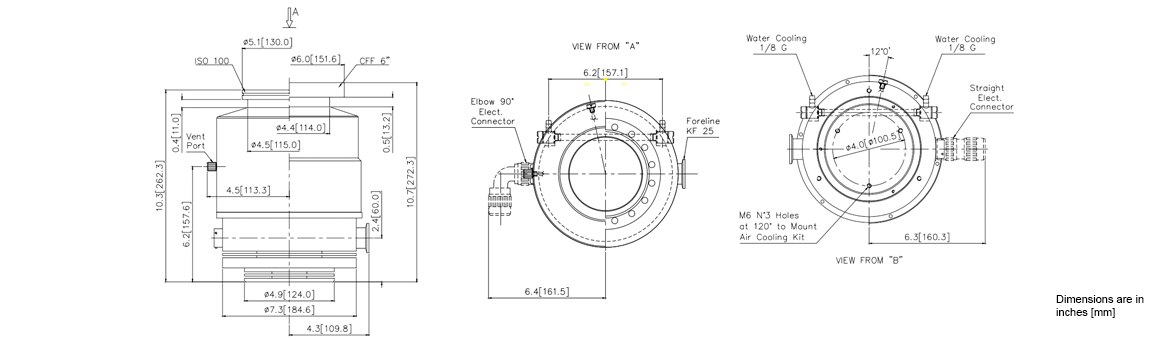

| Inlet flange | DN 160 ISO DN 160 CF (8 in. OD) DN 100 ISO DN 100 CF (6 in. OD) |
| Foreline flange | NW25 KF |
| Rotational speed | 42,000 rpm |
| Startup time | 5 min |
| Recommended forepump | Two-stage rotary pump: SD 300 Dry pump: TriScroll 300 |
| Operating position | Any |
| Cooling requirements | Forced air, water optional |
| Bakeout temperature | 120°C at inlet flange (CF version) |
| Vibration level (displacement) | < 0.01 μm at inlet flange |
| Weight lbs. (kg) | ISO: 30.8 (14); CF: 43 (19.5) |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian Turbo-V 550 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 550 Turbomolecular Vacuum Pump - REBUILT 9699049 / 969-9049 ISO-160 9699050 / 969-9050 8" CF 9699047 / 969-9047 ISO-100 9699048 / 969-9048 6" CF 9699049S020 9699049S033
