Agilent Varian Turbo-V 551 Navigator - REBUILT
Weight
51 lbs
Pumping Speed
350-550 l/s
Ultimate Pressure
< 1 x 10-10 mbar
Agilent Varian Turbo-V 551 Navigator Turbomolecular Vacuum Pump - REBUILT
The Agilent Varian Turbo-V MacroTorr pump is capable of operating at high foreline pressures because of the high speed to compression ratio. These pumps have silicon nitride, ceramic bearings.

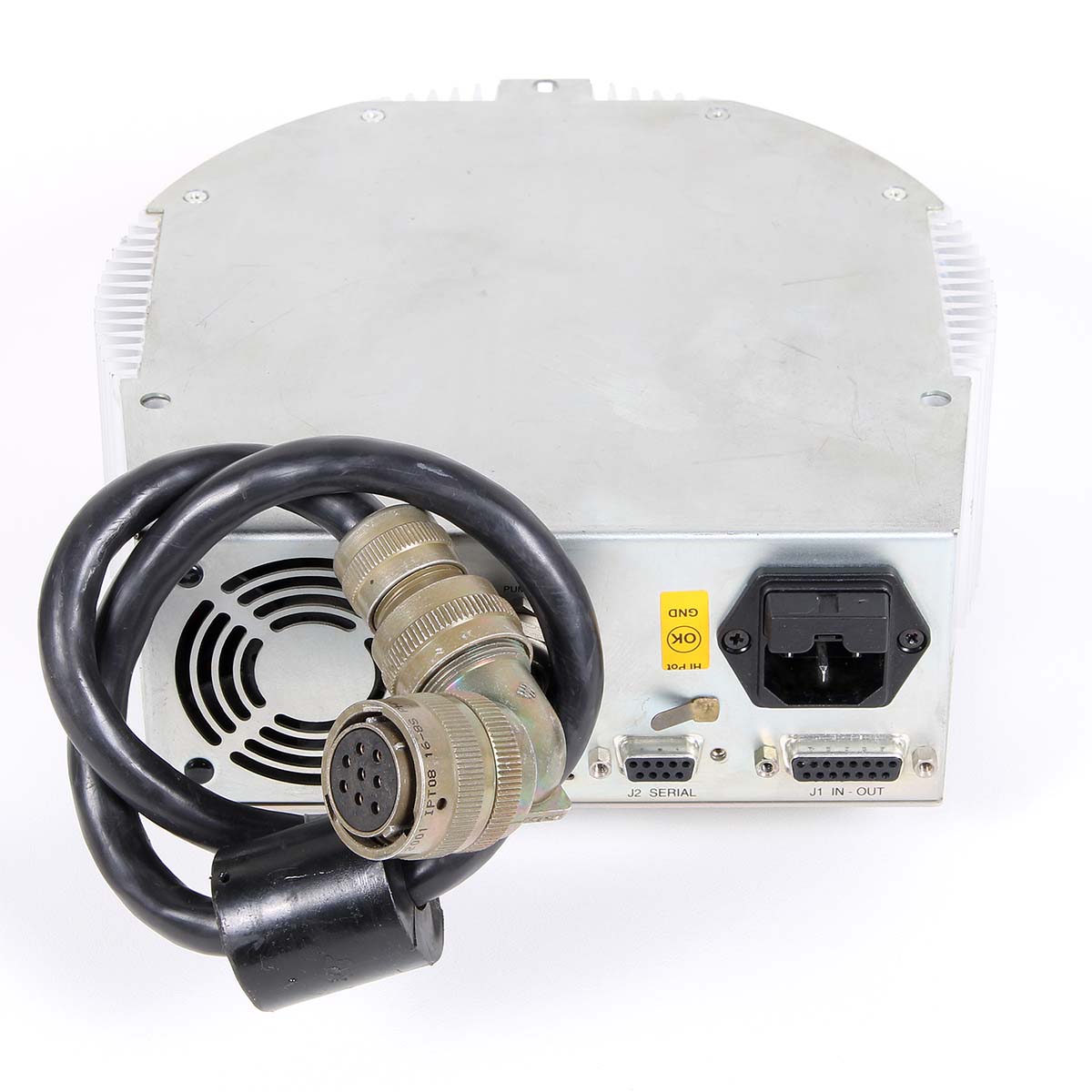

Each turbo pump must match its controller in reference to the same class. For example the TV 550 pump must match a V550 (stand alone, brick or PCB) controller. View our inventory of Agilent Varian turbo controllers . We also offer repair service .
Questions? send an email to our sales team!
Pumping speed l/s
ISO-160 - N2 : 550, He: 600, H2 : 5102 : 350, He: 450, H2 : 450
Compression ratio
N2 : > 1 x 109 , He: 1 x 107 , H2 : 1 x 106
Base pressure
w/ recommended forepumps: < 1 x 10-10 mbar (< 1 x 10-10 Torr)

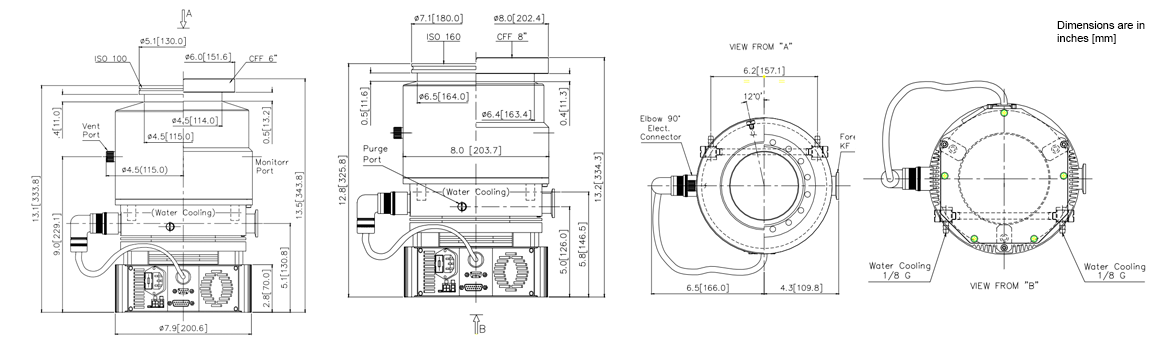

Inlet flange
DN 160 ISO DN 160 CF (8 in. OD)
Foreline flange
NW25 KF
Rotational speed
42,000 rpm
Startup time
5 min
Recommended forepump
Two-stage rotary pump: SD-300 TriScroll 300
Operating position
Any
Cooling requirements
Forced air, water optional
Bakeout temperature
120°C at inlet flange (CF version)
Vibration level (displacement)
< 0.01 μm at inlet flange
Input voltage
90/132 VAC - 180/264 VAC, 50/60 Hz, 1-phase
Maximum input power
600 VA
Maximum output power
325 W (maximum power for nitrogen only)
Serial communication
RS232 and RS485

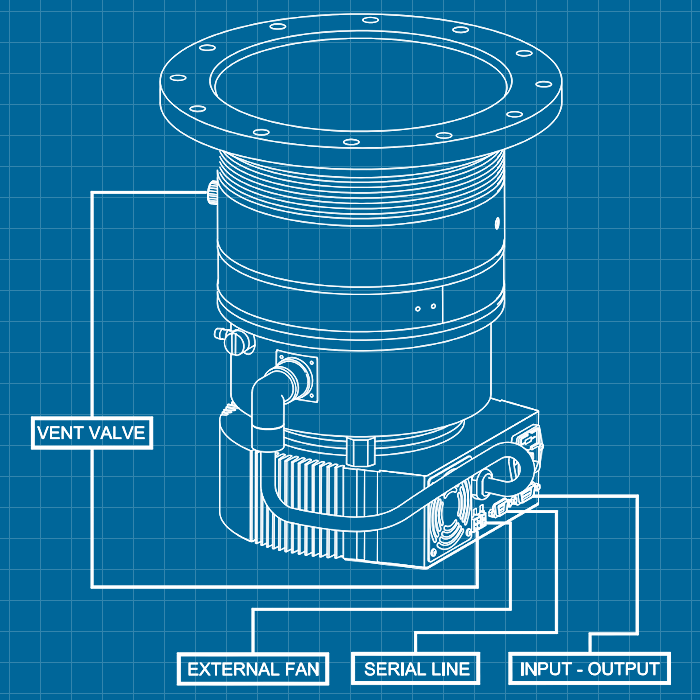

Input / output
Remote START/STOP
Vent valve device power supply
24 VDC, 100 mA max
External fan power supply
24 VDC, 120 mA max
Weight lbs. (kg)
ISO: 30.8 (14); CF: 43 (19.5)
Specifications
Type
Label
Description
Download
Varian TV 551/701 Navigator - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 551 Navigator Turbomolecular Vacuum Pump - REBUILT
9698832 / 969-8832 complete system, ISO-160
9698842 / 969-8842 complete system, ISO-160F bolted
9698833 / 969-8833 complete system, 8” CF
9698834 / 969-8834 complete system, ISO-100
9698835 / 969-8835 complete system, 6” CF
9698922 / 969-8922 ISO-160
9698923 / 969-8923 8" CF
9698924 / 969-8924 ISO-100
9698925 / 969-8925 6" CF
9698944 / 969-8944 ISO-160F bolted
