ANEST IWATA ISP-500B - REBUILT
Call for Price
In stock
SKU
REBUILT_ISP500B
| Weight | 97 lbs |
|---|---|
| Pumping Speed | 21.18 cfm |
| Ultimate Pressure | < 7.50 x 10-3 Torr |

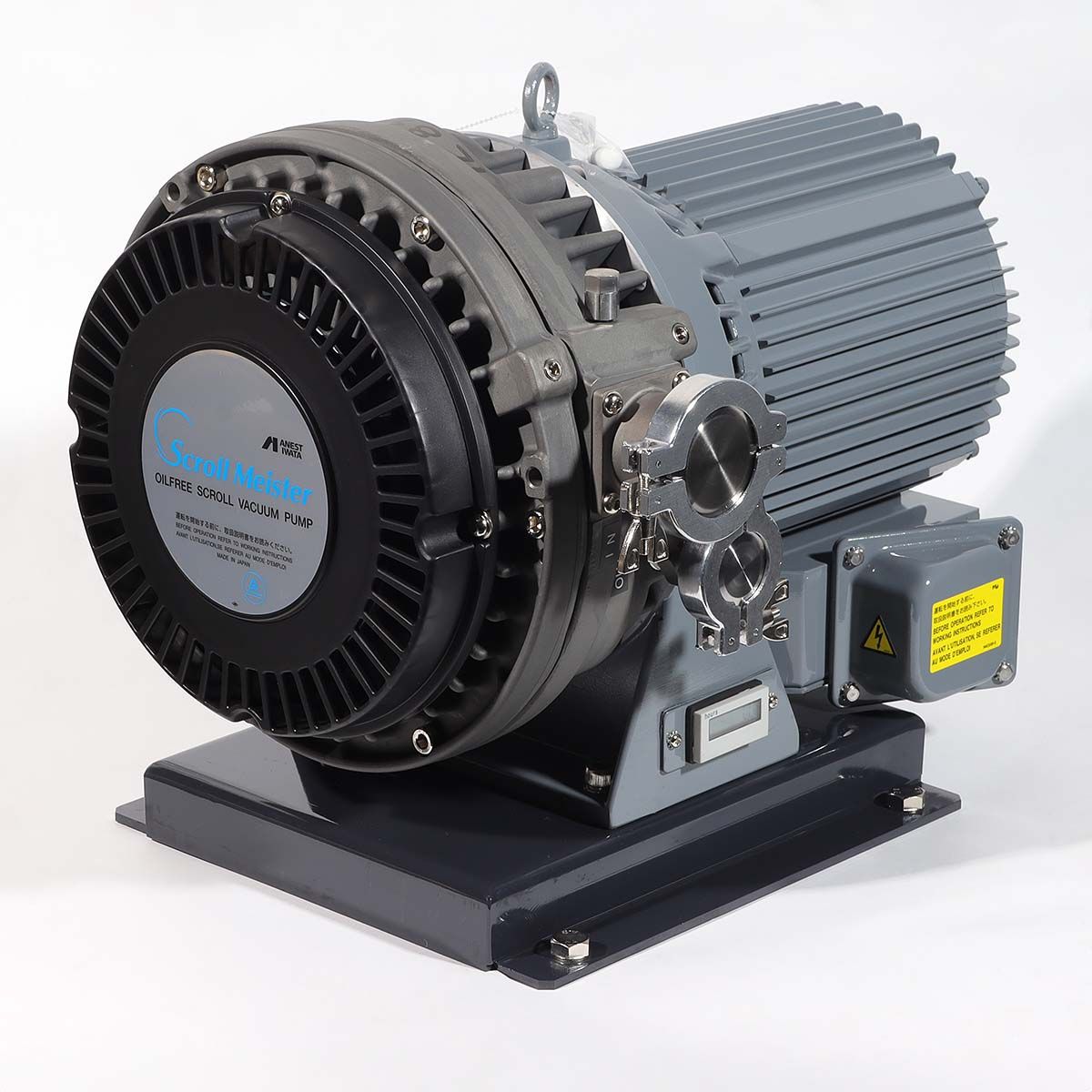

ANEST IWATA ISP-500B Dry Scroll Vacuum Pump - REBUILT
Rebuilt ANEST IWATA scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak speed @ 60 Hz | 21.2 cfm |
| Ultimate pressure | 7.5 x 10-3 Torr |
| Max. inlet pressure | 1.0 atmosphere |
| Max. outlet pressure | 1.1 atmosphere |
| Inlet connection | NW 40 |
| Exhaust connection | NW 25 |
| Operating temp. | 41 to 104 F |
| Motor hp | 0.8 kW |
| Operating voltages @ 60 Hz | |
| Single-phase | 110/230 VAC |
| Three-phase | 200/460 VAC |
| Operating speed @ 60 Hz | 1 |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
ANEST IWATA ISP-500B Dry Scroll Vacuum Pump - REBUILT
ISP-500B 1-phase 21 cfm
ISP-500B 3-phase 21 cfm
