Edwards E1M18 - NEW

Name: Edwards E1M18 - NEW
Brand: Edwards
SKU: NEW_E1M18

Be the first to review this product

Starting at $5,211

In stock

Only %1 left

SKU

NEW_E1M18

Request For Quote

Weight	82 lbs
Motor Power	1 hp
Pumping Speed	17 m³/h
Ultimate Pressure	2.3 x 10^-3 Torr

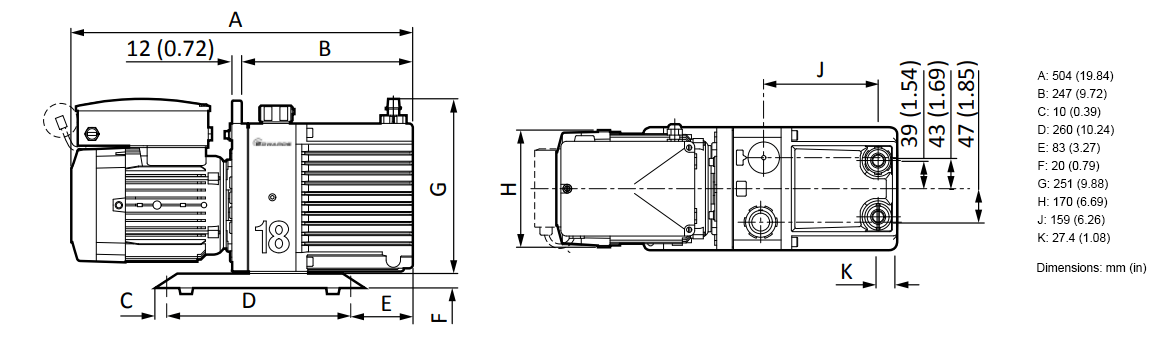

Dimensions

Description

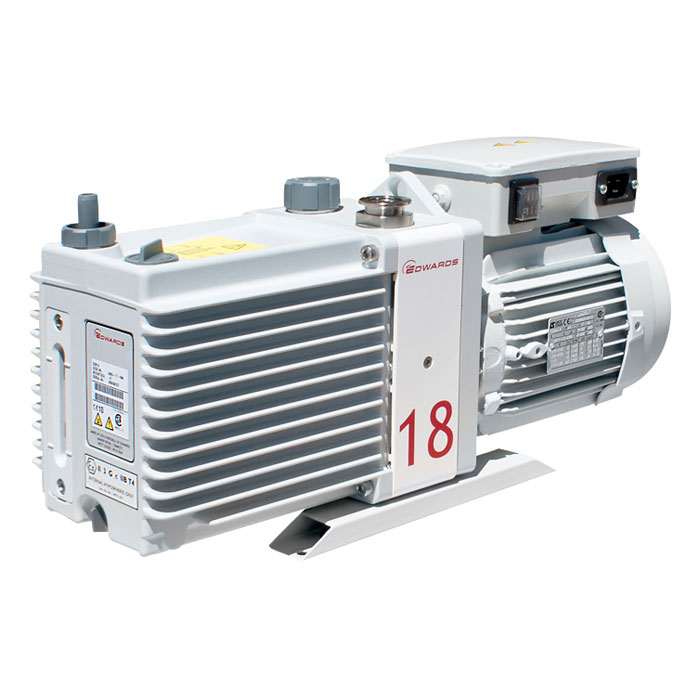

Edwards E1M18 Single Stage Rotary Vane Vacuum Pump - NEW

The EM range of oil-sealed rotary pumps – renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour – have become the industry standard for laboratory and light industrial applications. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single-phase or three-phase (four pole) motor.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement (swept volume)
50 Hz	20.5 m³h^-1 / 12.1 ft³min^-1
60 Hz	25.0 m³h^-1 / 14.7 ft³min^-1
Speed (Pneurop 6602)
50 Hz	17.0 m³h^-1 / 10 ft³min^-1
60 Hz	20.4 m³h^-1 / 12.1 ft³min^-1
Ultimate vacuum (total pressure)
w/out gas purge	3 x 10^-2 mbar / 2.2 x 10^-2 Torr
w/ gas purge	6.5 x 10^-1 mbar / 4.8 x 10^-1 Torr
Inlet connection	NW25
Outlet connection	Nozzle 15 mm external diameter removable from 3/4" BSP tapped hole
Maximum permitted pressure at outlet	0.5 bar gauge / 7 psig
Maximum inlet pressure for water vapour	50 mbar / 38 Torr
Maximum water vapour pumping rate	0.65 kg h^-1
Motor power 50/60 Hz	0.55 kW / 0.75kW
Nominal rotational speed 50/60Hz	1,440/1,720 rpm
Power connector	IEC EN60320 C19
Operating temperature range	13 - 40°C
Weight	37 kg / 82 lbs
Noise	57 dB(A) @ 50 Hz
Oil capacity - maximum	1.4 litre
Oil capacity - minimum	0.9 litre
Recommended oil	Ultragrade 19

Digital Manuals

Type	Label	Description	Download

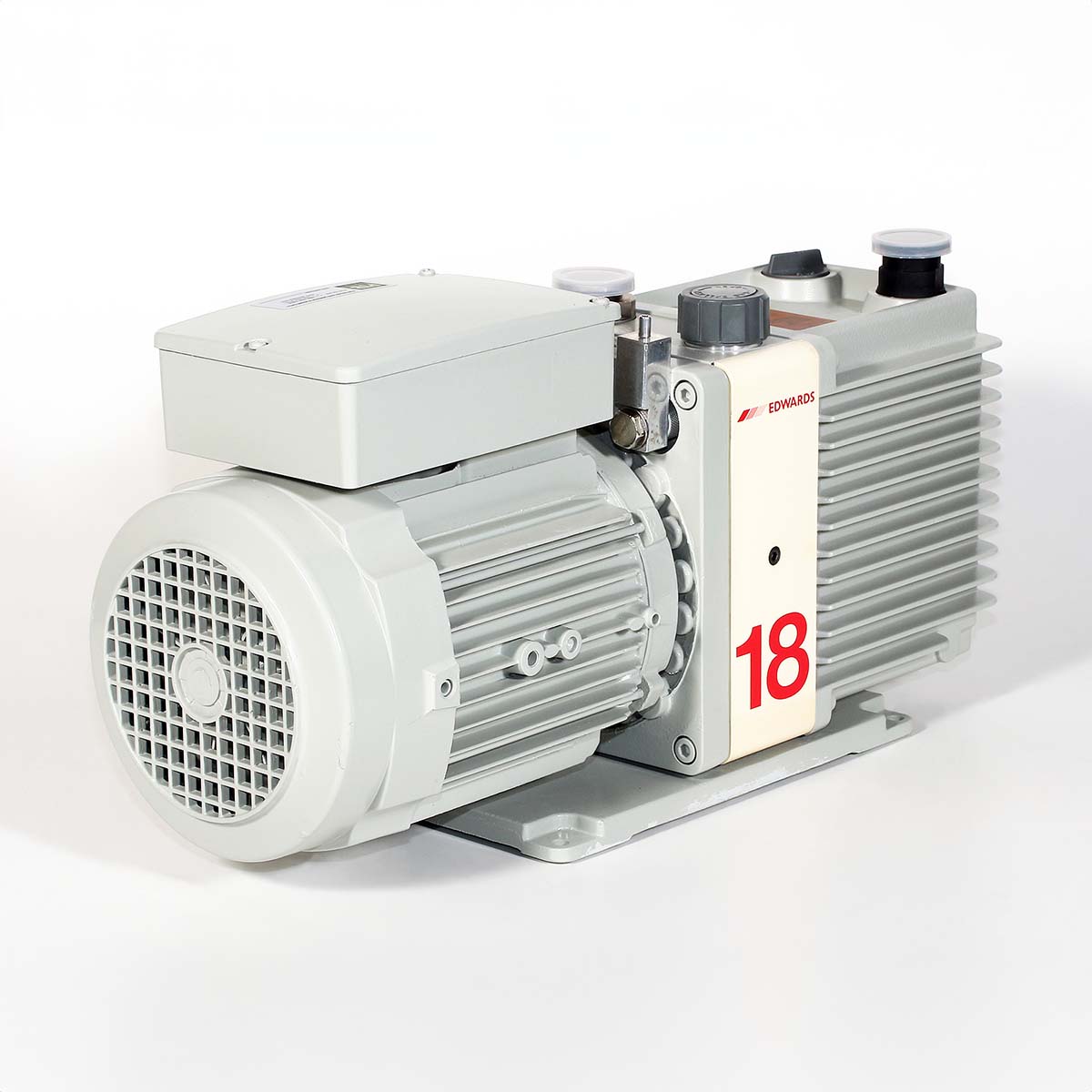

	Edwards E1M18 & E2M18 - REBUILT	Instruction Manual	Download
	Edwards E1M18 & E2M18 - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL E1M18 Single Stage Rotary Vane Vacuum Pump - NEW

CODE NO. A343-10-940 / A34310940  E1M18  200-230/380-415V 50Hz three-phase or 200-230/460V 60Hz 3-phase
CODE NO. A343-15-904 / A34315904  E1M18  100/200V 50Hz single-phase or 100-105/200-210V 60Hz 1-phase
CODE NO. A343-17-984 / A34317984  E1M18  115/200-230V 50/60Hz 1-phase IEC factory set to 230V
         A343-24-930 / A34324930  E1M18  230V
         A343-15-903 / A34315903  E1M18  220-240V 50/60Hz 1-phase
         A343-16-903 / A34316903  E1M18  230V 50/60Hz 1-phase
         A343-17-984 / A34317984  ElM18  115V/200-230V 50/60Hz
         A343-24-904 / A34324904  E1M18  100/200V 50/60Hz
