Edwards E2M1.5 - REBUILT
Call for Price
Out of stock
SKU
REBUILT_E2M1.5
| Weight | 22 lbs |
|---|---|
| Motor Power | 0.21 hp |
| Pumping Speed | 1.6 m3/h |
| Ultimate Pressure | 3 x 10-3 mbar |

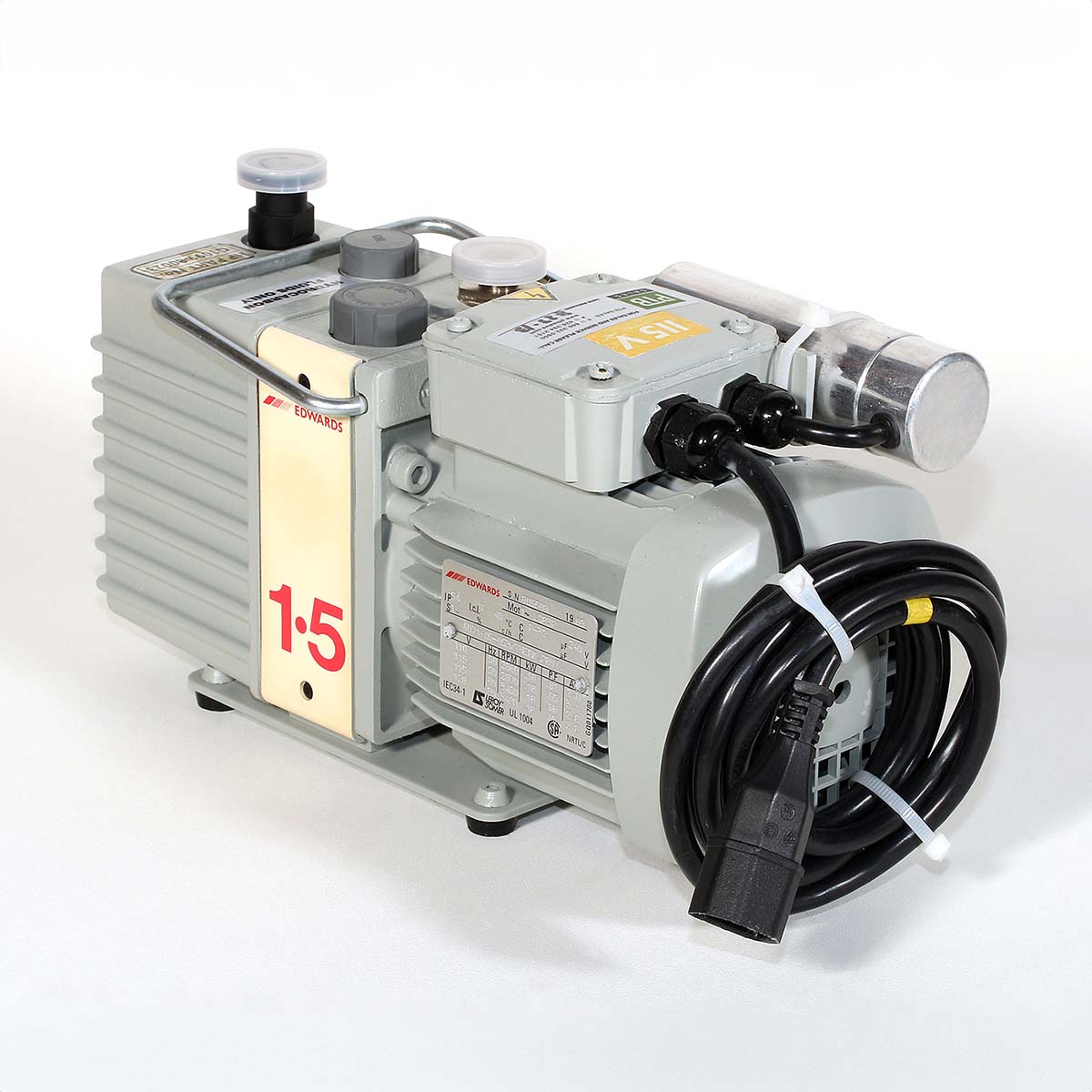

Edwards E2M1.5 Two Stage Rotary Vane Vacuum Pump - REBUILT
The E2M1.5 is a two stage oil sealed rotary vane pump suitable for many bench type applications.The pump features an alternative inlet connection position at the side of the pump so that overall installation height can be reduced to a minimum when required.
The interstage version features an additional pumping port to provide a rough vacuum for auxiliary duties.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 1.8 m3h-1 / 1 ft3min-1 |
| 60 Hz | 2.2 m3h-1 / 1.3 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 1.6 m3h-1 / 0.8 ft3min-1 |
| 60 Hz | 2.0 m3h-1 / 1.2 ft3min-1 |
| Ultimate vacuum (total pressure) | |
| w/out gas ballast | 3.0 x 10-3 mbar / 2.3 x 10-3 Torr |
| w/ full gas ballast | 2.5 x 10-2 mbar / 1.9 x 10-2 Torr |
| Inlet connection | NW10 flange |
| Outlet connection | Nozzle 11 mm external diameter removable from 3/8" BSP tapped hole |
| Maximum permitted pressure at outlet | 0.5 bar gauge / 7 psig |
| Maximum inlet pressure for water vapour | 15 mbar / 11 Torr |
| Maximum water vapour pumping rate | 16 gh-1 |
| Motor power | 0.16 kW |
| Nominal rotational speed 50/60Hz | 2,800 / 3,400 rpm |
| Power connector | IEC EN60320 C13 |
| Operating temperature range | 12 - 40°C |
| Weight, w/out oil | 10 kg / 22 lbs |
| Noise | 54 dB(A) @ 50 Hz |
| Noise w/ acoustic enclosure | 47 dB(A) @ 50 Hz |
| Oil capacity - maximum | 0.28 litre |
| Oil capacity - minimum | 0.2 litre |
| Recommended oil | Ultragrade 15 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards E2M0.7, E2M1 & E2M1.5 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL E2M1.5 Two Stage Rotary Vane Vacuum Pump - REBUILT
CODE NO. A371-24-902 / A37124902 E2M1.5 115V
CODE NO. A371-32-902 / A37132902 E2M1.5 100-120V 50/60Hz IEC
CODE NO. A371-32-919 / A37132919 E2M1.5 200-230V 50/60Hz single-phase IEC
A371-22-902 / A37122902 E2M1.5 100-120V 1-phase IEC
A371-04-919 / A37104919 E2M1.5 interstage 200-230V 50/60Hz 1-phase IEC
A371-04-902 / A37104902 E2M1.5 interstage 100-120V 50/60Hz 1-phase IEC
A372-01-930 / A37201930 E2M1 220-240V 50/60Hz 1-phase
A372-01-988 / A37201988 E2M1 105-115V 50/60Hz 1-phase
