Edwards E2M275 - NEW
Call for Price
In stock
SKU
NEW_E2M275
| Weight | 476.2 lbs |
|---|---|
| Motor Power | 7.5 hp |
| Pumping Speed | 255 m3/h |
| Ultimate Pressure | 3.0 x 10-3 Torr |

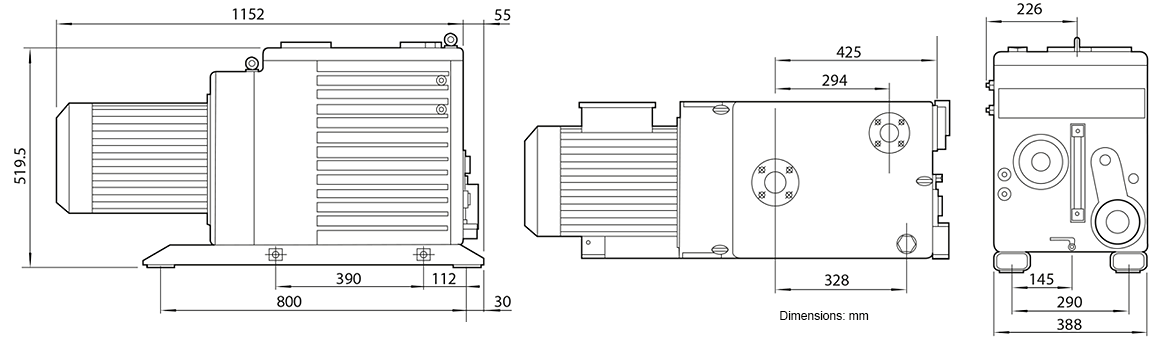

Edwards E2M275 Two Stage Rotary Vane Vacuum Pump - NEW
Edwards E2M series two stage oil sealed rotary vane vacuum pumps are renowned for their high ultimate vacuum, rapid pumping speeds, quiet operation and ability to handle water vapour. These direct drive rotary vane pumps are inherently compact and vibration free, and with their finger-proof fan and coupling housings they offer excellent operator protection.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 292 m3h-1 / 172 ft3min-1 |
| 60 Hz | 350 m3h-1 / 206 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 255 m3h-1 / 150 ft3min-1 |
| 60 Hz | 306 m3h-1 / 180 ft3min-1 |
| Number of stages | 2 |
| Ultimate vacuum | |
| w/out gas ballast (total pressure) | 1 x 10-3 mbar / 7.7 x 10-4 Torr |
| w/ gas ballast (partial pressure) | 5 x 10-3 mbar / 3.8 x 10-3 Torr |
| Ultimate w/ Fomblin® | |
| w/out gas ballast | 1 x 10-2 mbar / 7.7 x 10-3 Torr |
| Inlet connection | ISO63 blank flange w/ seal |
| Outlet connection | ISO40 flange centre tapped |
| Maximum permitted pressure at outlet | 0.5 bar gauge |
| Maximum inlet pressure for water vapour | 12 mbar / 9 Torr |
| Maximum water vapour pumping rate | 2.5 kg h-1 |
| Motor power | |
| 50 Hz | 5.5 kW / 7.5 hp |
| 60 Hz | 6.5 kW / 8.5 hp |
| Motor protection rating | IP55 |
| Weight | 253 kg / 558 lbs |
| Noise | 75 dB(A) @ 50 Hz |
| Standard oil capacity | |
| maximum | 28 litre |
| minimum | 18 litre |
| PFPE oil capacity | |
| maximum | 18 litre |
| minimum | 7 litre |
| Recommended oil | Ultragrade 70 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards E2M175 & E2M275 - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL E2M275 Two Stage Rotary Vane Vacuum Pump - NEW
CODE NO. A367-18-993 / A36718993 E2M275 T3 400V three-phase 50Hz
CODE NO. A367-04-934 / A36704934 E2M275 HC IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
CODE NO. A367-04-940 / A36704940 E2M275 HC IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
A367-17-934 / A36717934 E2M275 FX IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A367-17-940 / A36717940 E2M275 FX IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
A367-07-934 / A36707934 E2M275 AZ IE3 ASIA 50/60Hz 200V 50/60Hz 380V 60Hz
A367-07-940 / A36707940 E2M275 AZ IE3 EU/US 50/60Hz 380-400V 50Hz 230/460V 60Hz
Atlas Copco GVD 275 3-phase 230/460V 50/60Hz
