Edwards E2M275 - REBUILT
Weight
476.20 lbs
Motor Power
10 hp
Pumping Speed
255 m3 /h
Ultimate Pressure
3 x 10-3 mbar

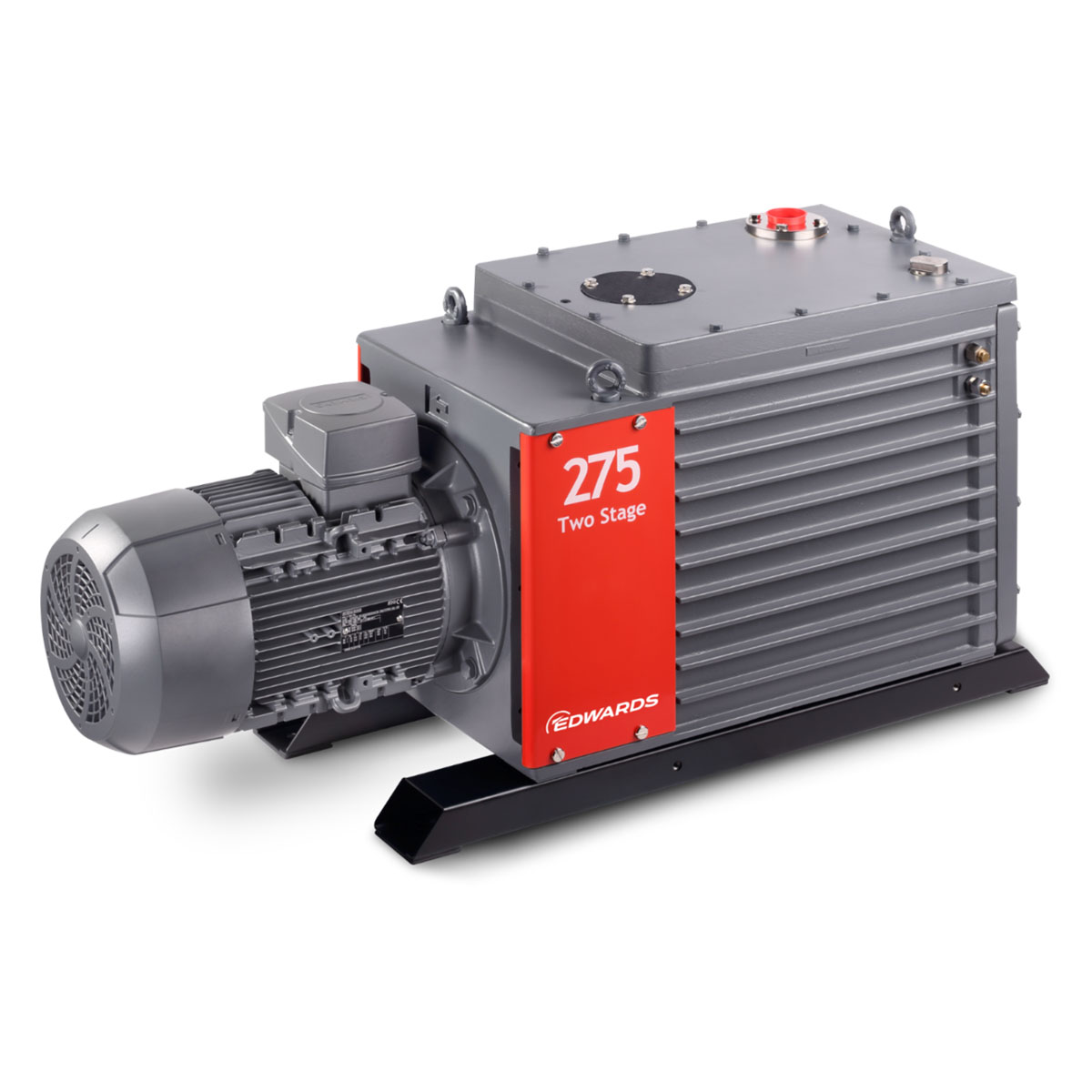

Edwards E2M275 Two Stage Rotary Vane Vacuum Pump - REBUILT
Edwards E2M series two stage oil sealed rotary vane vacuum pumps are renowned for their high ultimate vacuum, rapid pumping speeds, quiet operation and ability to handle water vapour. These direct drive rotary vane pumps are inherently compact and vibration free, and with their finger-proof fan and coupling housings they offer excellent operator protection. A comprehensive range of accessories is available to allow use on a wide variety of vacuum applications.
Questions? send an email to our sales team!
Displacement (swept volume)
50 Hz
292 m3 h-1 / 172 ft3 min-1
60 Hz
350 m3 h-1 / 206 ft3 min-1
Speed (Pneurop 6602)
50 Hz
255 m3 h-1 / 150 ft3 min-1
60 Hz
306 m3 h-1 / 180 ft3 min-1
Number of stages
2
Ultimate vacuum
w/out gas ballast (total pressure)
3 x 10-3 mbar / 7.7 x 10-4 Torr
w/ gas ballast (partial pressure)
5 x 10-3 mbar / 3.8 x 10-3 Torr
Ultimate with Fomblin®
w/out gas ballast
1 x 10-2 mbar / 7.7 x 10-3 Torr
Inlet connection
ISO63 blank flange with seal
Outlet connection
ISO40 flange centre tapped
Maximum permitted pressure at outlet
0.5 bar gauge
Maximum inlet pressure for water vapour
12 mbar / 9 Torr
Maximum water vapour pumping rate
2.5 kg h-1
Motor power
50 Hz
5.5 kW / 7.5 hp
60 Hz
6.5 kW / 8.5 hp
Motor protection rating
IP55
Weight
216 kg / 476.2 lbs
Noise
75 dB(A) @ 50 Hz
Standard oil capacity
maximum
28 litre
minimum
18 litre
PFPE oil capacity
maximum
18 litre
minimum
7 litre
Recommended oil
Ultragrade 70
Specifications
Type
Label
Description
Download
BOC Edwards E1M175 - E2M275 - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL E2M275 Two Stage Rotary Vane Vacuum Pump - REBUILT
CODE NO. A367-01-935 / A36701935 E2M275 220-240V/380-415V 50Hz three-phase
CODE NO. A367-01-934 / A36701934 E2M275 200/380V 50/60Hz 3-phase
CODE NO. A367-03-982 / A36703982 E2M275 208-230V/440-460V 60Hz 3-phase
A367-18-993 / A36718993 E2M275T3 400V 50Hz 3-phase
A367-04-934 / A36704934 E2M275HC IE3 ASIA 50/60Hz 200V 50/60Hz, 380V 60Hz
A367-04-940 / A36704940 E2M275HC IE3 EU/US 50/60Hz 380-400V 50Hz, 230/460V 60Hz
A367-17-934 / A36717934 E2M275FX IE3 ASIA 50/60Hz 200V 50/60Hz, 380V 60Hz
A367-17-940 / A36717940 E2M275FX IE3 EU/US 50/60Hz 380-400V 50Hz, 230/460V 60Hz
A367-07-934 / A36707934 E2M275AZ IE3 ASIA 50/60Hz 200V 50/60Hz, 380V 60Hz
A367-07-940 / A36707940 E2M275AZ IE3 EU/US 50/60Hz 380-400V 50Hz, 230/460V 60Hz
A367-03-982 / A36703982 E2M275 230/460V 60Hz 3-phase
A347-03-982 / A34703982 E1M275 230/460V 60Hz 3-phase
A367-03-982 / A36703982 E2M275 230/460V 60Hz 3-phase 4 pole
