Edwards EPX180L - NEW
Weight
96 lbs
Pumping Speed
170 m3 h-1
Ultimate Pressure
<7.5 x 10-5 Torr

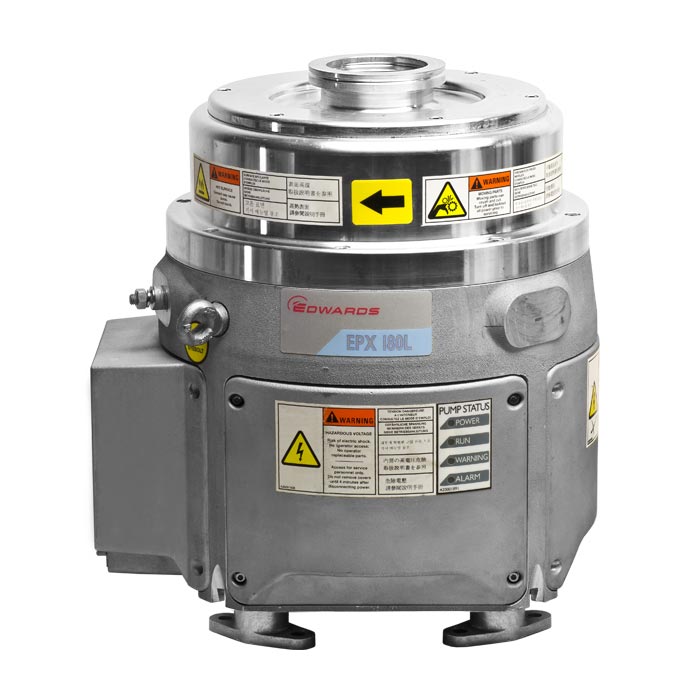

Edwards EPX180L 208V Semiconductor Dry Vacuum Pump - NEW
The new compact EPX180 high vacuum dry pump offers enhanced performance with reduced cost of ownership. Using a unique patent protected mechanism the EPX180 is capable of pumping from atmosphere to ultimate pressures of < 7.5 x 10-5 Torr. Based on the successful award winning IPX range, the modular EPX180 offers outstanding performance in a package that is 20% lighter, 30% smaller and requires 40% less power than the IPX.
Questions? send an email to our sales team!
Peak Speed
170 m3 h-1 / 105 ft3 min-1 / 2,835 lmin-1
Ultimate Vacuum
< 1 x 104 mbar / < 7.5 x 10-5 / < 1 x 10-2 Pa Torr
Warm up time (to nominal performance)
30 min
Inlet Flange
ISO63
Outlet flange
NW25
Noise
< 59 dB(A)
Water connectors
3/8 in Quick
Minimum cooling water flow rate
2 lmin-1
Cooling water temperature
15 - 35°C
Electrical supply
200/208 V, 50/60 Hz 3-phase
Power at ultimate
1.4 kW
Rated motor power
3.0 kW
TIM
C3
Weight
43.5 kg
Type
Label
Description
Download
Edwards EPX HiVac Series
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards EPX180L 208V Semiconductor Dry Vacuum Pump - NEW
A41941014 / A419-41-014 EPX180L 400V 3/8 water connector
A41941132 / A419-41-132 EPX180L 208V C3 TIM 9/16 water connector
A41941212 / A419-41-212 EPX180L 208V SPI TIM 3/8 water connector
A41941222 / A419-41-222 EPX180L 208V SPI TIM 1/4 water connector
A41941312 / A419-41-312 EPX180L 208V E73 TIM 3/8 water connector
A41941314 / A419-41-314 EPX180L 400V E73 TIM 3/8 water connectors
A41941412 / A419-41-412 EPX180L 208V TEL TIM 3/8 water connector
A41941514 / A419-41-514 EPX180L 400V LAM TIM 3/8 water connectors
A41941712 / A419-41-712 EPX180L 208V MCM TIM 3/8 water connector
A41941002 / A419-41-002 EPX180L 200V
A41941012 / A419-41-012 EPX180L 200V 3/8 water connector
A41941112 / A419-41-112 EPX180L 208V C3 TIM 3/8 water connector
A41941024 / A419-41-024 EPX180L 400V 1/4 water connector
A41941142 / A419-41-142 EPX180L 208V C3 TIM 3/8 water connector
A41941152 / A419-41-152 EPX180L 208V C3 TIM 3/8 water connector
A41941214 / A419-41-214 EPX180L 400V SPI TIM 3/8 water connector
OBSOLETED
A40902977 / A409-02-977 IPX100
A40902973 / A409-02-973 IPX100
A40904977 / A409-04-977 IPX100A
A40904973 / A409-04-973 IPX100A
A40924977 / A409-24-977 IPX180A
A40924973 / A409-24-973 IPX180A
A40914977 / A409-14-977 IPX500A
A40914973 / A409-14-973 IPX500A
