Edwards ESDP30 - REBUILT
Call for Price
In stock
SKU
REBUILT_ESDP30
| Weight | 102 lbs |
|---|---|
| Motor Power | 0.5 hp |
| Pumping Speed | 25 m3/h |
| Ultimate Pressure | 1 x 10-2 mbar |

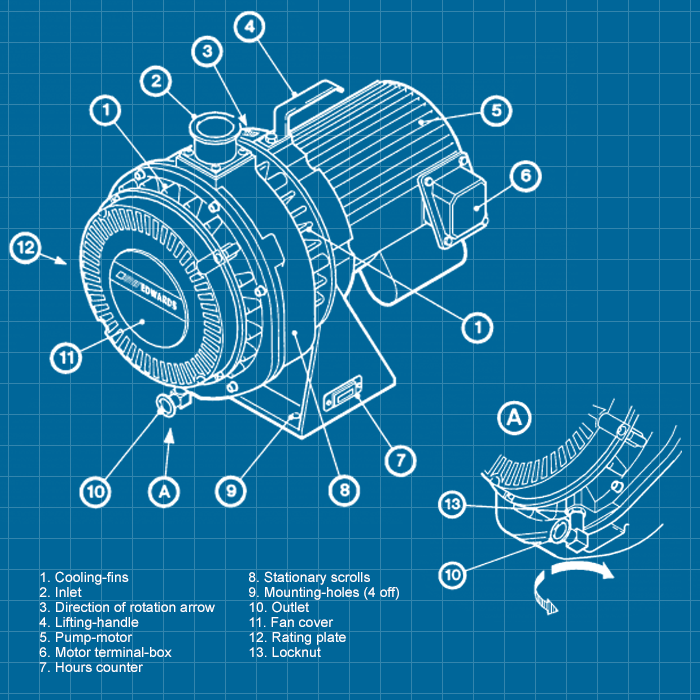

Edwards ESDP30 Dry Scroll Vacuum Pump - REBUILT
Rebuilt Edwards scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement | 50 Hz: 30 m3h-1 / 17.6 ft3min-1 60 Hz: 36 m3h-1 / 21.2 ft3min-1 |
| Peak pumping speed | 50 Hz: 25 m3h-1 / 16.1 ft3min-1 60 Hz: 30 m3h-1 / 17.6 ft3min-1 |
| Ultimate total vacuum | 1 x 10-2 mbar / 7.5 x 10-3 Torr |
| Inlet connection | NW40 |
| Outlet connection | NW25 |
| Maximum allowed inlet pressure | 1,000 mbar |
| Maximum allowed outlet pressure | 1,150 mbar |
| Motor power | 0.6 kW |
| Electrical supply single-phase 50 Hz 1-phase 60 Hz three-phase 50 Hz 3-phase 60 Hz |
100/200/230 V 100/115/200/230 V 200/380/415 V 200/208/230/460 V |
| Recommended contactor rating 3-phase 200-230 V 380-460 V |
5 A 3 A |
| Enclosure rating | IP44 |
| Leak tightness (static) | 10-4 mbar l/s |
| Operating temperature range | 5 to 40°C / 41 to 104°F |
| Weight 3-phase pump 1-phase pump |
40 kg / 88 lb 46 kg / 102 lb |
| Type | Label | Description | Download |
|---|---|---|---|
|
BOC Edwards ESDP12 & ESDP30 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
BOC Edwards ESDP30 Dry Scroll Vacuum Pump - REBUILT A71003907 / A710-03-907 ESDP30 universal 3-phase The GVSP30 replaces the ESDP30A and the ESDP30. It has a gas ballast facility and a new position for the exhaust outlet port (which allows any condensates to drain from the pump). The ESDP is the oldest ANEST IWATA "A" series pump. The FS1, FS2 and OS plates are not interchangeable with the current "C" series pumps. If these oldest pumps have damaged plates then they are not rebuildable.
