Edwards EXT250 - REBUILT

Name: Edwards EXT250 - REBUILT
Brand: Edwards
SKU: REBUILT_EXT250

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_EXT250

Request For Quote

Weight	25 lbs
Pumping Speed	240 l s-1
Ultimate Pressure	5 x 10^-9 mbar

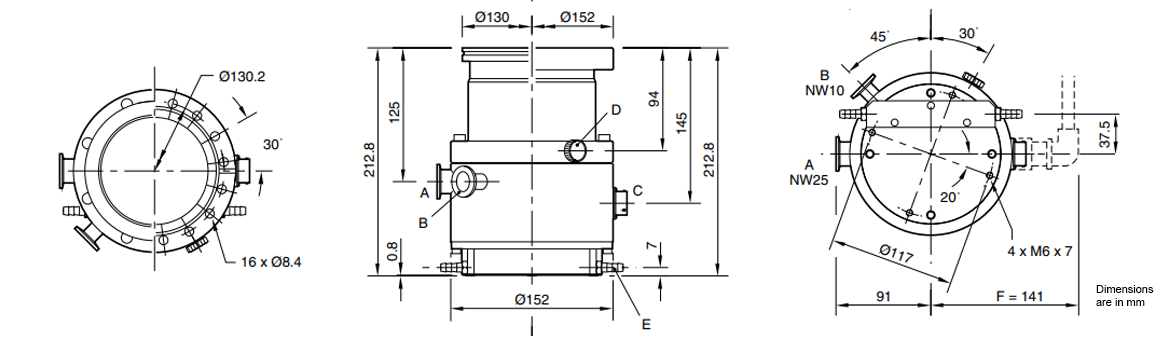

Dimensions

Description

Edwards EXT250 Turbomolecular Vacuum Pump - REBUILT

The Edwards EXT turbomolecular and compound molecular pumps provide a reliable, hydrocarbon-free high and ultra high vacuum. Utilizing multi-stage axial flow turbines combined with magnetic and ceramic bearings, the EXT design provides oil and vibration free operation with minimal maintenance on high critical foreline pressure processes.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Digital Manuals

Type	Label	Description	Download
	BOC Edwards EXT Series - REBUILT	User's Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL EXT250 Turbomolecular Vacuum Pump - REBUILT

CODE R736-01-000 / R73601000  EXT250  ISO-100 996085874
CODE B740-03-000 / B74003000  EXT250H  ISO-100 260091
CODE B740-03-000 / B74003000  EXT250  ISO-100 2551047
     B736-01-000 / B73601000  EXT250  ISO-100 2551047
     B740-03-000 / B74003000  EXT250H  DN 100 ISO-K 006702172
     B735-11-000XS / B73511000XS  STD EXCH EXT250M  CF-100 996324778
     B735-22-030XS / B73522030XS  STD EXCH EXT250M  CF-100 56091404
     B740-03-000 / B74003000  EXT250H  006702172
     B740-01-000 / B74001000  EXT250HI  006728690
     B740-01-000 / B74001000  EXT250HI  962063603
     B740-03-000 / B74003000  EXT250H  996085905
     B735-01-000 / B73501000  EXT250M  962064374
                              EXT250HP
