Edwards EXT255H - REBUILT

Name: Edwards EXT255H - REBUILT
Brand: Edwards
SKU: REBUILT_EXT255H

Be the first to review this product

Starting at $5,400

In stock

Only %1 left

SKU

REBUILT_EXT255H

Request For Quote

Weight	25 lbs
Pumping Speed	220 l/s^-1
Ultimate Pressure	5 x 10^-3 mbar

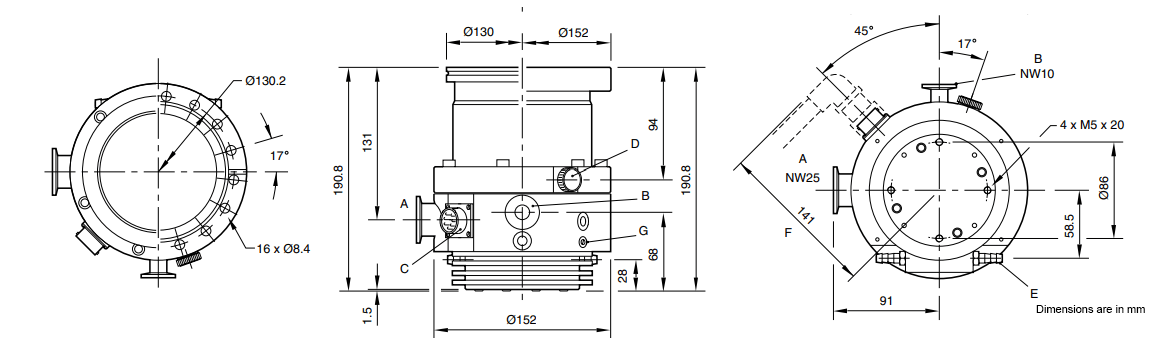

Dimensions

Description

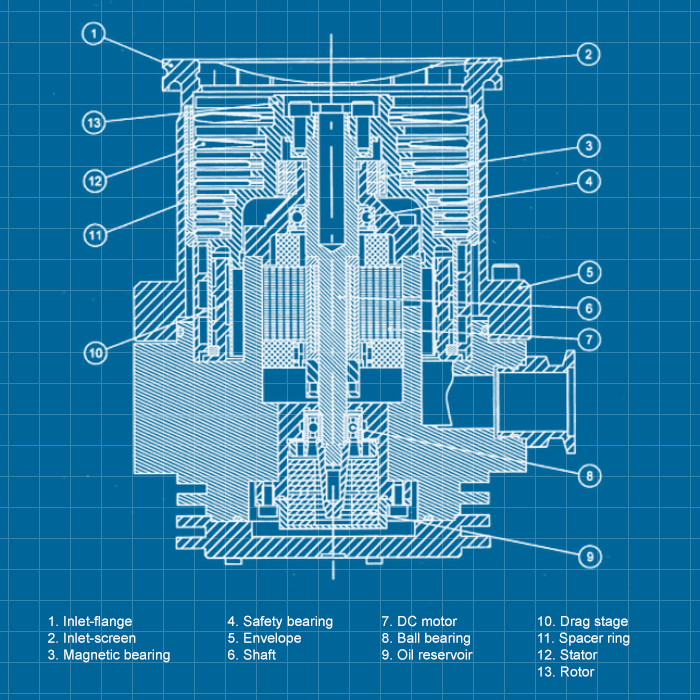

BOC Edwards EXT255H Turbomolecular Vacuum Pump - REBUILT

The Edwards EXT turbomolecular and compound molecular pumps provide a reliable, hydrocarbon-free high and ultra high vacuum. Utilizing multi-stage axial flow turbines combined with magnetic and ceramic bearings, the EXT design provides oil and vibration free operation with minimal maintenance on high critical foreline pressure processes.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Digital Manuals

Type	Label	Description	Download
	BOC Edwards EXT Series - REBUILT	User's Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

BOC Edwards MODEL EXT255H Turbomolecular Vacuum Pump - REBUILT

CODE B753-01-000 / B75301000  EXT255H  DN 100 ISO-K
CODE B753-03-000 / B75303000  EXT255HI  DN 100 ISO-K CMP
CODE B753-05-991 / B75305991  EXT255H  ISO-100 COARSE SCRN 24V
     B753-01-991 / B75301991  EXT255H  ISO-100 24V
     B753-03-991 / B75303991  EXT255HI  ISO-100 24V
     B753-04-000 / B75304000  EXT255HP  ISO-100 G2589-80062 AGILENT
     B753-01-000 / B75301000
     B753-01-000 / B75301000
     B753-01-000 / B75301000
     NRB6-38-000 / NRB638000
                   NXD58000
