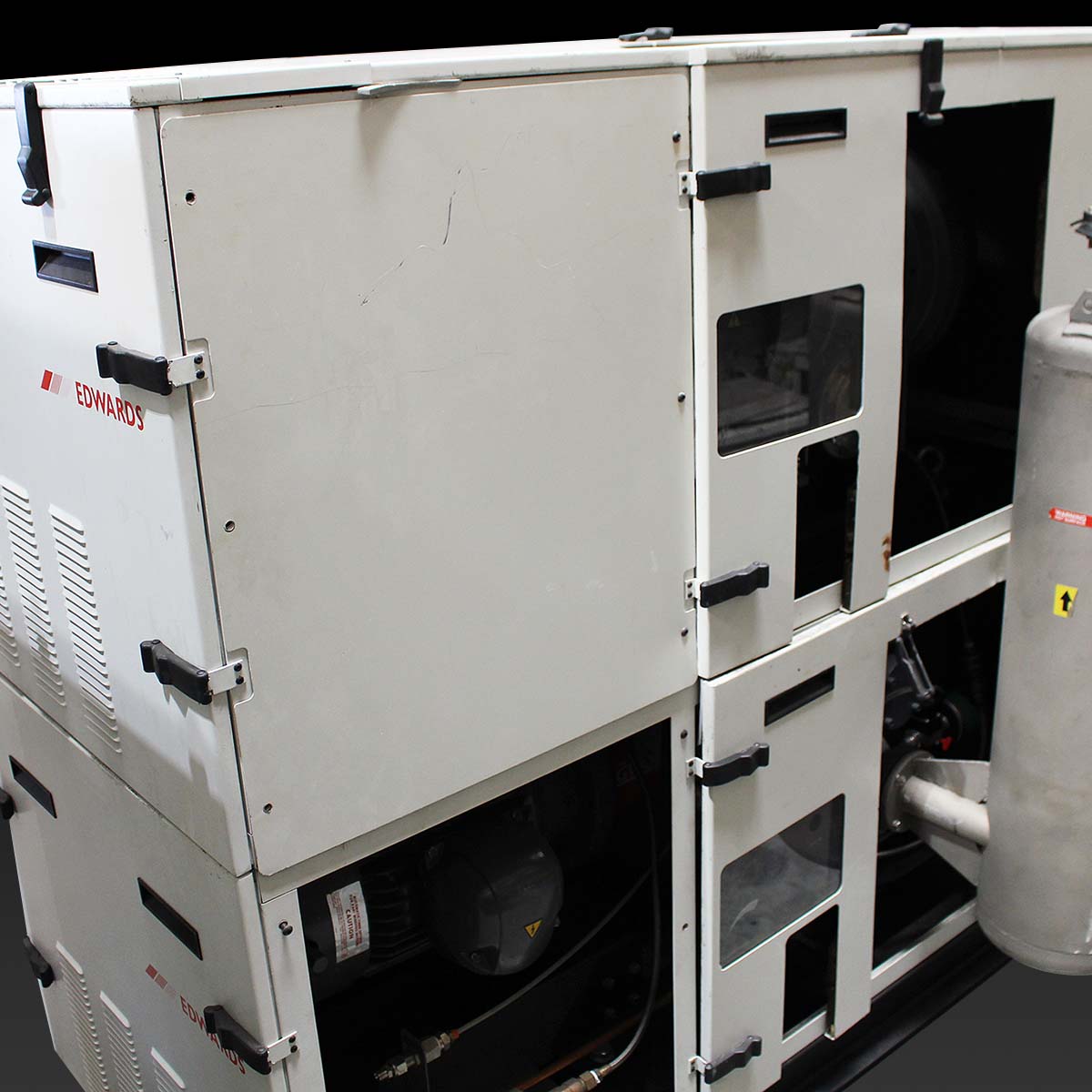

Edwards GV400 DRYSTAR - REBUILT
Call for Price
| Weight | 1810 lbs |
|---|---|
| Pumping Speed | 380 m3/h |
| Ultimate Pressure | 4 x 10-1 mbar |
Edwards GV400 DRYSTAR Industrial Dry Vacuum Pump - REBUILT
The DRYSTAR® GV80 – 600M range is based on the well proven Edwards reverse claw mechanism reaching a peak speed of 560 m3h-1 / 330 ft3min-1. The reverse claw mechanism results in short gas paths within the operating mechanism, providing the ability to handle large amounts of dust and water vapor, when compared to oil sealed pumps, without deterioration of performance. The GV range is able to handle large amounts of dust and water vapor with little or no effect on performance. Advantages to this include:
- Low cost of ownership in harsh conditions
- High reliability – dry mechanism proven in 100,000 installations
- Oil free mechanism – reduced maintenance
- Higher dust and water vapor tolerance
- Accessories to optimize pump performance to process variables
- Fast pump down with Edwards hydrokinetic drive booster pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Construction | 3 claw |
| Displacement | 540 m3h-1 / 318 ft3min-1 |
| Pumping speed | 380 m3h-1 / 225 ft3min-1 |
| Ultimate pressure | < 0.4 mbar / < 0.03 Torr |
| Power consumption at 10 mbar / 7.5 Torr | 7 Kw / 9.4 hp |
| Motor Rating | 18 kW / 24.1 hp |
| Cooling-water flow at 20°C | 4 l min-1 / 1.1 gal min-1 |
| Seal purge (dry air) | < 22 l min-1 @ 0.4 bar / < 0.6 ft-3 @ 6 psig |
| Noise level | 82 dB(A) |
| Inlet connection | ISO100 |
| Outlet connection | ISO63 |
| Weight | 820 kg |
| Gear box oil capacity | 1.5 liter / 0.4 gal |
| Electrical supply | 380/400/415V 50 Hz 3 ph |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards GV DRYSTAR Series - REBUILT | Instruction Manual | Download |
|
|
Edwards DRYSTAR GV250 - GV400 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards GV400 DRYSTAR Industrial Dry Vacuum Pump - REBUILT A70661900 / A706-61-900 GV400 380/400/415V 50Hz A70761908 / A707-61-908 GV400 230/460V 3-phase 60Hz A70611985 / A706-11-985 GV400 bareshaft 50Hz A70711986 / A707-11-986 GV400 bareshaft 60Hz A70615985 / A706-15-985 GV400F bareshaft 50Hz A70715986 / A707-15-986 GV400F bareshaft 60Hz
