Edwards GV400 / EH2600 - REBUILT
| Weight |
2256 lbs |
| Pumping Speed |
1300 cfm |
| Ultimate Pressure |
9 x 10-3 mbar |

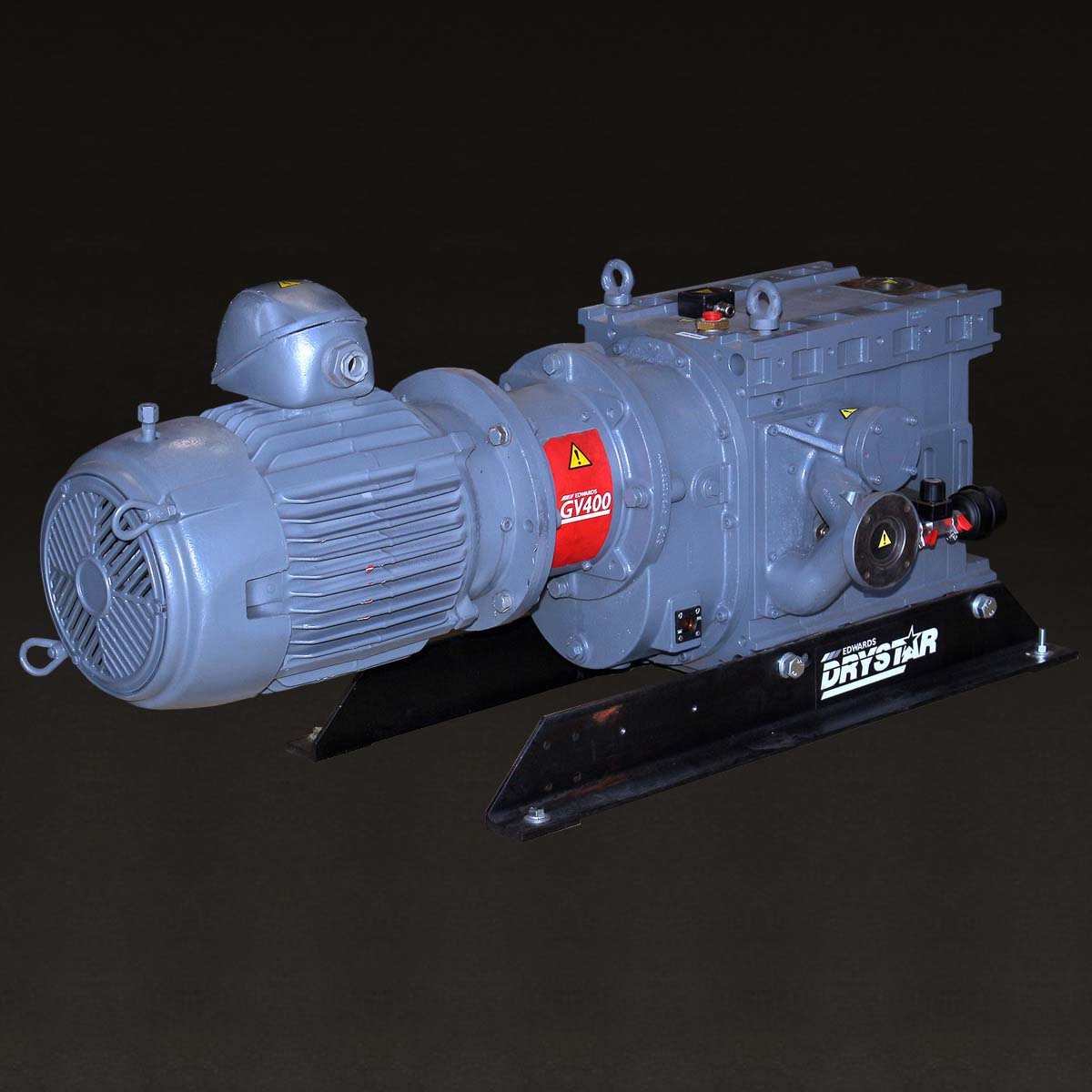

Edwards GV400 / EH2600 Vacuum Blower System - REBUILT
Rebuilt with one year warranty. Edwards EH2600 vacuum blower and GV400 dry pump package. We also offer repair service. View our inventory of Edwards blowers and DRYSTAR pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications |
GV400 |
| Construction |
3 claw |
| Displacement |
540 m3h-1 / 318 ft3min-1 |
| Pumping speed |
380 m3h-1 / 225 ft3min-1 |
| Ultimate pressure |
< 0.4 mbar / < 0.03 Torr |
| Power consumption at 10 mbar / 7.5 Torr |
7 Kw / 9.4 hp |
| Motor Rating |
18 kW / 24.1 hp |
| Cooling-water flow at 20°C |
4 l min-1 / 1.1 gal min-1 |
| Seal purge (dry air) |
< 22 l min-1 @ 0.4 bar / < 0.6 ft-3 @ 6 psig |
| Noise level |
82 dB(A) |
| Inlet connection |
ISO100 |
| Outlet connection |
ISO63 |
| Weight |
820 kg |
| Gear box oil capacity |
1.5 liter / 0.4 gal |
| Electrical supply |
380/400/415V 50 Hz 3 ph |

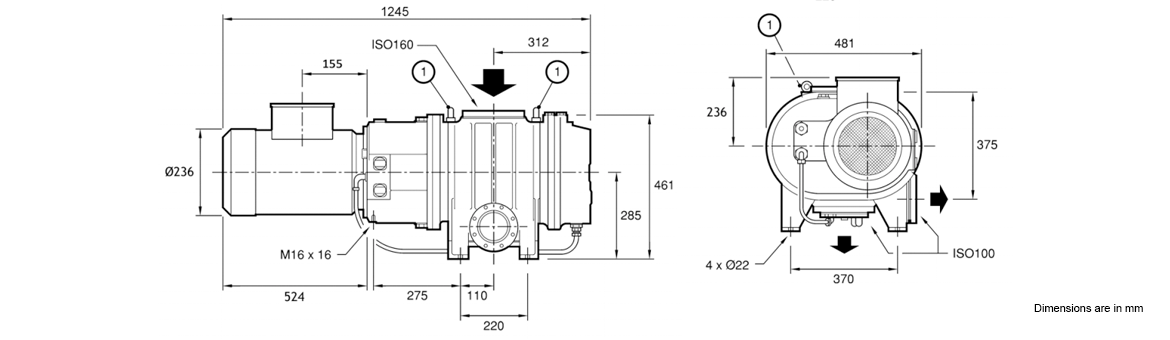

| Specifications |
EH2600 |
| Displacement (swept volume) |
| 50 Hz |
2 |
| Type |
Label |
Description |
Download |
|
|
Edwards GV DRYSTAR Series - REBUILT |
Instruction Manual |
Download
|
|
|
Edwards DRYSTAR GV250 - GV400 - REBUILT |
Instruction Manual |
Download
|
