Edwards GV600 / EH4200 - REBUILT
Call for Price
In stock
SKU
REBUILT_GV600/EH4200
| Weight | 2937 lbs |
|---|---|
| Pumping Speed | 560 m3/h |
| Ultimate Pressure | 5 x 10-2 mbar |

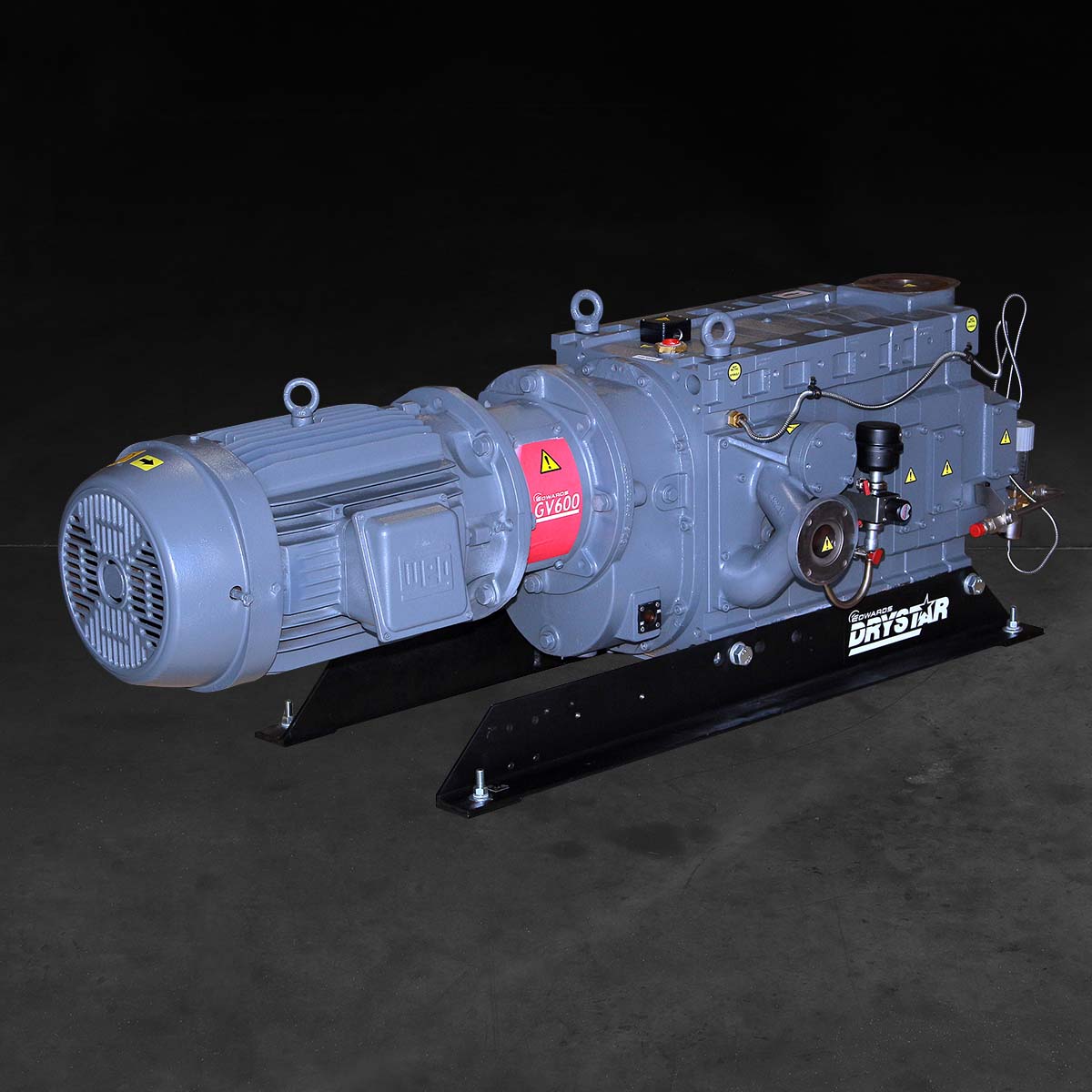

Edwards GV600 / EH4200 Vacuum Blower System - REBUILT
Rebuilt with one year warranty. Edwards EH4200 vacuum blower and GV600 dry pump package. We also offer repair service. View our inventory of Edwards blowers and DRYSTAR pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | GV600 |
|---|---|
| Construction | 3 claw + 1 roots |
| Displacement | 793 m3h-1 / 467 ft3min-1 |
| Pumping speed* | 560 m3h-1** / 330 ft3min-1** |
| Ultimate pressure | < 0.05 mbar / < 0.0375 Torr |
| Power consumption at 10 mbar / 7.5 Torr | 7 Kw / 9.4 hp |
| Motor Rating | 22.5 kW / 30 hp |
| Cooling-water flow at 20°C | 5.5 l min-1 / 1.43 gal min-1 |
| Seal purge (dry air) | < 22 l min-1 @ 0.4 bar / < 0.6 ft-3 @ 6 psig |
| Noise level | 80 dB(A) |
| Inlet connection | ISO100 |
| Outlet connection | ISO63 |
| Weight | 950 kg / 2,100 lbs |
| Gear box oil capacity | 1.6 liter / 0.42 gal |
| Electrical supply | 380/415V 50 Hz 3-phase |
* Measured in accordance with Pneurop 6602 at 40°C
** GV600 @ 1 mbar
| Specifications | EH4200 |
|---|---|
| Displacement (swept volume) | |
| 50 Hz | 4 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards GV DRYSTAR Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards GV600 / EH4200 Vacuum Blower System - REBUILT
