Edwards nEXT200200D - REBUILT
Call for Price

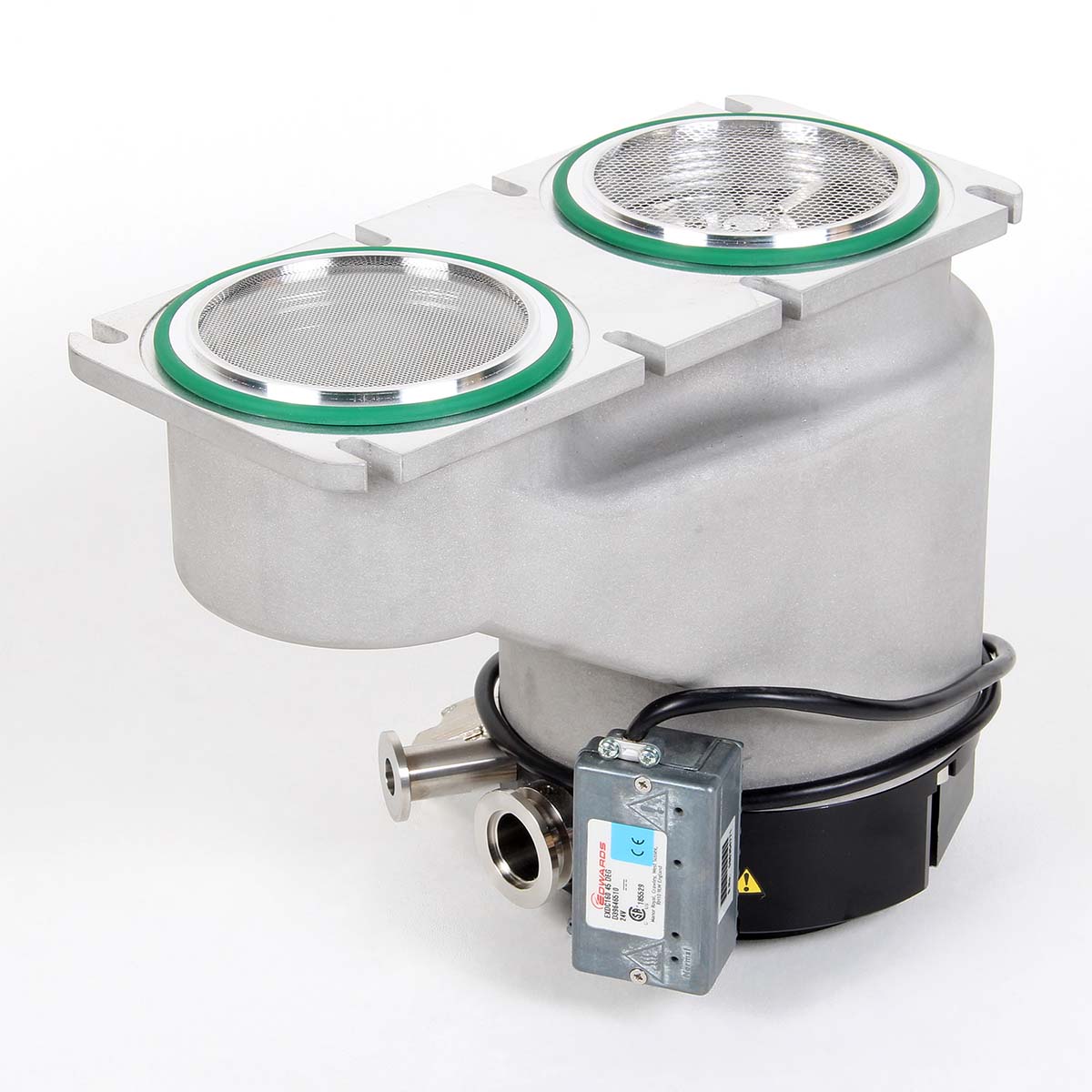

Edwards nEXT200200D Turbomolecular Vacuum Pump - REBUILT
The Edwards nEXT turbomolecular and compound molecular pumps provide a reliable, hydrocarbon-free high and ultra high vacuum. Utilizing multi-stage axial flow turbines combined with magnetic and ceramic bearings, the nEXT design provides oil and vibration free operation with minimal maintenance on high critical foreline pressure processes.
A nEXT pump has a turbomolecular pump with a permanently attached controller which has drive electronics. The controller controls the electrical supply to the pump with the exception of standby speed control. The controller has no manual controls and can be operated through the logic interface only.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | nEXT200200D | nEXT200200iD | nEXT200200T | nEXT200200iT |
|---|---|---|---|---|
| Mass | 9.1 kg | 9.4 kg | ||
| Inlet flange | DN 100 ISO | |||
| Outlet flange | DN25NW | |||
| Vent & purge ports | 1/8" BSP | |||
| Interstage port | - | DN 25 NW | - | DN 25 NW |
| Booster port | - | DN 25 NW | ||
| Main inlet pumping speed | ||||
| N2 | 200 l/s | |||
| Ar | 190 l/s | |||
| He | 185 l/s | |||
| H2 | 145 l/s | |||
| Side inlet pumping speed | ||||
| N2 | 165 l/s | |||
| Ar | 145 l/s | |||
| He | 225 l/s | |||
| H2 | 195 l/s | |||
| Side to main inlet port compression ratio | ||||
| N2 | 8,500 | |||
| He | 500 | |||
| H2 | 100 | |||
| Backing to side port compression ratio | ||||
| N2 | > 1 x 107 | |||
| He | 1.7 x 105 | 5 x 105 | ||
| H2 | 9 x 103 | 2 x 104 | ||
| Interstage pumping speed | ||||
| N2 | - | 13 l/s | - | 13 l/s |
| He | - | 13 l/s | - | 13 l/s |
| H2 | - | 11 l/s | - | 11 l/s |
| Peak booster pumping speed (nitrogen) | ||||
| RV12 backing pump | - | 26 m3h-1 | - | 26 m3h-1 |
| XDS10 backing pump | - | 24 m3h-1 | - | 24 m3h-1 |
| Recommended backing pump | RV12 / XDS10 | |||
| Operating attitude | Vertical and upright to horizontal ± 2° | |||
| Normal rotational speed | 60,000 r/min-1 | |||
| Starting time to 90% speed * | 165 sec | 195 sec | ||
| Sound pressure level (1 metre away) | < 45 dB(A) ± 3 dB(A) Declared dual number noise emission values in accordance with ISO4871 | |||
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards nEXT200200 - REBUILT | INSTRUCTION MANUAL | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL: nEXT200200D Turbomolecular Vacuum Pump - REBUILT CODE: B852-00-522 / B85200522 nEXT200200D 160W SPEC CODE: B852-00-523 / B85200523 nEXT200200D REV SF 160W CODE: B852-00-524 / B85200524 nEXT200200D HQU ISO100 160W
