Edwards SCU-1601 - NEW
Call for Price

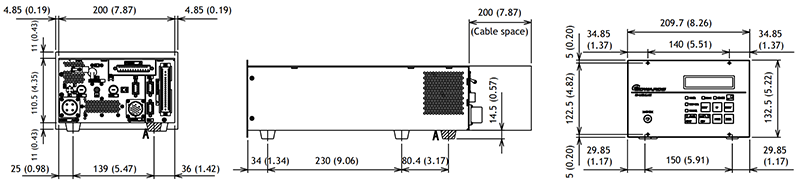

| Height | 132.5 mm |
|---|---|
| Width | 209.7 mm |
| Length | 498.5 mm |
| Weight | 27 lbs |
Edwards SCU-1601 Turbomolecular Vacuum Pump Control Unit - NEW
The fully digital SCU-1601 turbo pump control unit is compatible with STP turbo pumps for large sized turbo pumps over 2,000 l/s.
Vibration Reduction System (VRS) and Auto Balancing System (ABS) technology reduces vibration levels, and the advanced maintenance warning functions enable intelligent maintenance schedule.
Simplified network connectivity to EdCentra without need for additional hardware enables equipment monitoring and data analytics.
The SCU-1601 provides reliability, enhanced communication and pump compatibility with reduced back-up unit requirements and minimised overall cost of ownership.
Advanced pre-maintenance function
- Service port in front panel
- Two-stage warning messages
- Rotor imbalance monitoring
- Back-up bearing damage monitoring
- Self-diagnostic functions
Universal controller
- Digital communications
- For STP-A2203/F2203/XA2703/XA3203/XA4503/XW3503 and future models
Communication options
- I/O remote
- RS232/485
- LonWorks (option)
- PROFIBUS (option)
- EtherCAT (option)
Low Vibration
- Vibration Reduction System (VRS)
- Auto balancing system (ABS)
Connectivity
- Ethernet port
- EdCentra equipment monitoring & data analytics compatible
Certification
- SEMI® compliant, CE Marked, UL Listed and RoHS directive compliant
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Magnetic bearing control system | Digital control |
| Input voltage | 200 - 240 ± 10 VAC |
| Input power (w/out TMS) | 1,500 VA maximum |
| Input power (w/ TMS) | 2,100 VA maximum |
| Input frequency | 50/60 ±2 Hz |
| Leak current | 3.5 mA |
| Main breaker rated current | 15 A |
| Motor drive system | 3 phase DC |
| Allowable ambient temperature | 0 to 40°C (32 to 104°F) |
| Weight | 11 kg |
| Operation switch | START, STOP, RESET, SELECT, UP, DOWN, ENTER, MANUAL/REMOTE changeover |
| Panel display | LCD |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards SCU-1601 Turbomolecular Vacuum Pump Control Unit - NEW YT96Z0Z00 / YT96-Z0-Z00 SCU-1601 Control Unit YT96Z3Z00 / YT96-Z3-Z00 SCU-1601 Control Unit EtherCAT
-

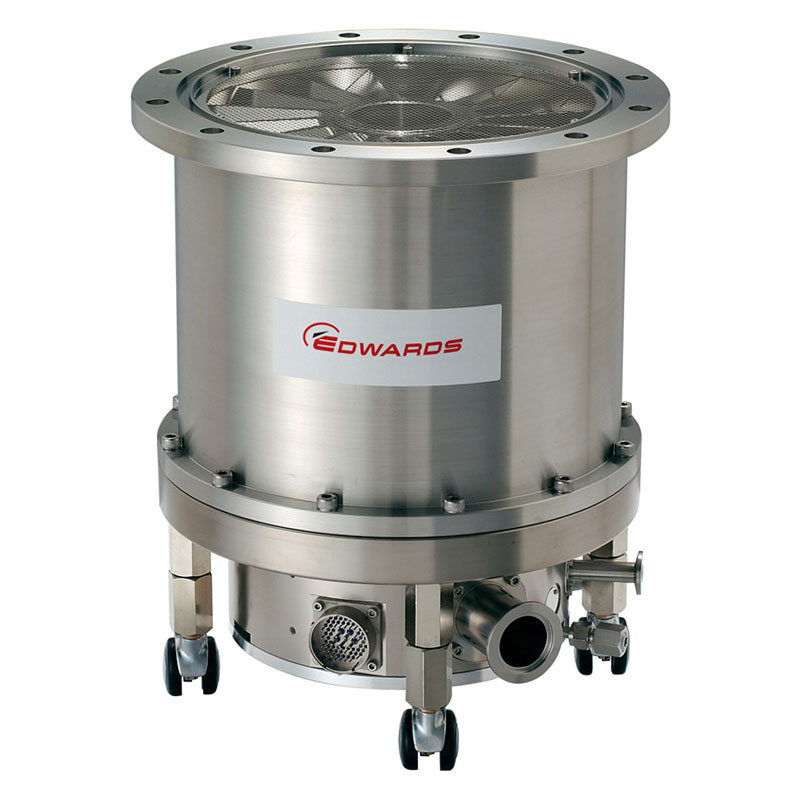

Edwards STPA2203C - NEWCall for Price
-
