Edwards Stokes 149H-11 Microvac - REBUILT
| Weight |
675 lbs |
| Motor Power |
3 hp |
| Pumping Speed |
80 cfm |
| Ultimate Pressure |
1.3 x 10-2 mbar |
|---|
Edwards Stokes 149H-11 Microvac Rotary Piston Vacuum Pump - REBUILT
As part of the Atlas Copco group, Stokes Vacuum continues to innovate oil-lubricated rotary piston pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Ultimate vacuum |
10 Microns HG. or less |
| Displacement |
80 cfm |
| Pump speed |
490 RPM |
| Motor |
3 hp |
| Motor speed |
1,800 RPM SYNC. |
| Suction |
2" STD FLG. |
| Discharge |
1-1/2" NPT |
| Water inlet |
1/2" NPT |
| Water outlet |
1/2" NPT |
| Oil capacity |
2 1/2 Gal. (10 liters) |
| Net weight |
565 lbs (256 Kg) |
| Shipping weight |
675 lbs (306 Kg) |

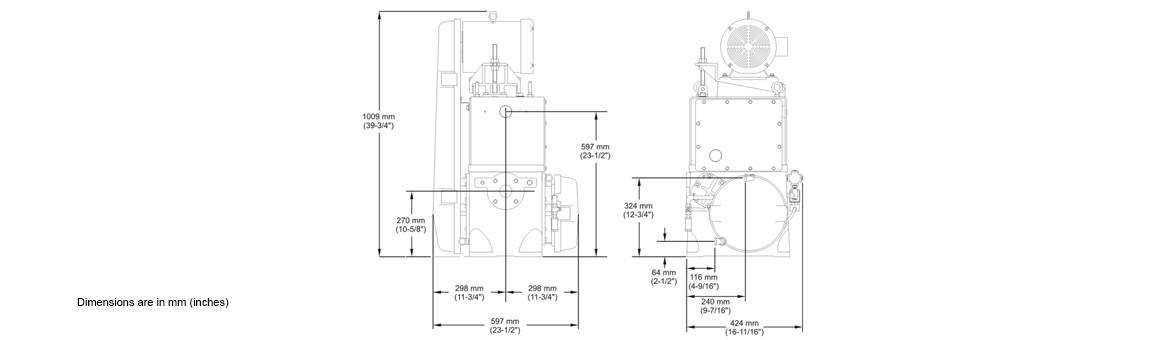

| Height |
987 mm |
| Floor space |
597 mm X 511 mm |
| Cooling |
Water |
Specifications
| Type |
Label |
Description |
Download |
|
|
Edwards Stokes Microvac Series - REBUILT |
Instruction Manual |
Download
|
|
|
Stokes Microvac Series - REBUILT |
Operating Instructions |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Stokes 149H-11 Microvac Rotary Piston Vacuum Pump - REBUILT
900-149-011 149H 230/460V three-phase 60Hz w/ 230/460V coil
900149011501 149H 400V 3-phase 60Hz w/ 380V coil
900149011502 149H 400V 3-phase 60Hz w/ 415V coil
900149011503 149H 400V 3-phase 60Hz w/ 380V coil w/ water miser
900149011504 149H 400V 3-phase 60Hz w/ 415V coil w/ water miser
930-149-011 149HS 230/460V 3-phase 60Hz w/ 230/460V coil
