Edwards Stokes 212J Microvac - REBUILT
Call for Price
In stock
SKU
REBUILT_212J
| Weight | 950 lbs |
|---|---|
| Motor Power | 7.5 hp |
| Pumping Speed | 234 m3/h |
| Ultimate Pressure | 3.3 x 10-2 mbar |

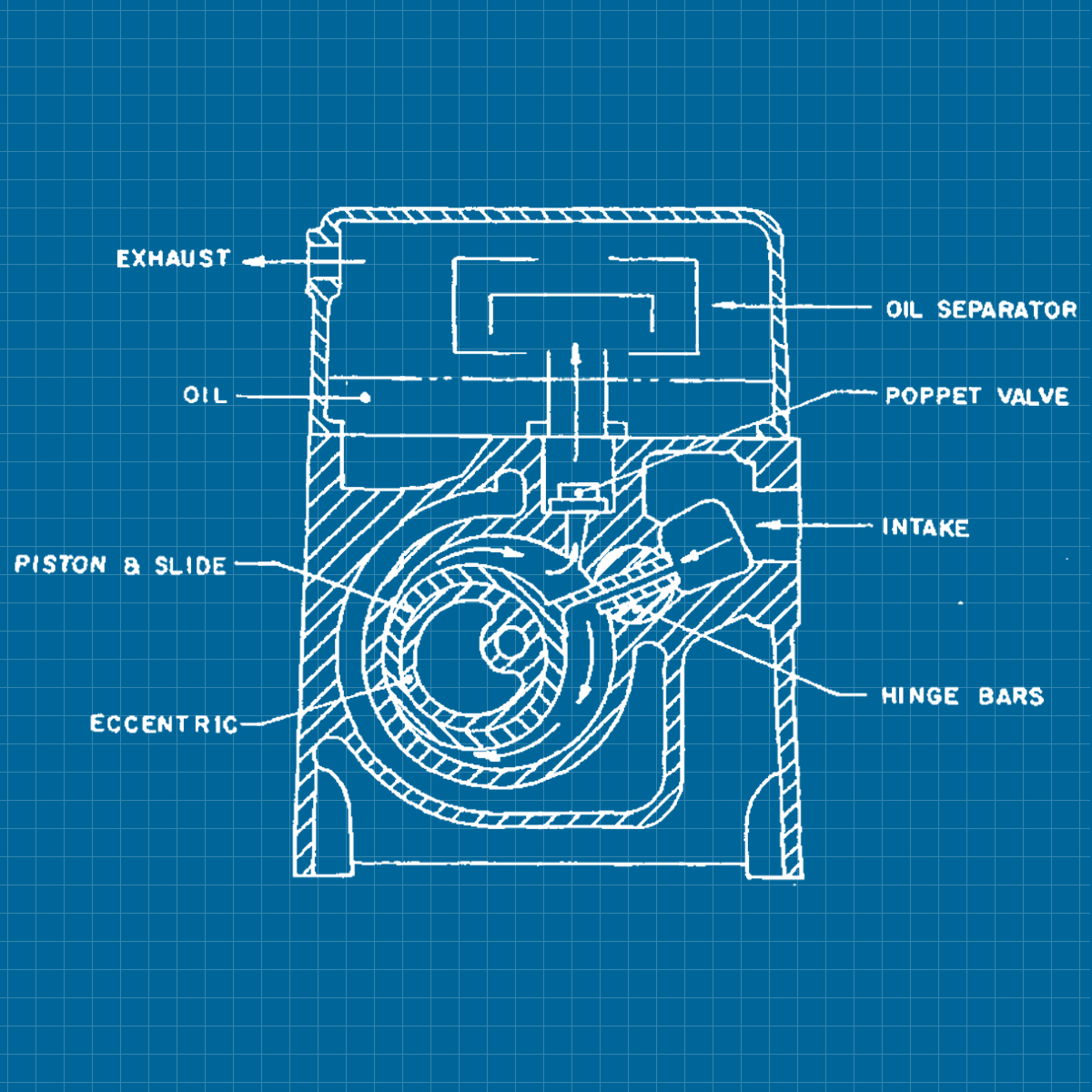

Edwards Stokes 212J Microvac Rotary Piston Vacuum Pump - REBUILT
Features & Benefits
- Same connections as existing 212H - no changes to existing pipe work.
- Same footprint as previous 212H - drop in replacement.
- Integral gas ballast valve - ease of facilitating automatic gas ballast, no external valve to damage.
- Integral oil piping - leak-free performance in a modern, attractive design.
- Improved motor mounting platform - solid design minimises belt wear.
- Integral gas ballast valve - quick adaptation to automatic gas ballast, no external valve to snag.
- Computer aided shaft design - fine tuned for improved balance and vibration.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | 255 m3h-1 / 150 ft3min-1 |
| Pumping speed | 234 m3h-1 / 138 ft3min-1 |
| Ultimate vacuum (total pressure) | |
| w/out gas ballast | < 3.3 x 10-2 mbar / < 2.5 x 10-2 Torr |
| w/ gas ballast | < 2.6 x 10-2 mbar / < 2 x 10-2 Torr |
| 50Hz motor size (TEFC) | 5.5 kW IEC (CE variant) |
| 60Hz motor size (TEFC) | 7.5 hp TEFC |
| Motor speed | 1,800 rpm |
| Inlet connection | 3 inch ASA/ANSI flange |
| Exhaust connection | 2 inch ASA/ANSI flange or 2 inch NPT |
| Water inlet/outlet connection | 1/2 inch NPT |
| Recommended cooling flow @ 85°C / 30°F | 5.7 lmin-1 / 1.5 gal min-1 |
| Water vapour pumping rate | 5 kg h-1 / 11 lb h-1 |
| Oil capacity | 15 litre / 4 gal |
| Recommended oil | V lube F |
| Noise | < 77 dB(A) |
| Weight | 431 kg / 950 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards Stokes Microvac Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Stokes 212J Microvac Rotary Piston Vacuum Pump - REBUILT 900-212-014 212J 230/460V three-phase 60Hz w/ 230/460V coil 900212014501 212J 400V 3-phase 60Hz w/ 380V coil 900212014502 212J 400V 3-phase 60Hz w/ 415V coil 900212014503 212J 400V 3-phase 60Hz w/ 380V coil w/ water miser 900212014504 212J 400V 3-phase 60Hz w/ 415V coil w/ water miser
