Edwards Stokes 607-1 - REBUILT
Call for Price
In stock
SKU
REBUILT_607-1
| Weight | 760 lbs |
|---|---|
| Motor Power | 10 hp |

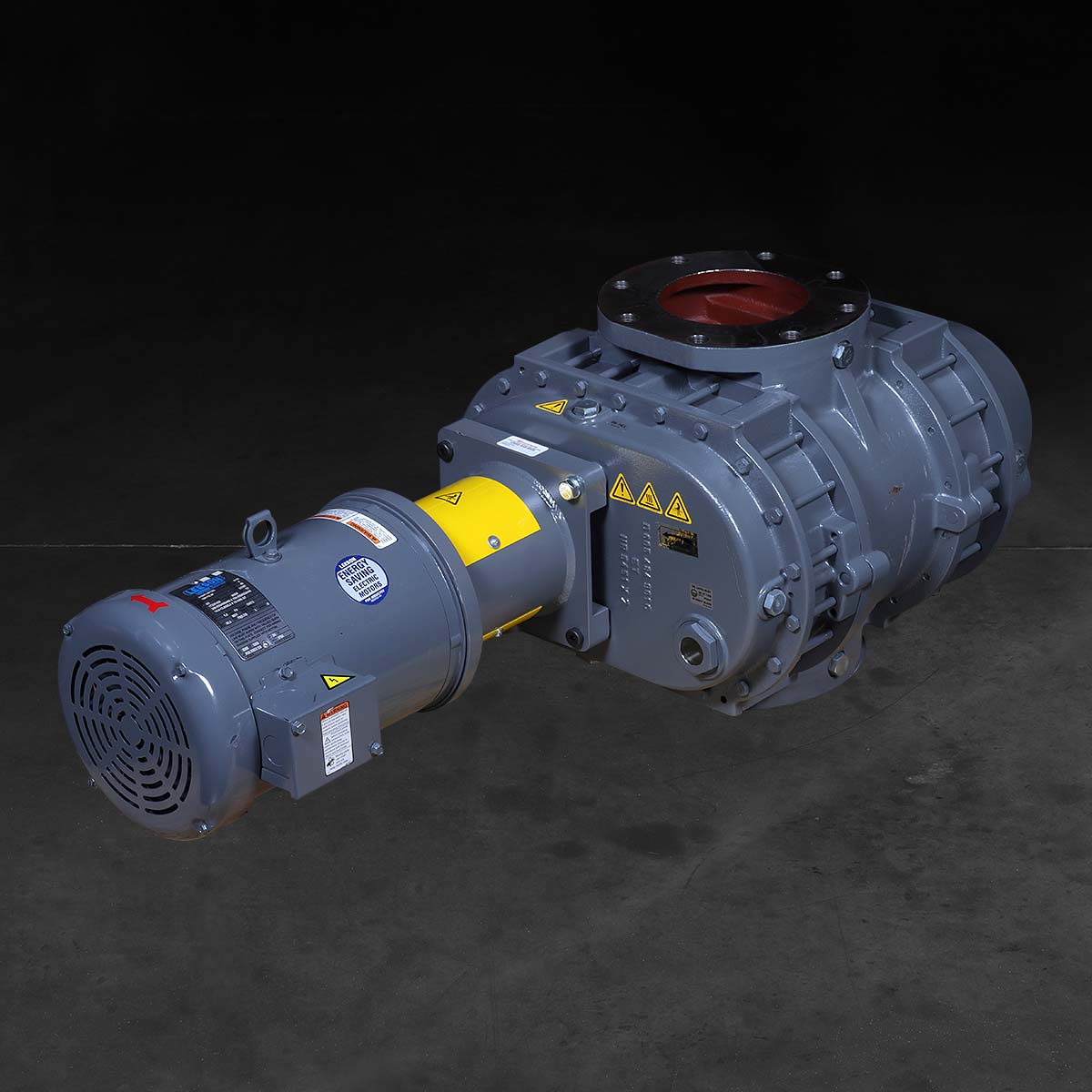

Edwards Stokes 607-1 Roots Vacuum Blower - REBUILT
The Stokes 6" Series mechanical booster pumps provide high throughput pumps for industrial and arduous chemical applications. Utilizing reliable, rugged designs, these pumps offer a low cost, space saving pumping system.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | Horizontal flow | Vertical flow |
|---|---|---|
| Displacement | ||
| V belt (2,750 rpm) | 1,589 m3h-1 / 935 ft3min-1 | |
| Direct drive (3,000 rpm) | 1,733 m3h-1 / 1,020 ft3min-1 | |
| Direct drive (3,600 rpm) | 2,080 m3h-1 / 1,224 ft3min-1 | |
| Inlet / outlet flanges | 6” ASA / ANSI | |
| Motor power EU / Asia | 7.5 kW | |
| Motor power US TEFC | 10 hp | |
| Cooling water | 7.6 - 11.4 l min-1 / 2 - 3 gal min-1 | |
| Oil capacity | 1.9 liter / 0.51 gal | 4.1 liter / 1.1 gal |
| Max pressure differential | 506 mbar / 380 Torr | |
| Max temp rise | 135°C / 275°F | |
| Max discharge temp | 191°C / 375°F | |
| Weight bare shaft | 215 kg / 475 lbs | |
| Weight TEFC direct drive | 345 kg / 760 lbs | |
| Recommended oil | V-Lube H | |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards MHR & MVR 607 - 622 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Stokes 607-1 Vacuum Blower - REBUILT 900-607-1 607-1 / 607-001 Vertical V-belt drive 650 cfm 900-607-2 607-2 / 607-002 Horizontal V-belt drive 900-607-401 607-401 Vertical direct drive 900-607-402 607-402 Horizontal direct drive 1,300 cfm 900-607-403 607-403 Vertical direct drive Roots Vacuum Blower - REBUILT 607
