Edwards STP-A2203CV - REBUILT

Name: Edwards STP-A2203CV - REBUILT
Brand: Edwards
SKU: REBUILT_STPA2203CV

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_STPA2203CV

Request For Quote

Weight	135 lbs
Pumping Speed	2,200 l/s
Ultimate Pressure	1 x 10^-8 torr

Description

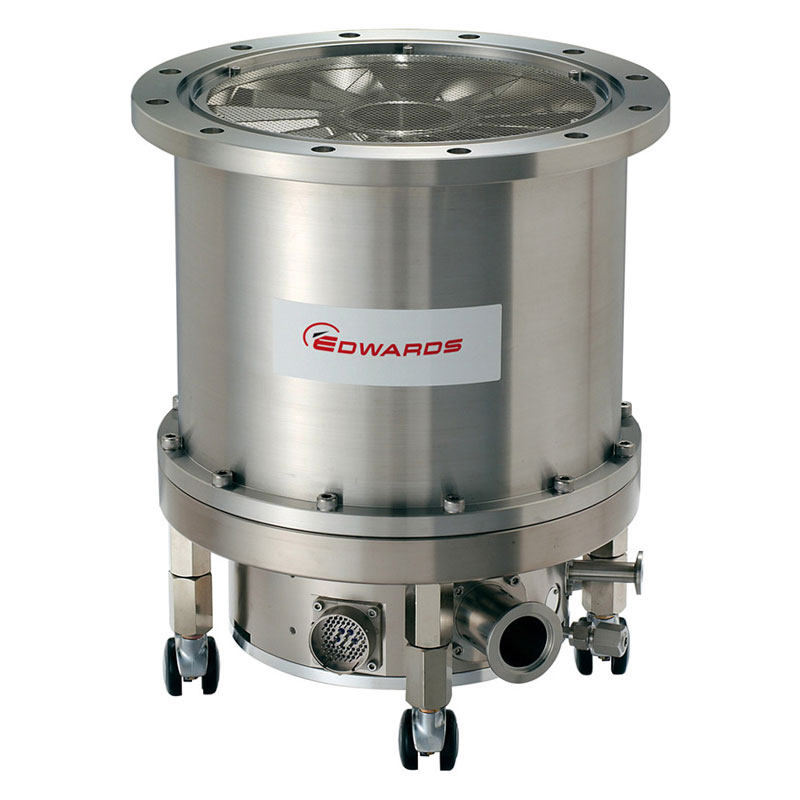

Edwards Seiko Seiki STP-A2203C Turbomolecular Vacuum Pump - REBUILT

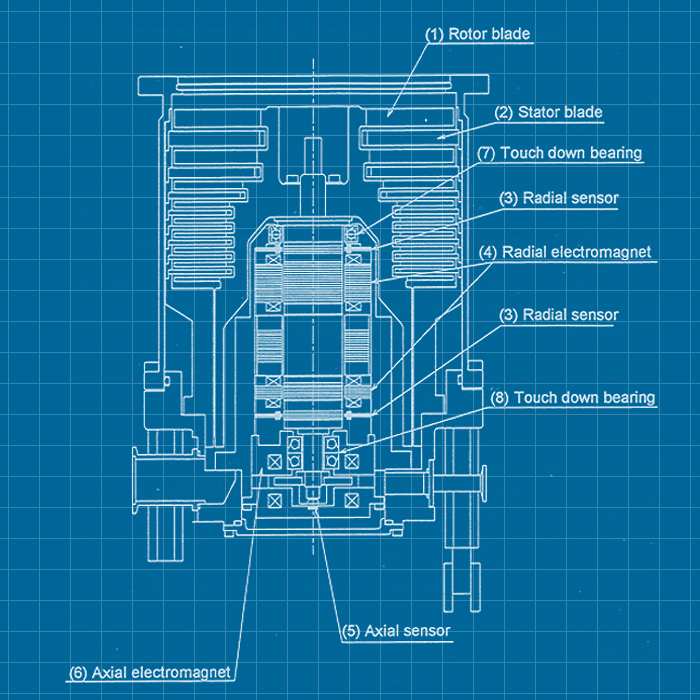

An STP pump can be installed in any orientation and operate by remote control. If any rotor imbalance occurs (by deposition of process by-products, for example) sensors detect changes in its motion and compensate the magnetic fields accordingly. There are backup precision mechanical bearings to protect the pump in the event of a total disruption of magnetic suspension or a sudden massive air inrush that overcomes the magnetic bearing stiffness.

Model names ending in a C are corrosion-resistant, with nickel-coated rotors and stators and a nitrogen purge port. Ones with a prefix of H or A are high throughput pumps incorporating a hybrid pumping mechanism for higher gas flow. These are optimized for processes such as plasma etch. We also offer repair service.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet flange	ISO-250F
Outlet port	KF-40
Purge port	KF-10
Water cooling fitting	PT1/4
Pumping Speed
N₂	2,200 l/s
H₂	1,700 l/s
Compression ratio
N₂	> 10⁸
H₂	> 2.5 x 10⁴
Ultimate pressure	10^-6 Pa (10^-8 Torr)
Maximum allowable backing pressure	400 Pa (3 Torr)
Maximum nitrogen throughput	1,500 sccm
Rated speed	27,000 rpm
Starting time	7 min
Mounting position	Any
Water cooling flow	2 l/min^-1
Water cooling temperature	5 - 25°C
Pressure	0.3 MPa
Recommended purge gas flow	20 sccm
Input voltage	200 to 240 (± 10) VAC
Power consumption	1.5 kVA
Pump weight	61 kg

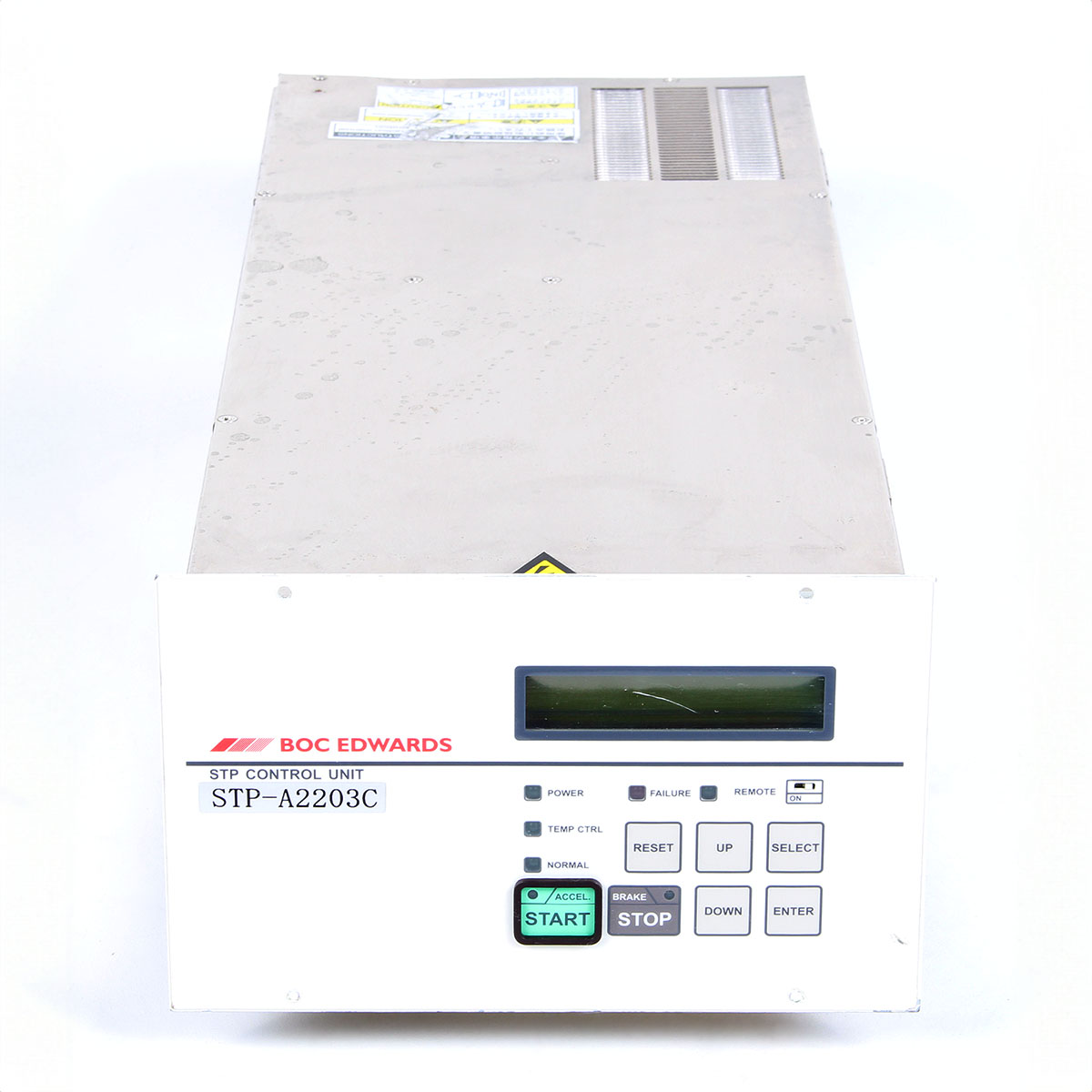

Controller weight	11 kg

Digital Manuals

Type	Label	Description	Download
	Edwards STP Series	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards Seiko Seiki STP-A2203C Turbomolecular Vacuum Pump - REBUILT

P/N B750-03-000 / B75003000  STP-A2203C
P/N PT41-SZ-000 / PT41SZ000  STP-A2203C2
P/N PT41-SZ-050 / PT41SZ050  STP-A2203C3
    YT4V-0Z-002 / YT4V0Z002  STP-A2203C  ISO-250F Inlet
    YT4V-0Z-003 / YT4V0Z003  STP-A2203C  DN 250 CF Inlet
    YT41-6Z-010 / YT416Z010  STP-A2203CV
    YT4V-66-001 / YT4V66001  STP-A2203CV  TMS ISO-250F Inlet
    YT4V-66-002 / YT4V66002  STP-A2203CV  TMS DN 250 CF Inlet
                             STP-A2203C1 - PURGE PORT
                             STP-A2203C2 - CUTTING STATOR BLADES
                             STP-A2203C3 - P055 MOTOR TRIPLE COOLING
                             STP-A2203CV - 60 DEGREES CELSIUS
                             STP-A2203C2V - 65 DEGREES CELSIUS
                             STP-A2203CS (P041VE)
                             STP-H2001
