Edwards STP-A2203PV - REBUILT
Call for Price
| Weight | 135 lbs |
|---|---|
| Pumping Speed | 2,200 l/s |
| Ultimate Pressure | 1 x 10-8 torr |

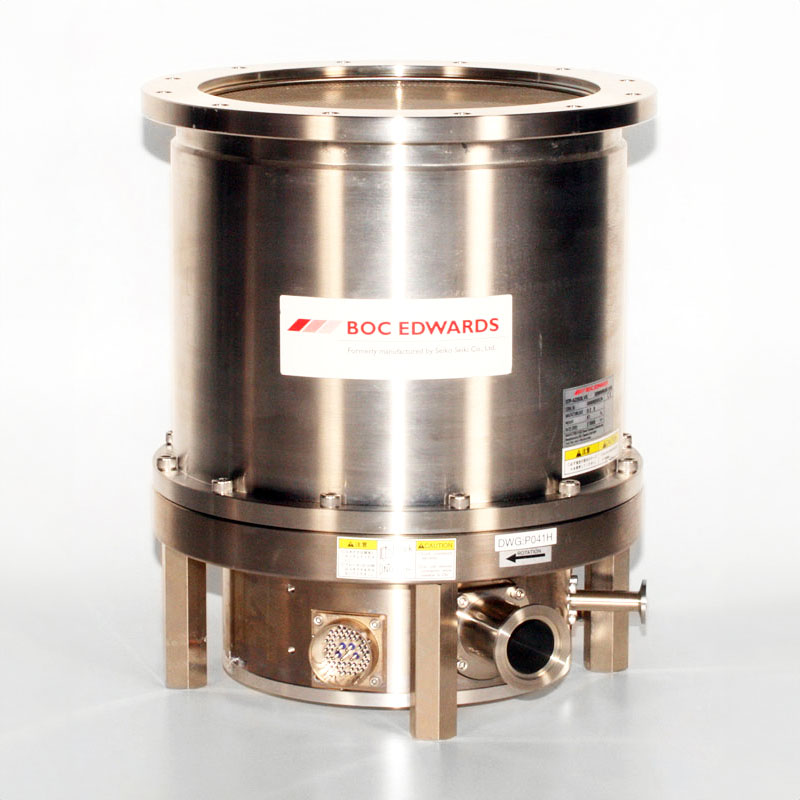

Edwards Seiko Seiki STP-A2203PV Turbomolecular Vacuum Pump - REBUILT
An STP pump can be installed in any orientation and operate by remote control. If any rotor imbalance occurs (by deposition of process by-products, for example) sensors detect changes in its motion and compensate the magnetic fields accordingly. There are backup precision mechanical bearings to protect the pump in the event of a total disruption of magnetic suspension or a sudden massive air inrush that overcomes the magnetic bearing stiffness.
Model names ending in a C are corrosion-resistant, with nickel-coated rotors and stators and a nitrogen purge port. Ones with a prefix of H or A are high throughput pumps incorporating a hybrid pumping mechanism for higher gas flow. These are optimized for processes such as plasma etch.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet flange | ISO-250F |
| Outlet port | KF-40 |
| Purge port | KF-10 |
| Water cooling fitting | PT1/4 |
| Pumping speed | |
| N2 | 2,200 l/s |
| H2 | 1,700 l/s |
| Compression ratio | |
| N2 | > 108 |
| H2 | > 2.5 x 104 |
| Ultimate pressure | 10-6 Pa (10-8 Torr) |
| Maximum allowable backing pressure | 400 Pa (3 Torr) |
| Maximum nitrogen throughput | 1,500 sccm |
| Rated speed | 27,000 rpm |
| Starting time | 7 min |
| Mounting position | Any |
| Water cooling flow | 2 l/min-1 |
| Water cooling temperature | 5 - 25°C |
| Pressure | 0.3 MPa |
| Recommended purge gas flow | 20 sccm |
| Input voltage | 200 to 240 (± 10) VAC |
| Power consumption | 1.5 kVA |
| Pump weight | 61 kg |
| Controller weight | 11 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards STP Series | Instruction Manual | Download |
