Edwards STP-A3003CV - REBUILT
Call for Price
In stock
SKU
REBUILT_STPA3003CV
| Weight | 200 lbs |
|---|---|
| Pumping Speed | 3,000 l/s |
| Ultimate Pressure | 1 x 10-8 Torr |

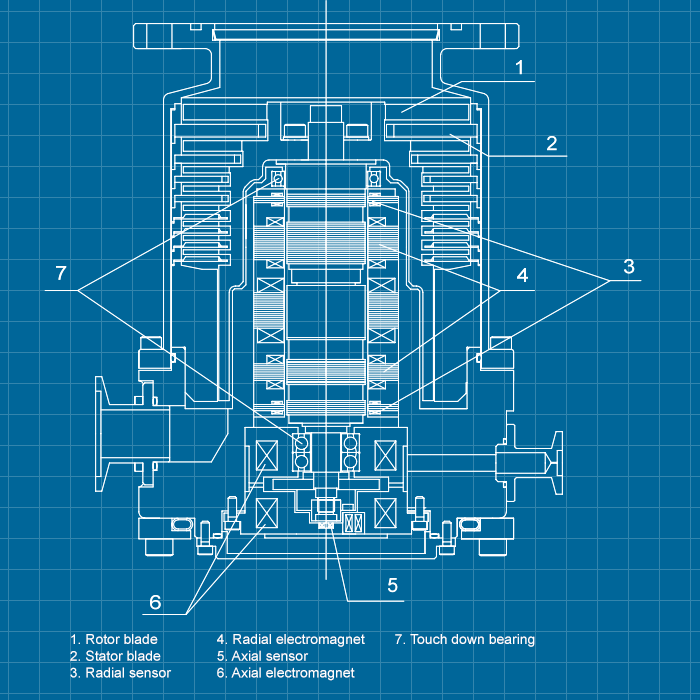

Edwards Seiko Seiki STP-A3003CV Turbomolecular Vacuum Pump - REBUILT
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

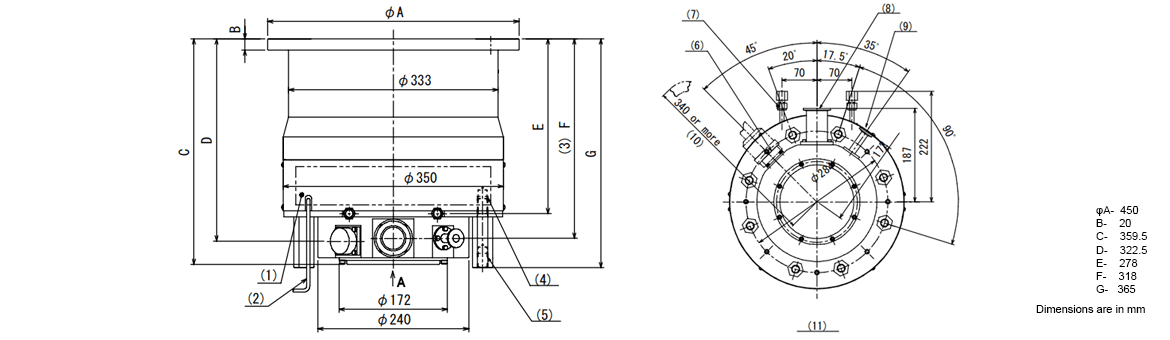

| Inlet flange | VG-300 / VG-350 / ISO-320F |
| Outlet flange | KF-40 |
| Pumping speed | |
| N2 (l/s) | 3,000 |
| H2 (l/s) | 1,800 |
| Compression ratio | |
| N2 | > 108 |
| H2 | 6 x 103 |
| Ultimate pressure / Pa (Torr) | 10-6 (10-8) order [after baking] |
| Maximum gas flow-rate | |
| N2 Pa.m3/s (SCCM) | 3.0 (1,800) water cooling, 1.5 (900) TMS unit is used (60°C) |
| Ar Pa.m3/s (SCCM) | 1.5 (900) water cooling, 1.0 (600) TMS unit is used (60°C) |
| Allowable backing pressure / Pa (Torr) | 333 (2.5) water cooling / TMS unit used |
| Flow rate of purge gas / N2 Pa.m3/s (SCCM) | 3.4 x 10-2 (20) |
| Rated speed | 27,000 rpm |
| Backup rotational speed | Approximately 6,000 rpm |
| Starting time | 9 min with SCU-1500 / SCU-1600, 10 min with SCU-1400 |
| Stopping time | 9 min with SCU-1500 / SCU-1600, 11 min with SCU-1400 |
| Noise | < 50 db (at 27,000 rpm) |
| Temperature Management System (TMS) | Available |
| Baking temperature | < 120°C |
| Lubricating oil | Not necessary |
| Installation position | Free |
| Cooling method | Water cooling |
| Recommended backing-pump | > 1,300 l/min |
| Mass | 72 kg |
| Ambient temperature range | 0 to 40°C |
| Storage temperature range | -25 to 55°C |
| Applicable control unit | SCU-1400 / SCU-1500 / SCU-1600 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards STP Series | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Seiko Seiki STP-A3003CV Turbomolecular Vacuum Pump - REBUILT
