Edwards STP-iXR1606 - NEW

Name: Edwards STP-iXR1606 - NEW
Brand: Edwards
SKU: NEW_STP-iXR1606

Be the first to review this product

Call for Price

Out of stock

SKU

NEW_STP-iXR1606

Request For Quote

Weight	107 lbs
Pumping Speed	2,200 l/s
Ultimate Pressure	1 x 10^-8 Torr

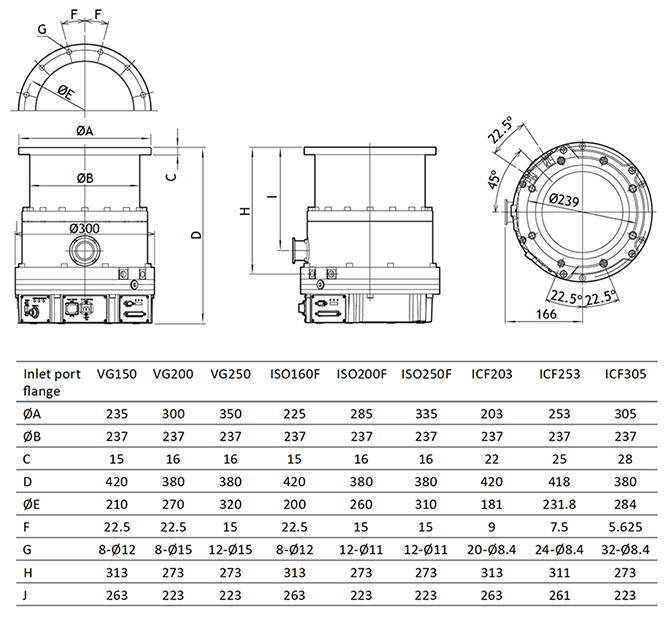

Dimensions

Description

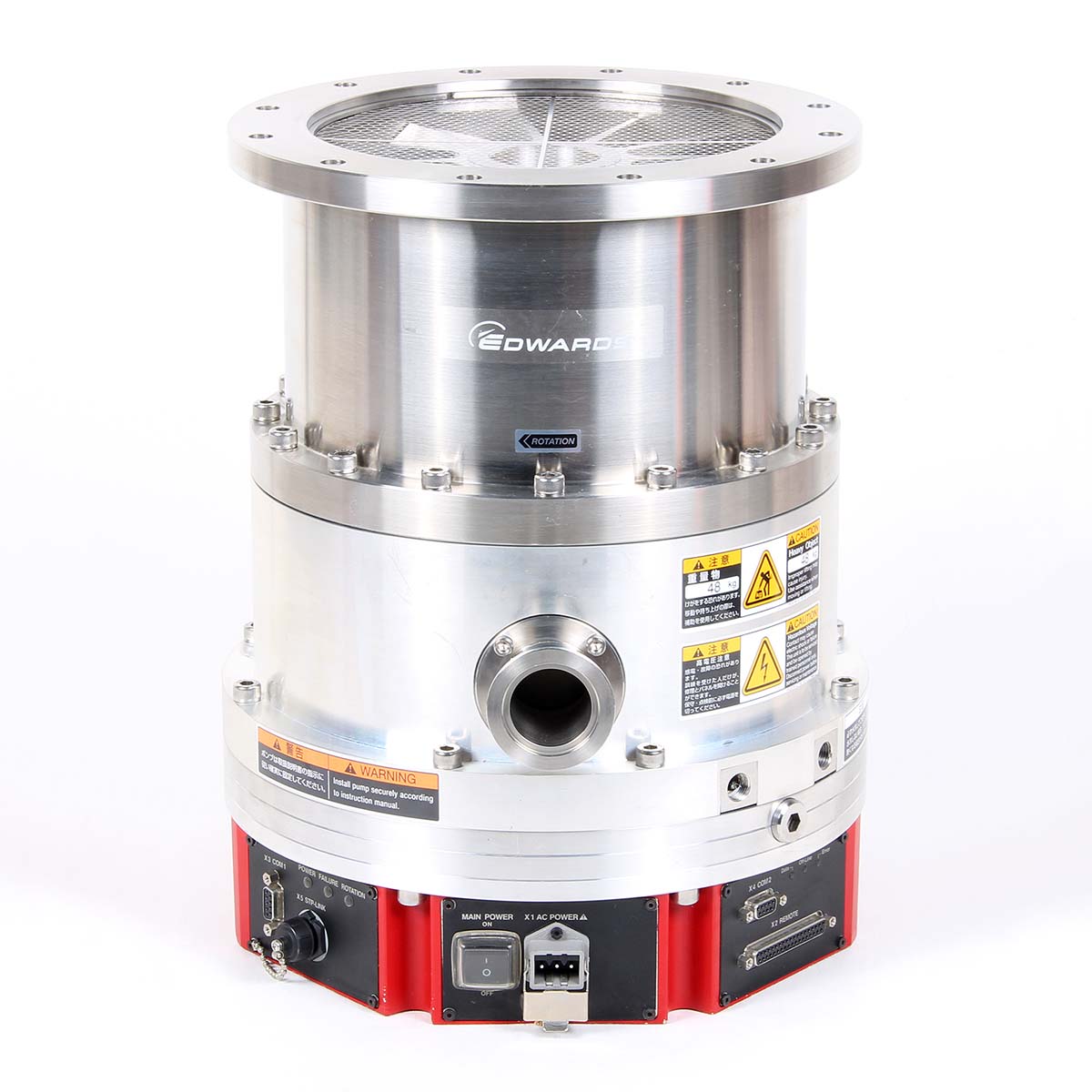

Edwards STP-iXR1606 Turbomolecular Vacuum Pump - NEW

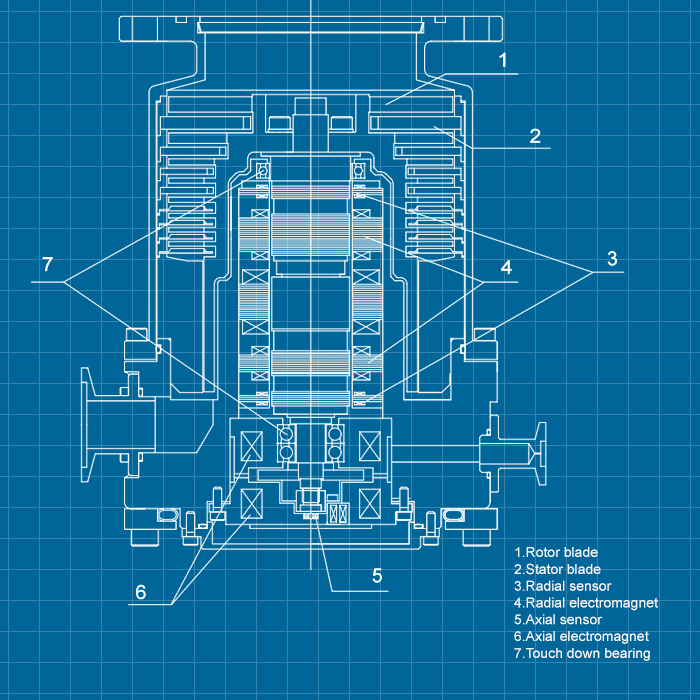

The STP-iXR1606 series magnetically levitated turbo-molecular pump provides industry-leading performance and incorporates latest technology small power supply into the onboard control which is the same concept with STP-iXA2206/iXA3306 series. The pumping performance is improved by the newest developed revolutionary rotor design. This fully integrated product offers easy installation and small footprint as an all-in-one solution for all application tools.

Eliminates connection cable between pump and control unit.
Eliminates installation space and cost required by conventional rack type control unit.
Compact design results in easy installation and small foot print.
Highest pumping speed in the 8” TMP class, along with the STP-A1603.
32% reduced power consumption in the high gas flow area.
I/O Remote, RS232C, RS485, STP-Link are standard ports
Profibus and DeviceNet can be selected as options

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet flange	ISO-250F
Outlet port	KF-40
Purge port	KF-10
Water cooling fitting	PT1/4
Pumping speed
N₂	2,200 l/s
H₂	1,700 l/s
Compression ratio
N₂	> 10⁸
H₂	> 2.5 x 10⁴
Ultimate pressure	10^-6 Pa (10^-8 Torr)
Max. allowable backing pressure	400 Pa (3 Torr)
Max. nitrogen throughput	15,000 sccm
Rated speed	27,000
Starting time	7 min
Mounting position	Any
Water cooling flow	2 l/min^-1
Water cooling temperature	5 - 25°C
Pressure	0.3 MPa
Recommended purge gas flow	20 scm
Input voltage	200 to 240 VAC
Power consumption	1.5 kVA
Weight	61 kg

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards STP-iXR1606 Turbomolecular Vacuum Pump - NEW

P/N YT79-0Z-010 / YT790Z010  STP-iXR1606  ISO-200F
P/N YT79-0Z-070 / YT790Z070  STP-iXR1606  ISO-160F
P/N YT79-0Z-040 / YT790Z040  STP-iXR1606  ISO-250F
    YT79-0Z-020 / YT790Z020  STP-iXR1606  VG-200
    YT79-0Z-080 / YT790Z080  STP-iXR1606  VG-150
    YT79-0Z-110 / YT790Z110  STP-iXR1606  ISO-250F Profibus
    YT79-0Z-100 / YT790Z100  STP-iXR1606  ISO-200F Profibus
